AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

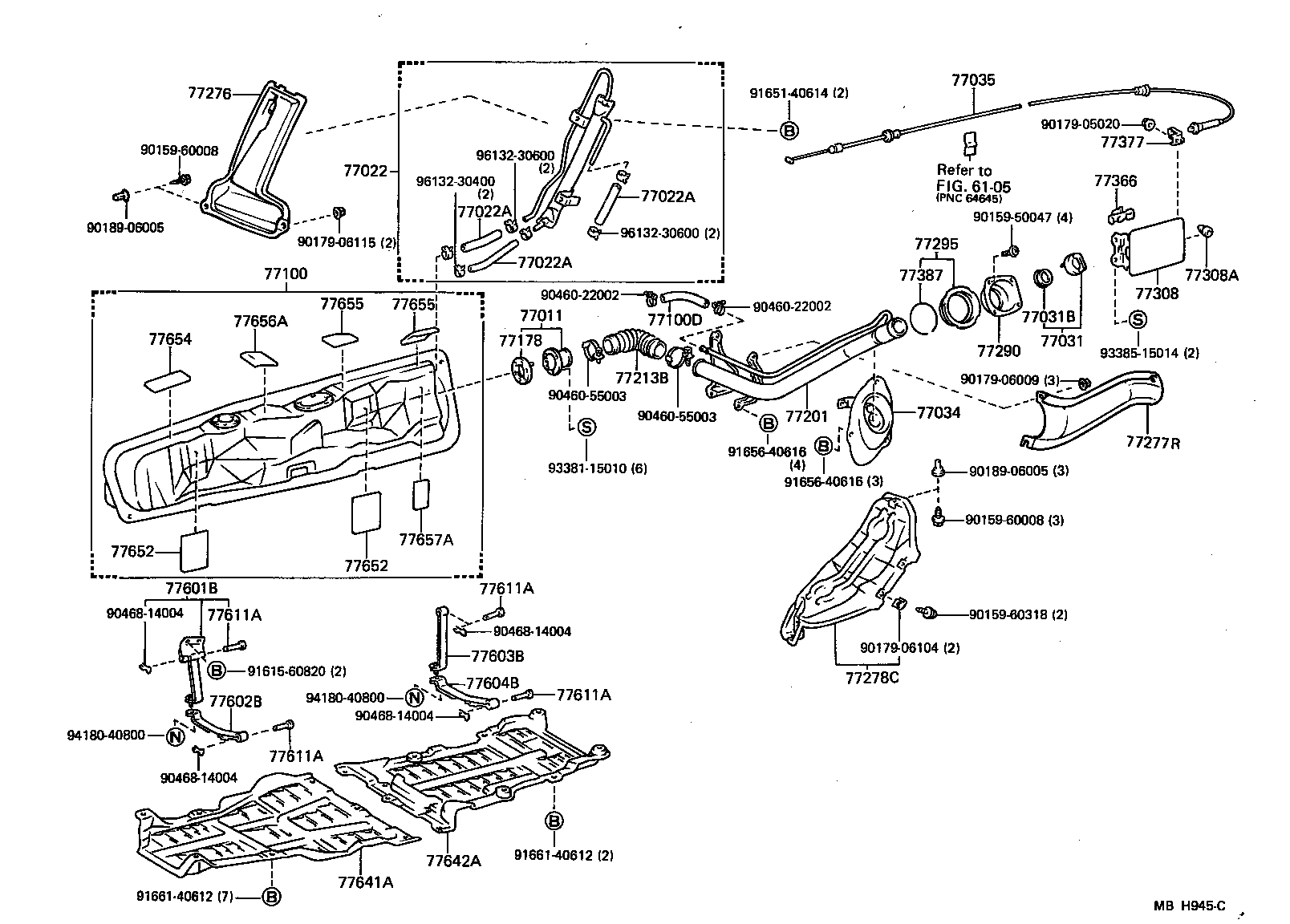

ILLUST NO. 1 OF 2(8412-8602)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-17010 |
AW11 |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-17011 |
AW11 |
1 | ||
| 77022-17010 |
AW11 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
2 | ||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
1 | ||
| 95332-06020 |
AW11 *H,L=140 |
1 | ||
| 95333-06014 |
AW11 *H,L=140 |
1 | ||
| 95332-06020 |
AW11 *H,L=120 |
1 | ||
| 95333-04020 |
AW11 *H,L=120 |
2 | ||
| 95332-06020 |
AW11 *H,L=150 |
1 | ||
| 95333-04012 |
AW11 *H,L=120 |
2 | ||
| 95333-06020 |
AW11 *H,L=140 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
2 | ||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
1 | ||
| 95332-06020 |
AW11 *H,L=140 |
1 | ||
| 95333-06014 |
AW11 *H,L=140 |
1 | ||
| 95332-06020 |
AW11 *H,L=120 |
1 | ||
| 95333-04020 |
AW11 *H,L=120 |
2 | ||
| 95332-06020 |
AW11 *H,L=150 |
1 | ||
| 95333-04012 |
AW11 *H,L=120 |
2 | ||
| 95333-06020 |
AW11 *H,L=140 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
2 | ||
| 95332-04020 |
AW11 *H,L=120,ID=4 |
1 | ||
| 95332-06020 |
AW11 *H,L=140 |
1 | ||
| 95333-06014 |
AW11 *H,L=140 |
1 | ||
| 95332-06020 |
AW11 *H,L=120 |
1 | ||
| 95333-04020 |
AW11 *H,L=120 |
2 | ||
| 95332-06020 |
AW11 *H,L=150 |
1 | ||
| 95333-04012 |
AW11 *H,L=120 |
2 | ||
| 95333-06020 |
AW11 *H,L=140 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AW11 |
1 | ||
| 77310-16010 |
AW11 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
AW11 |
1 | ||
| 77034 - SHIELD SUB-ASSY, FUEL TANK FILLER PIPE | ||||
| 77034-17010 |
AW11 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-17020 |
AW11 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19465 |
AW11 |
1 | ||
| 77001-19475 |
AW11 |
1 | ||
| 77001-19366 |
AW11 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22912 |
AW11 L=220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AW11 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-17020 |
AW11 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32010 |
AW11 L=248 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-17010 |
AW11 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-17010 |
AW11 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-17010 |
AW11 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-17010 |
AW11 |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-32010 |
AW11 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-32020 |
AW11 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05040 |
AW11 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AW11 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22030 |
AW11 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
AW11 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-17010 |
AW11 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-17010 |
AW11 |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-17010 |
AW11 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-17010 |
AW11 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AW11 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AW11 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AW11 |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AW11 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-17010 |
AW11 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-17010 |
AW11 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-17010 |
AW11 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-17010 |
AW11 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-17010 |
AW11 |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
AW11 |
3 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-17010 |
AW11 |
3 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-17010 |
AW11 |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90159-50047 | ||||
| 90159-60008 | ||||
| 90159-60318 | ||||
| 90179-05020 | ||||
| 90179-06009 | ||||
| 90179-06104 | ||||
| 90179-06115 | ||||
| 90189-06005 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90468-14004 | ||||
| 91615-60820 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 91661-40612 | ||||
| 93381-15010 | ||||
| 93385-15014 | ||||
| 94180-40800 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 6105 | ||||

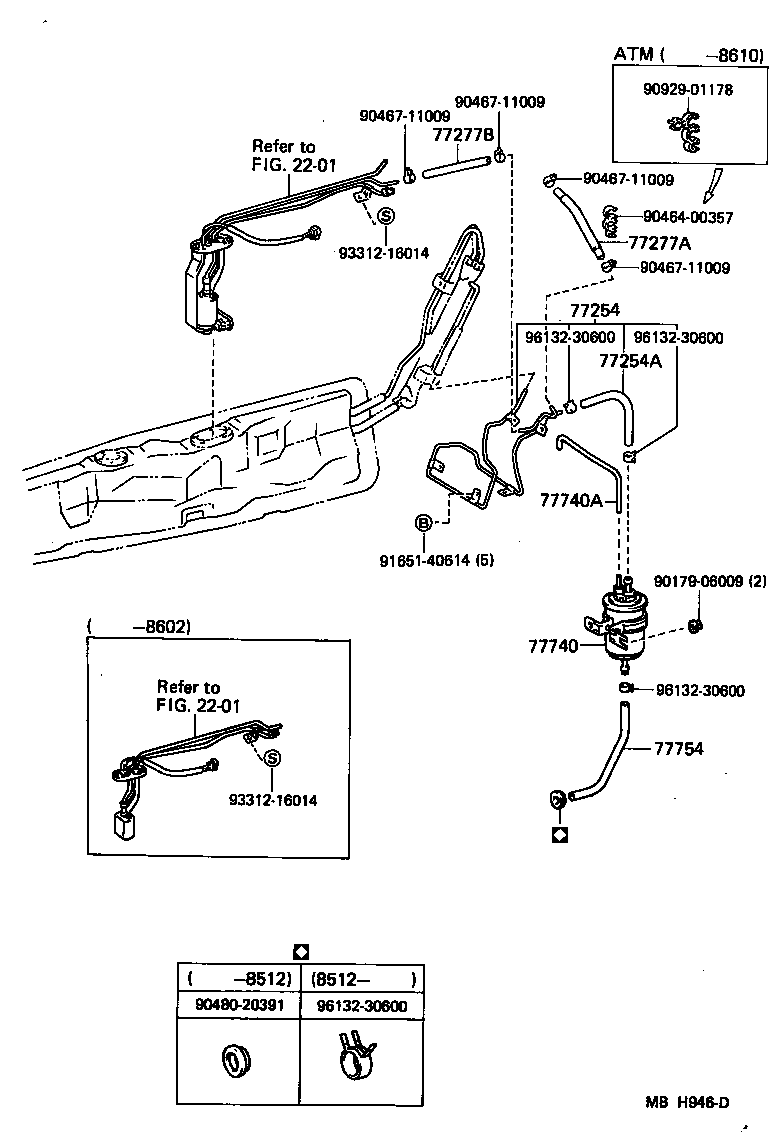

ILLUST NO. 2 OF 2(8412- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77028-17040 |
AW11 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
AW11 *H,L=280 |
1 | ||
| 95333-06030 |
AW11 *H,L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12046 |
AW11 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
AW11 *H,L=200 |
1 | ||
| 95332-06030 |
AW11 *H,L=200 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-17010 |
AW11 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19960 |
AW11 *H,L=600,MARK=#* |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-17010 |
AW11 |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90464-00357 | ||||
| 90467-11009 | ||||
| 90480-20391 | ||||
| 90929-01178 | ||||
| 91651-40614 | ||||
| 93312-16014 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2201 | ||||
