AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8412-8608)

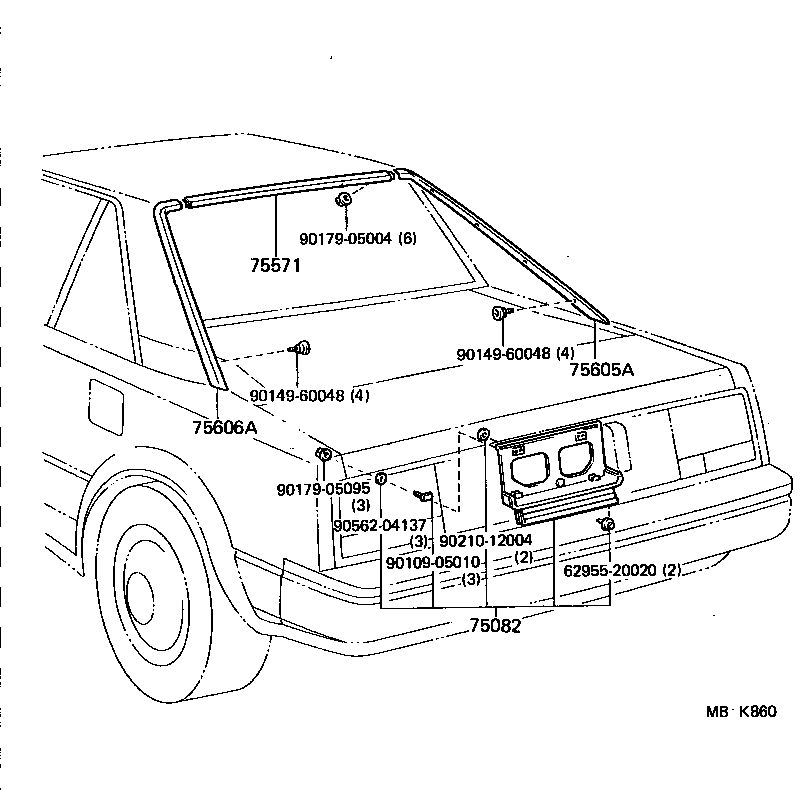

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-19315 |
AW11 |
1 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75507-19015 |
AW11 |
1 | ||
| 75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-19045 |
AW11 |
1 | ||
| 75605-17020 |
AW11 W(SPOILER) |
1 | ||
| 75605-17020 |
AW11 W/RR VISOR |
1 | ||
| 75605-19055 |
AW11 W/RR VISOR |
1 | ||
| 75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH | ||||
| 75606-17020 |
AW11 W(SPOILER) |
1 | ||
| 75606-19045 |
AW11 W/RR VISOR |
1 | ||
| 75606-19035 |
AW11 |
1 | ||
| 75606-17020 |
AW11 W/RR VISOR |
1 | ||
| Common parts | ||||
| 62955-20020 | ||||
| 90109-05010 | ||||
| 90149-60048 | ||||
| 90179-05004 | ||||
| 90179-05095 | ||||
| 90210-12004 | ||||
| 90562-04137 | ||||
(8608- )

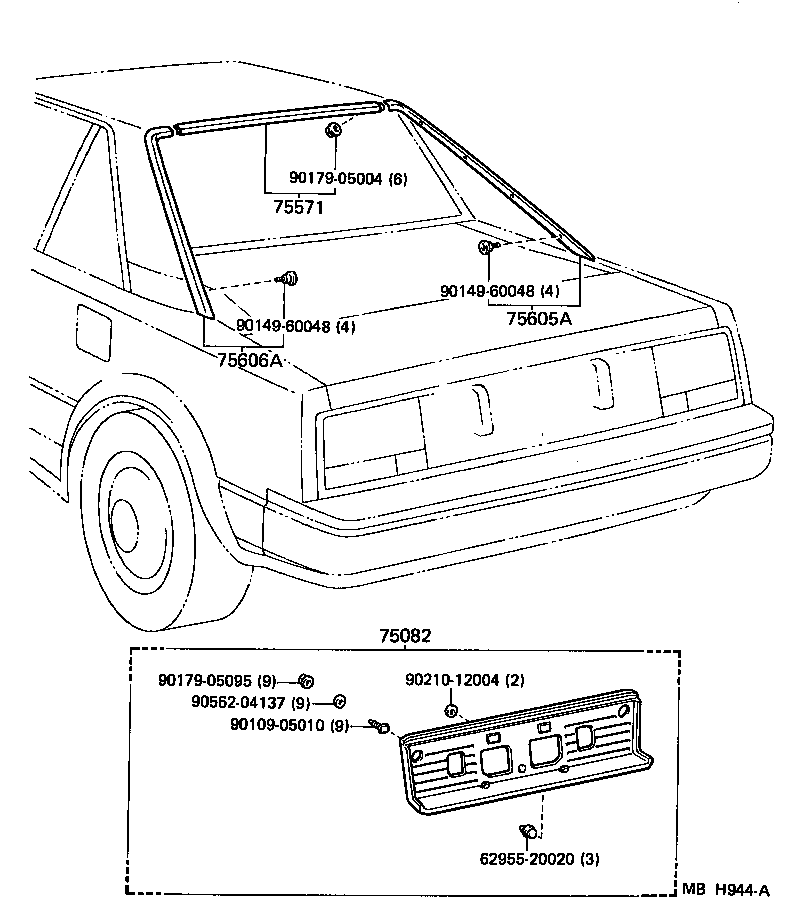

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER | ||||
| 75082-19315 |
AW11 |
1 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75507-19015 |
AW11 |
1 | ||
| 75605A - MOULDING SUB-ASSY, QUARTER OUTSIDE, RH | ||||
| 75605-19045 |
AW11 |
1 | ||
| 75605-17020 |
AW11 W(SPOILER) |
1 | ||
| 75605-17020 |
AW11 W/RR VISOR |
1 | ||
| 75605-19055 |
AW11 W/RR VISOR |
1 | ||
| 75606A - MOULDING SUB-ASSY, QUARTER OUTSIDE, LH | ||||
| 75606-17020 |
AW11 W(SPOILER) |
1 | ||
| 75606-19045 |
AW11 W/RR VISOR |
1 | ||
| 75606-19035 |
AW11 |
1 | ||
| 75606-17020 |
AW11 W/RR VISOR |
1 | ||
| Common parts | ||||
| 62955-20020 | ||||
| 90109-05010 | ||||
| 90149-60048 | ||||
| 90179-05004 | ||||
| 90179-05095 | ||||
| 90210-12004 | ||||
| 90562-04137 | ||||
