AW11L-WCMQFK (1984)

Toyota Mr2

Production Dec 1984 - Aug 1988
Engine 4AGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8412- )4AGELC

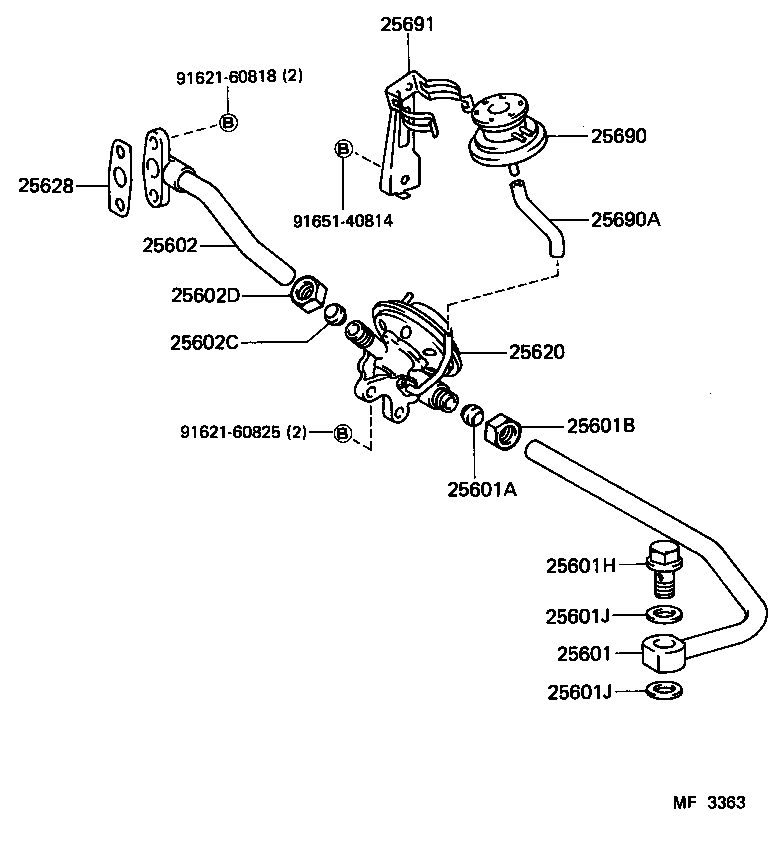

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25601H 25601J 25601J 25602 25602C 25602D 25620 25628 25690 25690A 25691 9162160818 9162160825 9165140814
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-16010

4AGELC..AW11

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14003

4AG#..AW11

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20007

4AG#..AW11

 1
25601H - BOLT, UNION(FOR EGR PIPE,NO.1)
90401-18013

4AGELC..AW11

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-18009

4AG#..AW11

 2
25601J - GASKET(FOR EGR PIPE, NO.1)
90430-18009

4AG#..AW11

 2
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-16020

4AGELC..AW11

 1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-14003

4AGELC..AW11

 1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-20007

4AGELC..AW11

 1
25620 - VALVE ASSY, EGR
25620-16030

4AGELC..AW11

 1
25628 - GASKET, EGR INLET
25628-16010

4AGELC..AW11

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-16010

4AGELC..AW11..5F

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-16010

4AGELC..AW11

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-16080

4AGELC..AW11

 1
Common parts
91621-60818
91621-60825
91651-40814
