AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8412- )4AGELC

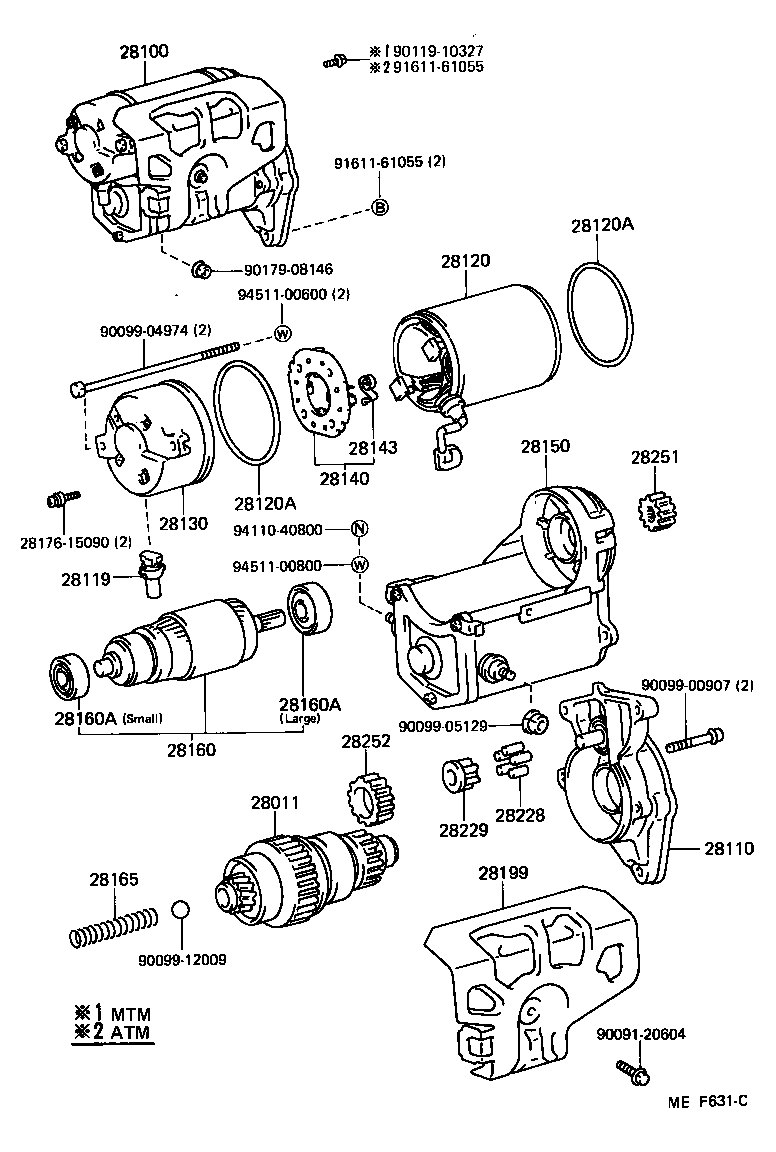

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-15150 |
4AGELC..AW11 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-15150 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-15090 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AG#..AW11 12V 1.4KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AG#..AW11 12V 1.4KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-15150 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AG#..AW11 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-15150 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
4AG#..AW11 12V 1.4KW,SMALL TYPE |
1 | ||
| 90099-10143 |
4AG#..AW11 12V 1.4KW,LARGE TYPE |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10144 |
4AG#..AW11 12V 1.4KW,SMALL TYPE |
1 | ||
| 90099-10143 |
4AG#..AW11 12V 1.4KW,LARGE TYPE |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28170-15150 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28199-15150 |
4AGELC..AW11 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
4AG#..AW11 12V 1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
4AG#..AW11 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
4AG#..AW11 12V 1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90091-20604 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10327 | ||||
| 90179-08146 | ||||
| 91611-61055 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
