AW11L-WCMQFK (1984)

Toyota Mr2

Production Dec 1984 - Aug 1988
Engine 4AGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8412- )

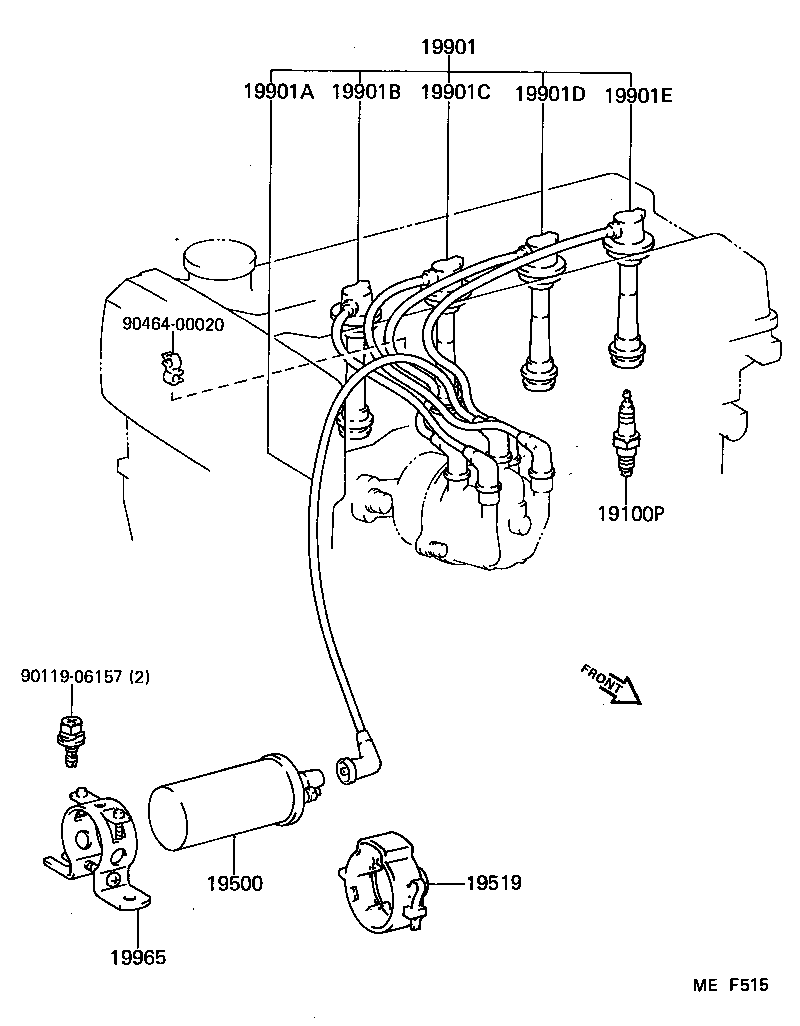

Click highlighted areas on diagram

diagram 19100P 19500 19519 19901 19901A 19901B 19901C 19901D 19901E 19965 9011906157 9046400020
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01121

4AGELC..AW11

PQ16R,PQ16R

 4
19500 - COIL ASSY, IGNITION
90919-02113

4AG#..AW11

 1
19519 - COVER, IGNITION COIL
19519-28020

4AG#..AW11

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21368

4AGELC..AW11

 1
19901A - CORD, COIL RESISTIVE
90919-13243

4AGELC..AW11

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12602

4AGELC..AW11

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12603

4AGELC..AW11

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12604

4AGELC..AW11

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12605

4AGELC..AW11

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03098

4AGELC..AW11

 1
Common parts
90119-06157
90464-00020
