AW11L-WCMQFK (1984)
Toyota Mr2
Production
Dec 1984
-
Aug 1988
Engine
4AGELC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8412- )4AGELC

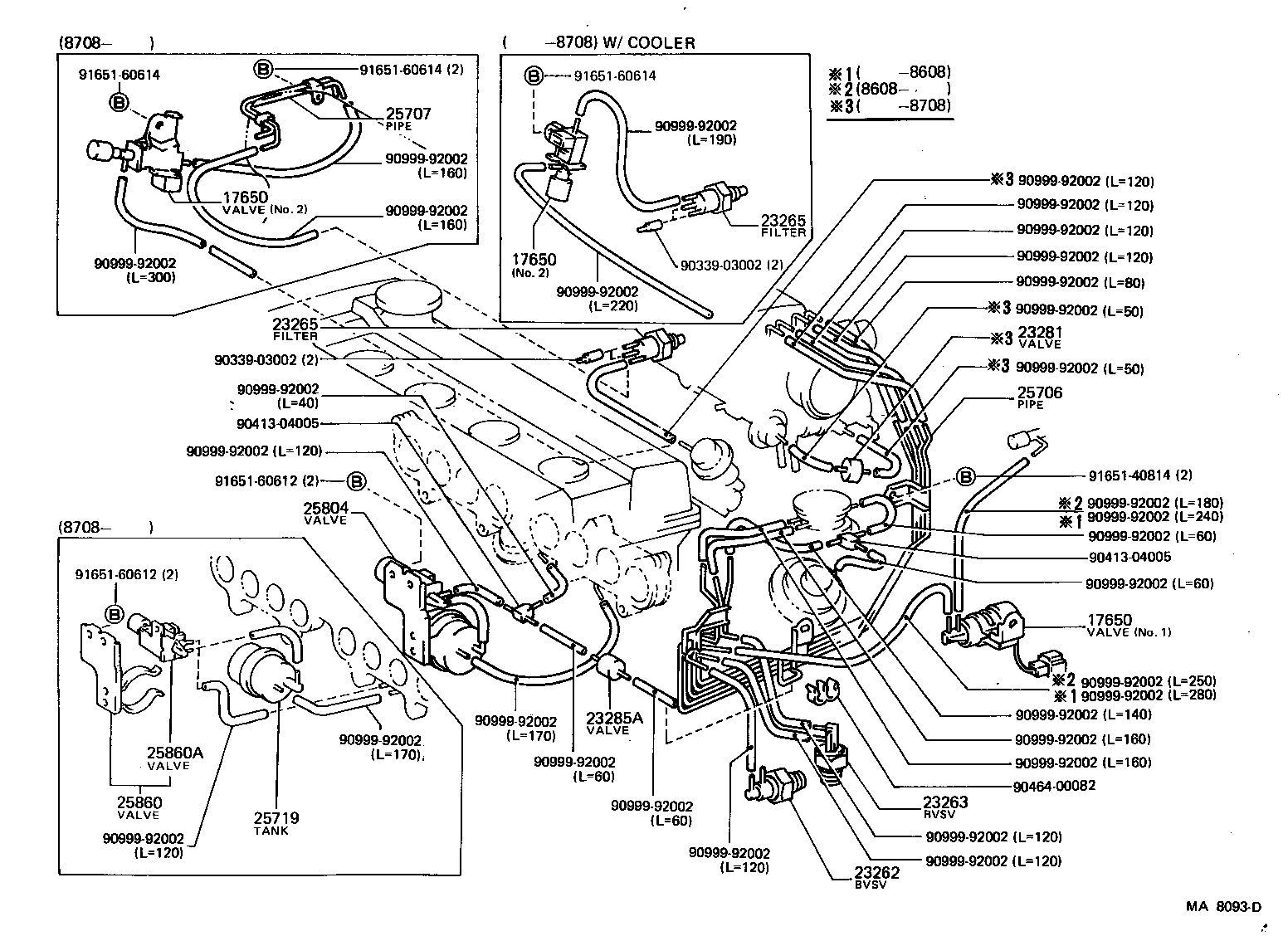

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-16080 |
4AGELC..AW11 |
1 | ||
| 89570-16100 |
4AGELC..AW11 W/COOLER |
1 | ||
| 25860-16090 |
4AGELC..AW11 NO.2 |
1 | ||
| 25860-16030 |
4AGELC..AW11 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-16080 |
4AGELC..AW11 |
1 | ||
| 89570-16100 |
4AGELC..AW11 W/COOLER |
1 | ||
| 25860-16090 |
4AGELC..AW11 NO.2 |
1 | ||
| 25860-16030 |
4AGELC..AW11 NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-16080 |
4AGELC..AW11 |
1 | ||
| 89570-16100 |
4AGELC..AW11 W/COOLER |
1 | ||
| 25860-16090 |
4AGELC..AW11 NO.2 |
1 | ||
| 25860-16030 |
4AGELC..AW11 NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
4AG#..AW11 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05047 |
4AGELC..AW11 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4AGELC..AW11 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4AGELC..AW11 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4AGELC..AW11 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4AGELC..AW11 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16110 |
4AGELC..AW11 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-16010 |
4AGELC..AW11 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
(8412- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
