AW11L-WCMQFK (1984)
Toyota Mr2
ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17914 - DUCT, COOL AIR INTAKE, NO.4 | ||||
| 53207-17010 |
4AGELC..AW11 |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90183-05031 | ||||
| 90467-07041 | ||||
| 90480-20017 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93567-55012 | ||||
| 94180-40600 | ||||

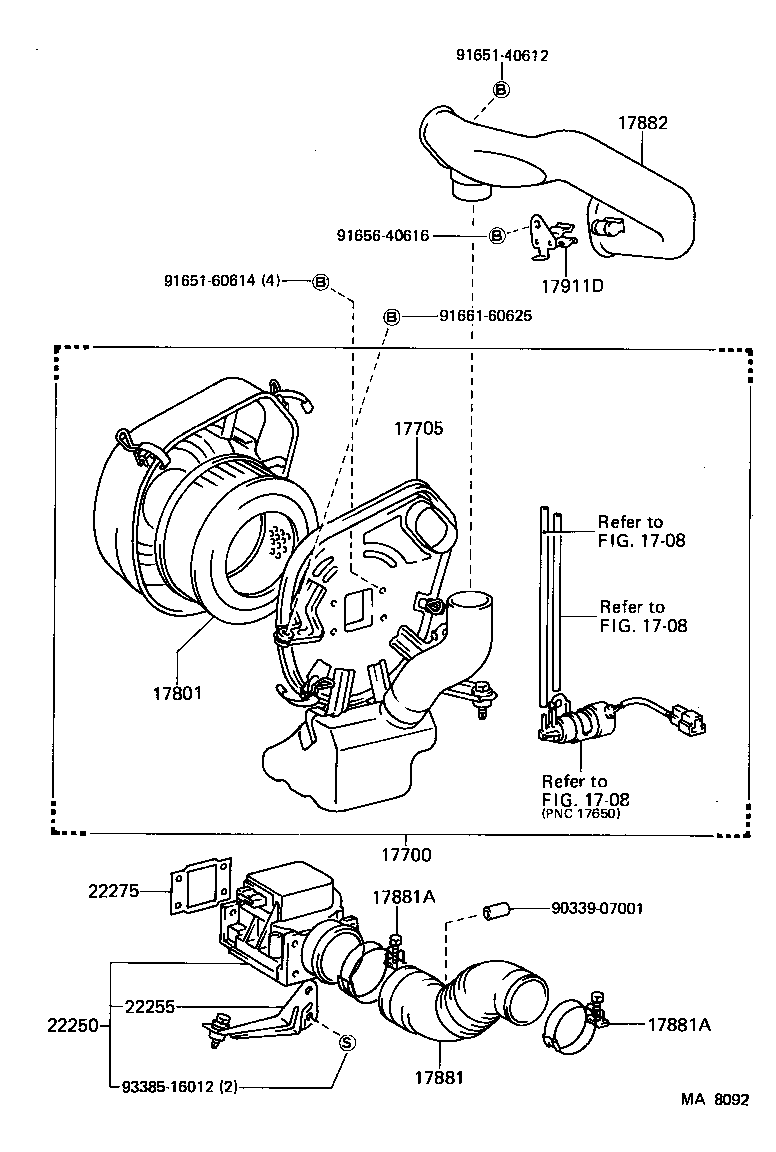

(8412-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16060 |
4AGELC..AW11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16040 |
4AGELC..AW11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-45020 |
4AGELC..AW11 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16100 |
4AGELC..AW11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
4AGELC..AW11 THROTTLE BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
4AGELC..AW11 THROTTLE BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16080 |
4AGELC..AW11 |
1 | ||
| 17882-16060 |
4AGELC..AW11 |
1 | ||
| 17911D - BRACKET, COOL AIR INTAKE HOSE, NO.1 | ||||
| 17962-16010 |
4AGELC..AW11 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-16020 |
4AGELC..AW11 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-16010 |
4AGELC..AW11 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-34011 |
4AGELC..AW11 |
1 | ||
| Common parts | ||||
| 90339-07001 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 91656-40616 | ||||
| 91661-60625 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 1 OF 2(8608- )4AGELC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16060 |
4AGELC..AW11 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16040 |
4AGELC..AW11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-45020 |
4AGELC..AW11 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 53206-17010 |
4AGELC..AW11 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-16100 |
4AGELC..AW11 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
4AGELC..AW11 THROTTLE BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
4AGELC..AW11 THROTTLE BODY SIDE |
1 | ||
| 90460-01040 |
4AG#..AW11 AIR CLEANER SIDE |
1 | ||
| 96111-10800 |
4AGELC..AW11 AIR FLOW METER SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 BODY SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-16080 |
4AGELC..AW11 |
1 | ||
| 17882-16060 |
4AGELC..AW11 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
4AG#..AW11 THROTTLE BODY SIDE |
1 | ||
| 96111-10830 |
4AG#..AW11 AIR FLOW METER SIDE |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-16020 |
4AGELC..AW11 |
1 | ||
| 22255 - BRACKET, AIR FLOW METER | ||||
| 22255-16010 |
4AGELC..AW11 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90339-07001 | ||||
| 90480-20017 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 91665-40835 | ||||
