AW11L-WCMQFK (1984)

Toyota Mr2

Production Dec 1984 - Aug 1988
Engine 4AGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8412- )4AG#..5F

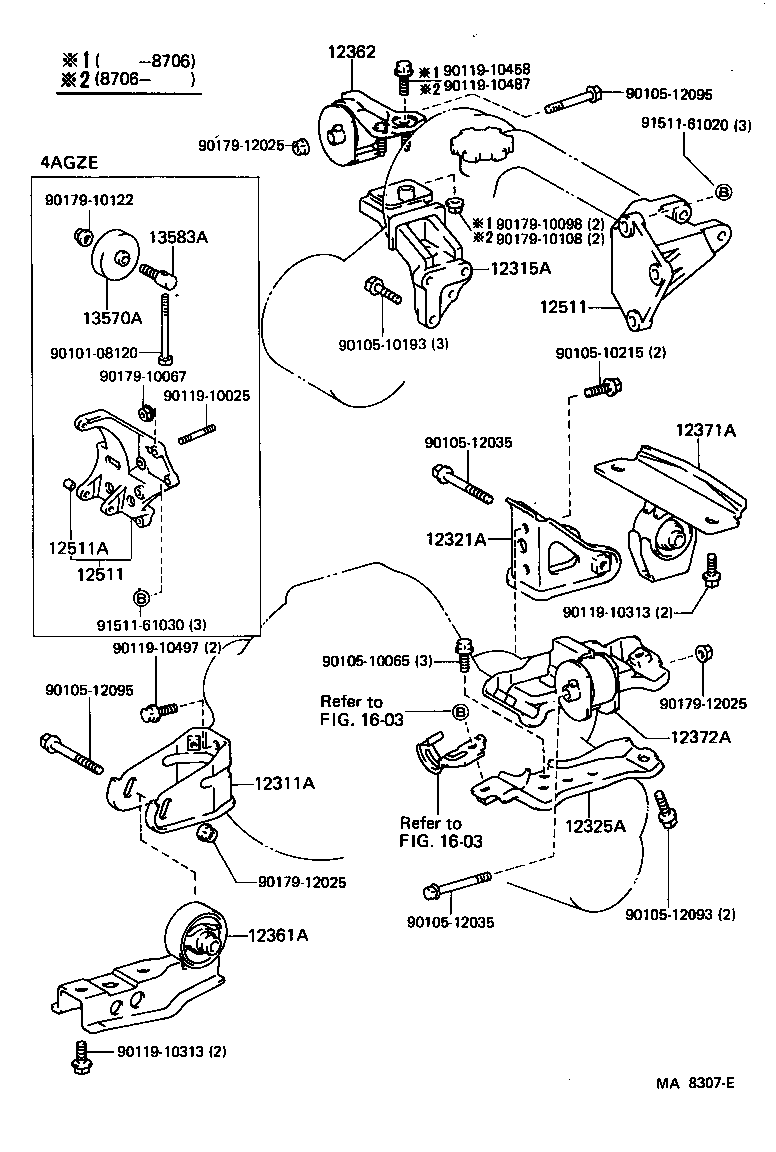

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12361A 12362 12371A 12372A 12511 12511 12511A 13570A 13583A 1603 1603 9010108120 9010510065 9010510193 9010510215 9010512035 9010512035 9010512093 9010512095 9010512095 9011910025 9011910313 9011910313 9011910458 9011910487 9011910497 9017910067 9017910098 9017910108 9017910122 9017912025 9017912025 9017912025 9151161020 9151161030
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15100

4AGELC..AW11

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-16010

4AGELC..AW11

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15030

4AGELC..AW11..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15030

4AGELC..AW11..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15110

4AGELC..AW11

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15061

4AGELC..AW11..5F

 1
12362-16030

4AGELC..AW11..5F

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15141

4AGELC..AW11..5F

 1
12371-15140

4AGELC..AW11

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15070

4AGELC..AW11..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16030

4AGELC..AW11

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-16030

4AGELC..AW11

 1
Common parts
90101-08120
90105-10065
90105-10193
90105-10215
90105-12035
90105-12093
90105-12095
90119-10025
90119-10313
90119-10458
90119-10487
90119-10497
90179-10067
90179-10098
90179-10108
90179-10122
90179-12025
91511-61020
91511-61030
Linked diagrams
1603
