AW11L-WCMQFA (1984)

Toyota Mr2

Production Dec 1984 - Dec 1989
Engine 4AGELC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8412-8608)

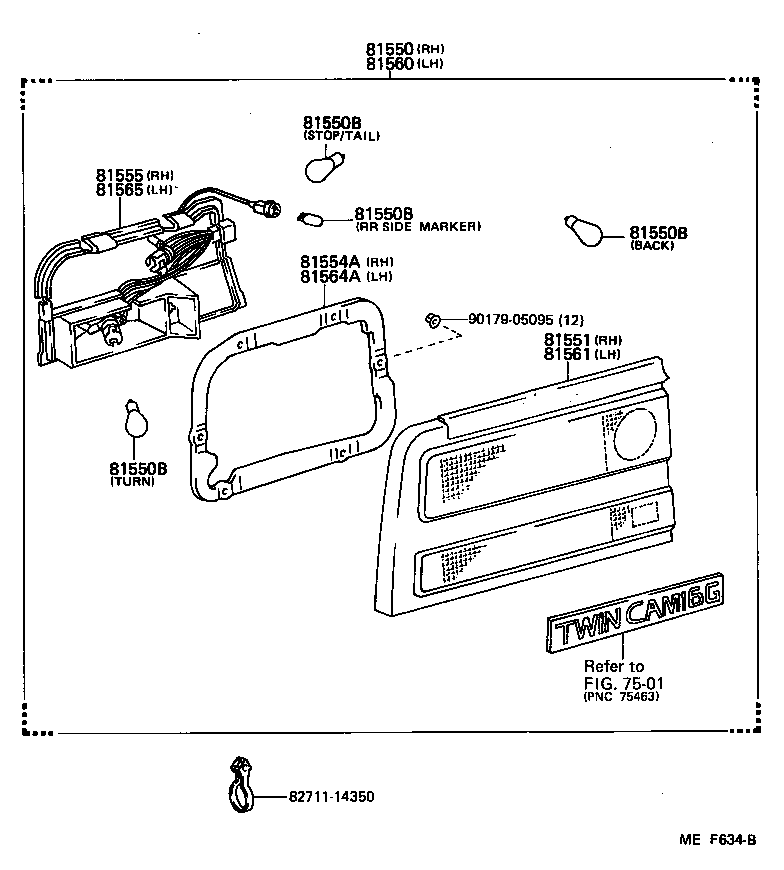

Click highlighted areas on diagram

diagram 7501 81550 81550B 81550B 81550B 81550B 81551 81554A 81555 81560 81561 81564A 81565 8271114350 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17031

AW11

 1
81550-80222

AW11

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17010

AW11

 1
81551-17040

AW11

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-17010

AW11

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-17030

AW11

 1
81555-17031

AW11

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80227

AW11..USA

 1
81560-17031

AW11..USA

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17010

AW11..USA

 1
81561-17011

AW11..USA

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-17010

AW11

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-17030

AW11..USA

 1
81565-17031

AW11..USA

 1
Common parts
82711-14350
90179-05095
Linked diagrams
7501

(8608- )

Click highlighted areas on diagram

diagram 7501 8111916100 81550 81550B 81550B 81550B 81550B 81550B 81551 81551A 81552 81554A 81554B 81555A 8155820720 81560 81561 81561A 81562 81564A 81564B 81565A 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-17031

AW11

 1
81550-80222

AW11

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11075

AW11

12V 7.5W,12V 7.5W(LICENSE)

 2
99132-11270

AW11

12V 27W

 4
99132-11270

AW11

12V 27W,12V 27W(TURN & BACK)

 4
90981-11020

AW11

12V 3.8W,12V 3.8W(RR SIDE MARKER)

 2
99132-11075

AW11

12V 7.5W

 2
99132-21270

AW11

12V 27/8W,12V 27/8W(STOP/TAIL)

 2
99132-21270

AW11

12V 27/8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-17010

AW11

 1
81551-17040

AW11

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81556-17040

AW11

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-17040

AW11

 1
81554A - GASKET, REAR COMBINATION LAMP BODY, NO.1 RH
81554-17010

AW11

 1
81554B - GASKET, REAR COMBINATION LAMP BODY, NO.2 RH
81554-17040

AW11

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81275-12240

AW11

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80227

AW11..USA

 1
81560-17031

AW11..USA

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-17010

AW11..USA

 1
81561-17011

AW11..USA

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81566-17011

AW11

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-17040

AW11

 1
81564A - GASKET, REAR COMBINATION LAMP BODY, NO.1 LH
81554-17010

AW11

 1
81564B - GASKET, REAR COMBINATION LAMP BODY, NO.2 LH
81554-17040

AW11

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81275-12240

AW11

 1
Common parts
81119-16100
81558-20720
90179-05095
Linked diagrams
7501
