JPD20L-CEDSSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

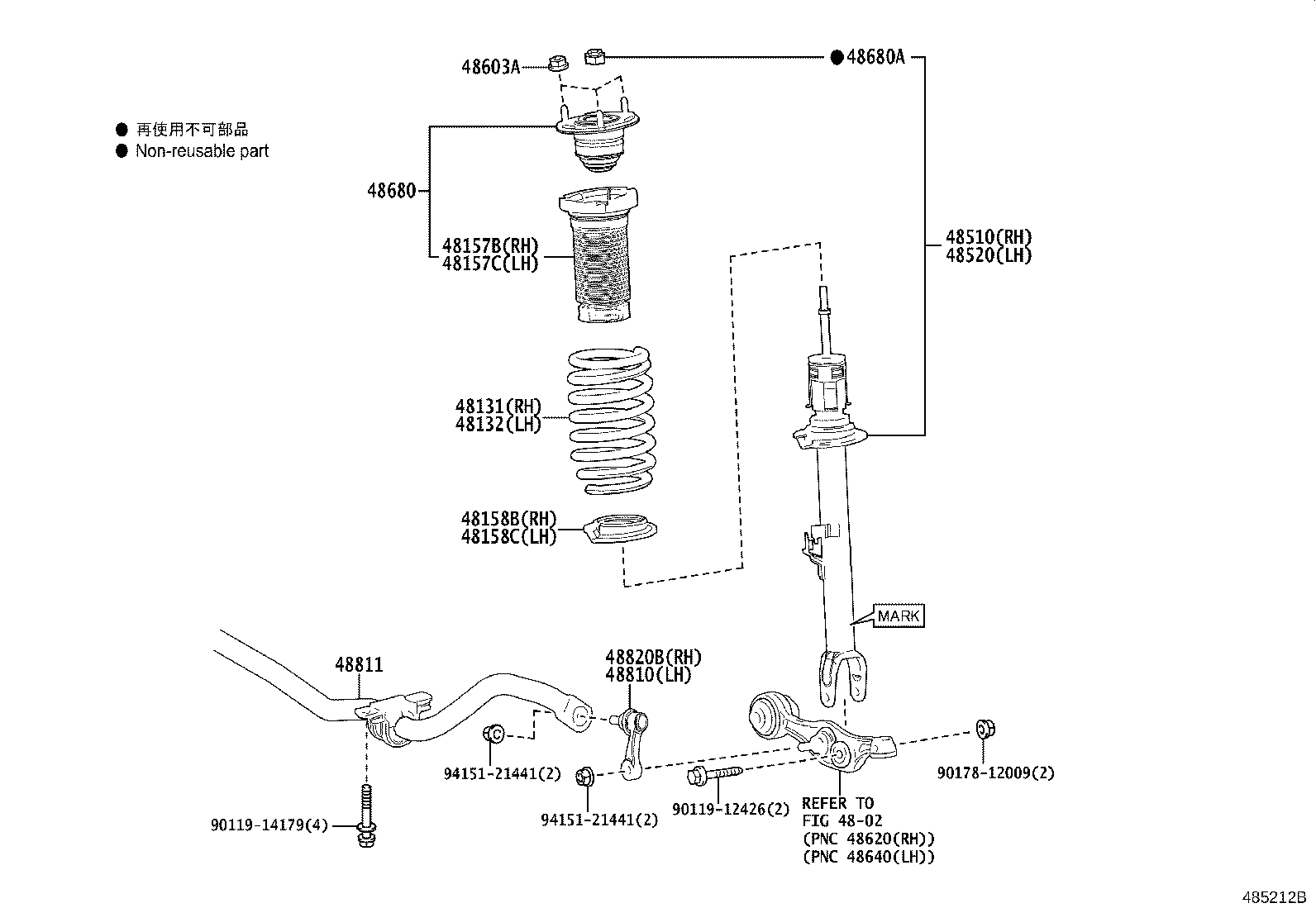

Click highlighted areas on diagram

diagram 4802 48131 48132 48157B 48157C 48158B 48158C 48510 48520 48603A 48680 48680A 48810 48811 48820B 9011912426 9011914179 9017812009 9415121441 9415121441
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-62020

JPD20

 1
48132 - SPRING, FRONT COIL, LH
48131-62020

JPD20

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-50070

JPD20

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-50080

JPD20

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

JPD20

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

JPD20

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-69755

JPD20

MARK 48510-62020

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-69235

JPD20

MARK 48520-62020

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-10033

JPD20

 6
48680 - SUPPORT ASSY, FRONT SUSPENSION
48680-62020

JPD20

LH

 1
48680-62010

JPD20

RH

 1
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
90177-12002

JPD20

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-50040

JPD20

 1
48811 - BAR, STABILIZER, FRONT
48804-62010

JPD20

 1
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-50050

JPD20

 1
Common parts
90119-12426
90119-14179
90178-12009
94151-21441
Linked diagrams
4802
