JPD20L-CEDHSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2011- )

Click highlighted areas on diagram

FC BATTERY

diagram 6401 6401 821H4C 8401 8401 8401 8401 9011908C69 9017808021 9017808021 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9046707215 9046707215 9046707215 9167380620 9167380620 G3834 G9209C G9289F G928AA G928BA G9295B G92D2A G92D4A G92F4A G92P6A G92QAA G92QBA G92QCA
Part # Description Qty Price
821H4C - WIRE, SOCKET INVERTER
821H4-62050

JPD20

AC INVERTER OUTPUT-120V/1500W

 1
G3834 - GRIP, SERVICE PLUG
G3834-47050

JPD20

 1
G9209C - DUCT SUB-ASSY, EV BATTERY
G9209-11010

JPD20

 1
G9289F - LABEL, BATTERY CAUTION, NO.3
82685-47110

JPD20

 1
G928AA - BRACKET, EV BATTERY, RH
G928A-11010

JPD20

 1
G928A-62010

JPD20

AC INVERTER OUTPUT-120V/1500W

 1
G928BA - BRACKET, EV BATTERY, LH
G928B-62010

JPD20

AC INVERTER OUTPUT-120V/1500W

 1
G928B-11010

JPD20

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

JPD20

 1
G92D2A - DUCT, EV BATTERY INTAKE, NO.2
G92D2-62010

JPD20

 1
G92D4A - DUCT, EV BATTERY INTAKE, NO.4
G92D4-62010

JPD20

 1
G92F4A - DUCT, EV BATTERY EXHAUST, NO.4
G92F4-11011

JPD20

 1
G92P6A - COVER, EV BATTERY CLAMP, NO.2
G92P6-11010

JPD20

 1
G92QAA - PANEL, EV BATTERY SHIELD, NO.8
G92QA-11010

JPD20

 1
G92QBA - PANEL, EV BATTERY SHIELD, NO.9
G92QB-11010

JPD20

 1
G92QCA - PANEL, EV BATTERY SHIELD, NO.10
G92QC-62010

JPD20

 1
Common parts
90119-08C69
90178-08021
90179-06274
90467-07215
91673-80620
Linked diagrams
6401
8401

(2011- )

Click highlighted areas on diagram

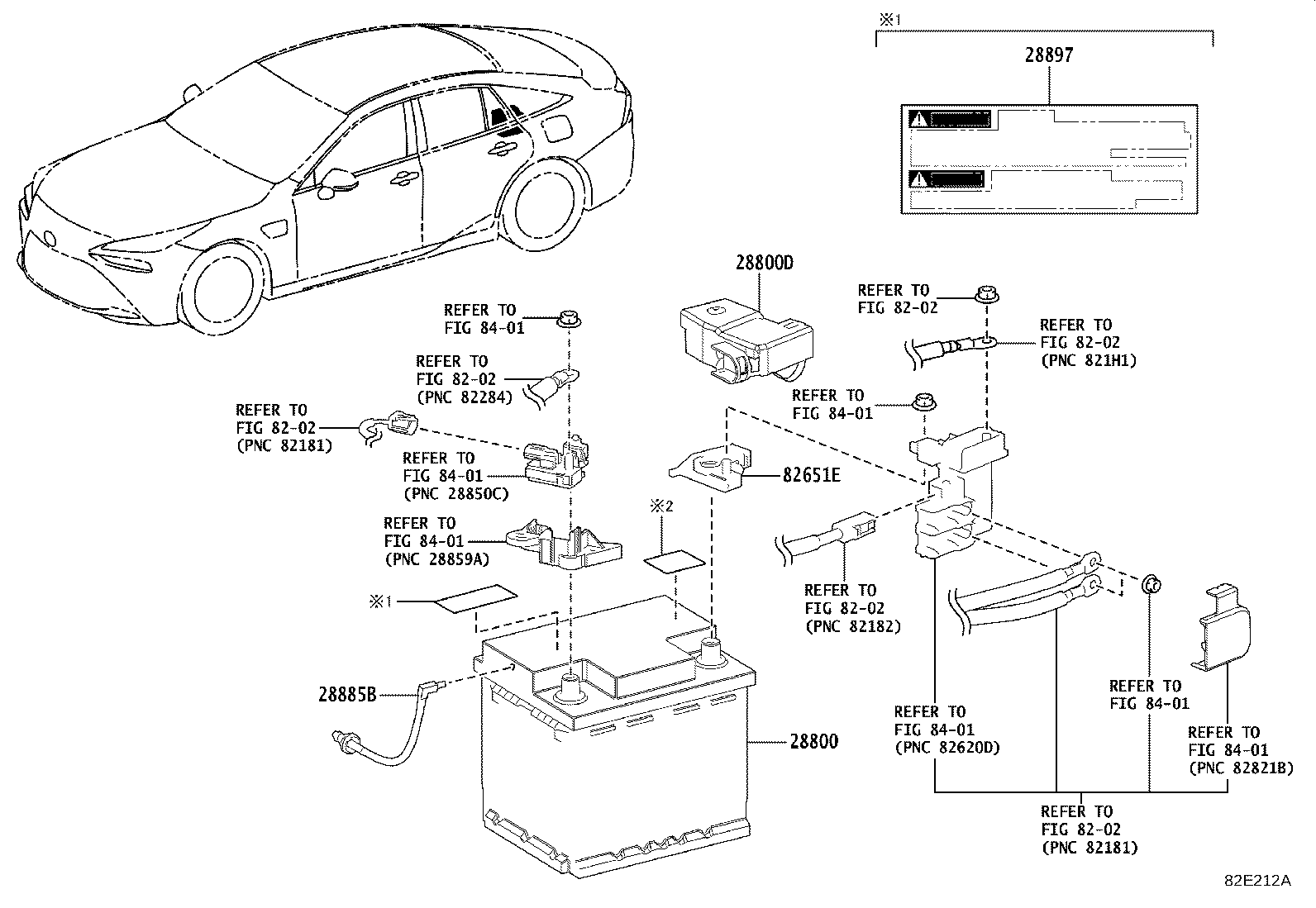

12V BATTERY

diagram 28800 28800D 28885B 28897 8202 8202 8202 8202 8202 8202 82651E 8401 8401 8401 8401 8401 8401 8401
Part # Description Qty Price
28800 - BATTERY
28800-25030

3KM..JPD20

LN2

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-62030

3KM..JPD20

 1
28885B - HOSE, BATTERY
28885-77030

3KM..JPD20

 1
28897 - PLATE, BATTERY CAUTION
28897-31021

3KM..JPD20

CANADA SPEC

 1
82651E - BLOCK, TERMINAL
82651-62010

JPD20

 1
Linked diagrams
8202
8401

ILLUST NO. 2 OF 2(2011- )

Click highlighted areas on diagram

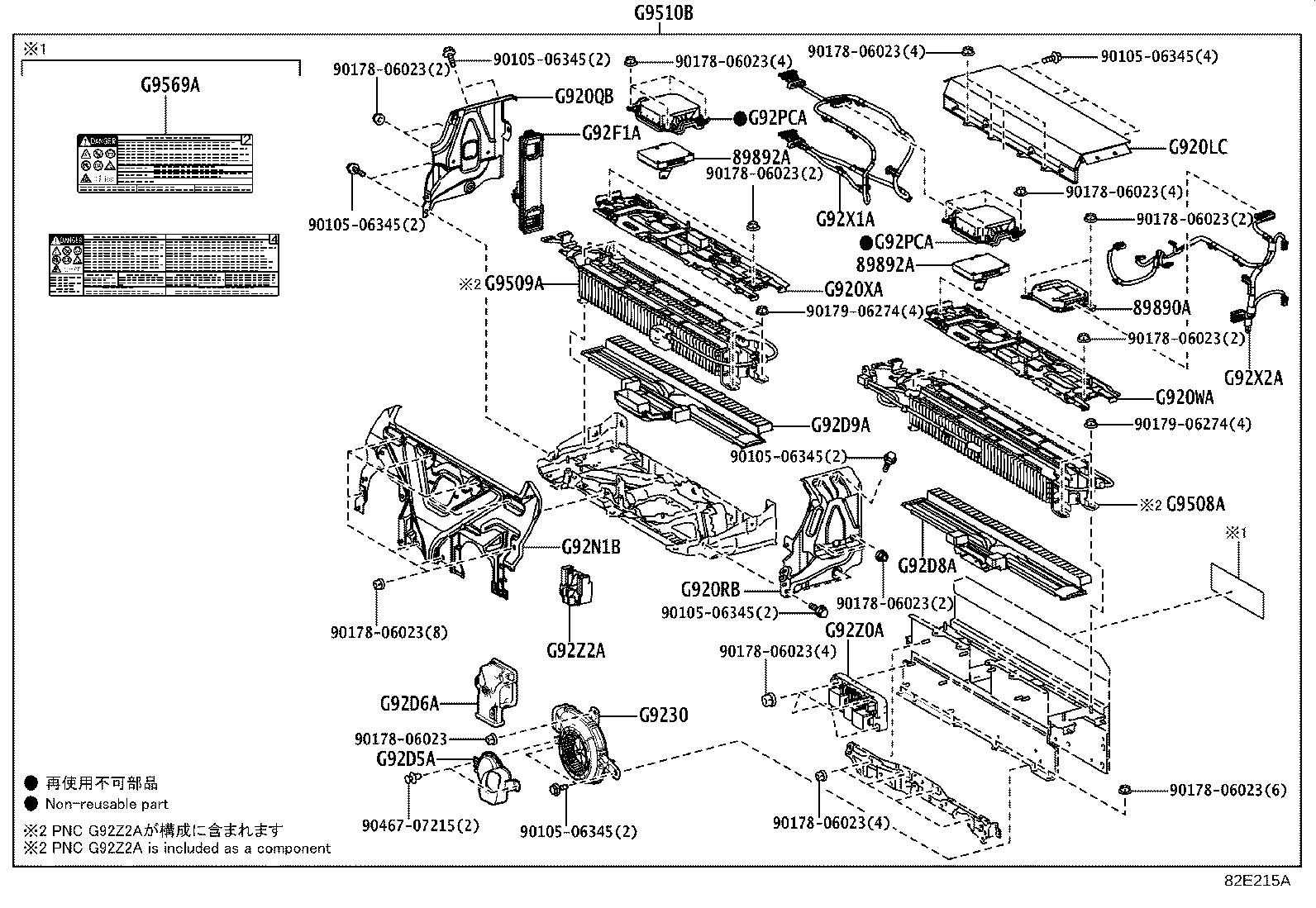

FC BATTERY

diagram 89890A 89892A 89892A 9010506345 9010506345 9010506345 9010506345 9010506345 9010506345 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017906274 9017906274 9046707215 G920LC G920QB G920RB G920WA G920XA G9230 G92D5A G92D6A G92D8A G92D9A G92F1A G92N1B G92PCA G92PCA G92X1A G92X2A G92Z0A G92Z2A G9508A G9509A G9510B G9569A
Part # Description Qty Price
89890A - COMPUTER ASSY, BATTERY
89890-62010

JPD20

DENSO

 1
89892A - SENSOR, BATTERY VOLTAGE
89892-11010

JPD20

 2
89892A - SENSOR, BATTERY VOLTAGE
89892-11010

JPD20

 2
G920LC - COVER SUB-ASSY, EV BATTERY, UPPER NO.1
G920L-11010

JPD20

 1
G920QB - SHIELD SUB-ASSY, EV BATTERY, NO.1
G920Q-11010

JPD20

 1
G920RB - SHIELD SUB-ASSY, EV BATTERY, NO.2
G920R-11010

JPD20

 1
G920WA - SHIELD SUB-ASSY, EV BATTERY, NO.7
G920W-11010

JPD20

 1
G920XA - SHIELD SUB-ASSY, EV BATTERY, NO.8
G920W-11020

JPD20

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-11010

JPD20

 1
G92D5A - DUCT, EV BATTERY INTAKE, NO.5
G92D5-11010

JPD20

 1
G92D6A - DUCT, EV BATTERY INTAKE, NO.6
G92D6-11010

JPD20

 1
G92D8A - DUCT, EV BATTERY INTAKE, NO.8
G92D8-11010

JPD20

 1
G92D9A - DUCT, EV BATTERY INTAKE, NO.9
G92D9-11010

JPD20

 1
G92F1A - DUCT, EV BATTERY EXHAUST, NO.1
G92F1-11010

JPD20

 1
G92N1B - PANEL, EV BATTERY UPPER COVER
G92N1-11010

JPD20

 1
G92PCA - PROTECTOR, EV BATTERY, NO.1
G92PC-11010

JPD20

 2
G92PCA - PROTECTOR, EV BATTERY, NO.1
G92PC-11010

JPD20

 2
G92X1A - WIRE, EV BATTERY PACK, NO.1
G92X1-11010

JPD20

 1
G92X2A - WIRE, EV BATTERY PACK, NO.2
G92X2-62010

JPD20

 1
G92Z0A - BLOCK ASSY, EV BATTERY JUNCTION, NO.1
G92Z0-47110

JPD20

 1
G92Z2A - BLOCK, EV BATTERY TERMINAL
G92Z2-47070

JPD20

 1
G9508A - STACK SUB-ASSY, EV SUPPLY, NO.1
G9508-62010

JPD20

 1
G9509A - STACK SUB-ASSY, EV SUPPLY, NO.2
G9509-62010

JPD20

 1
G9510B - BATTERY ASSY, EV SUPPLY
G9510-62020

JPD20

 1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47130

JPD20

CANADA SPEC&HIGH VOLTAGE BATTERY-WITH

 1
G9569-47110

JPD20

 1
Common parts
90105-06345
90178-06023
90179-06274
90467-07215
