JPD20L-CEDHSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

Click highlighted areas on diagram

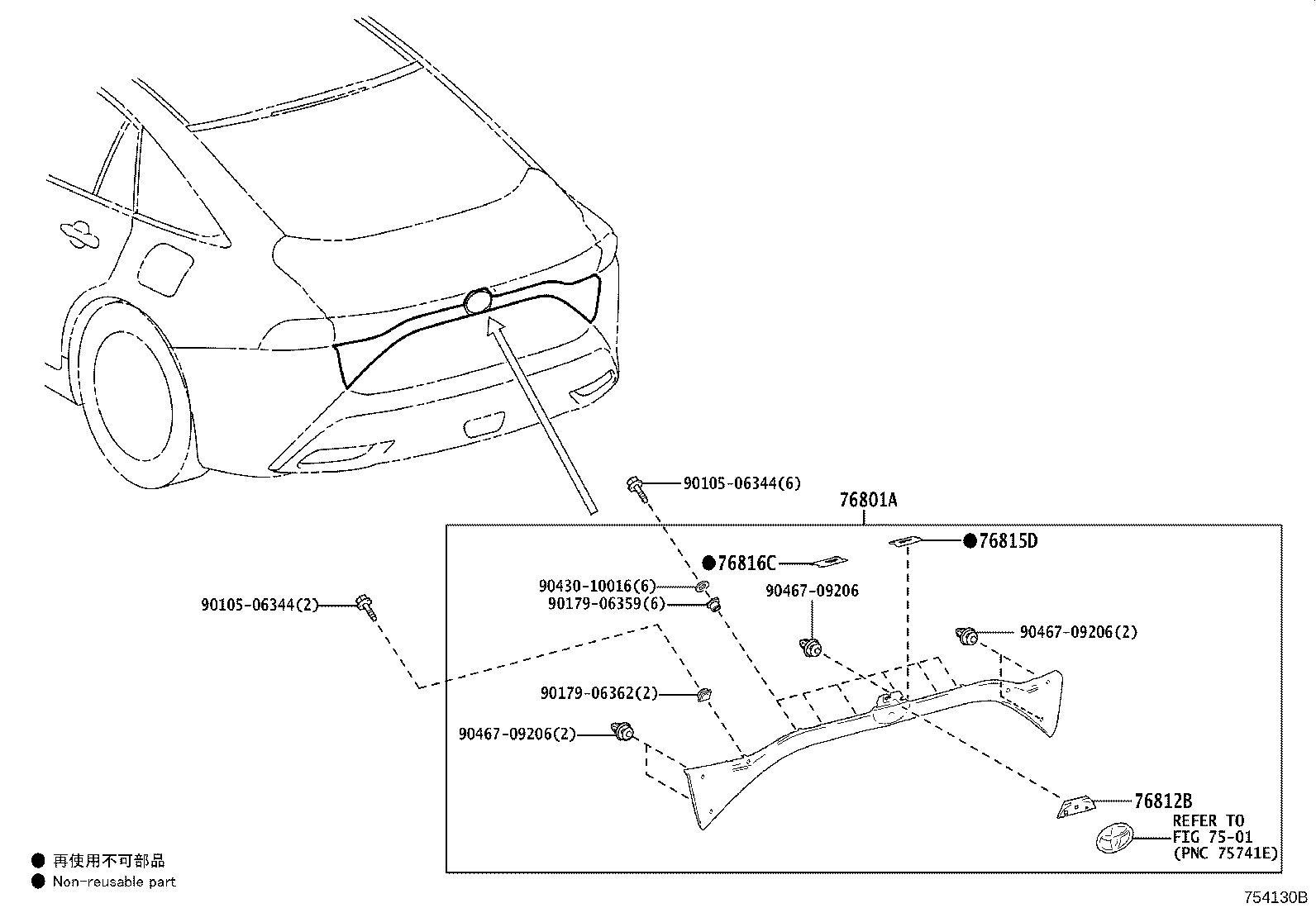

diagram 7501 76801A 76812B 76815D 76816C 9010506344 9010506344 9017906359 9017906362 9043010016 9046709206 9046709206 9046709206
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-62020A2

JPD20

NO PAINT REQ.,PRECIOUS WHITE PEARL,090

 1
76801-62020B2

JPD20

NO PAINT REQ.,PRECIOUS METAL,1L5

 1
76801-62020J1

JPD20

NO PAINT REQ.,FORCE BLUE MULTIPLE LAYER,8Y7

 1
76801-62020D0

JPD20

NO PAINT REQ.,EMOTIONAL RED 2,3U5

 1
76801-62020C0

JPD20

NO PAINT REQ.,BLACK,202

 1
76812B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76812-62010

JPD20

 1
76815D - MOULDING, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, LOW
76815-62010

JPD20

 1
76816C - MOULDING, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, LOW
76816-62010

JPD20

 1
Common parts
90105-06344
90179-06359
90179-06362
90430-10016
90467-09206
Linked diagrams
7501
