JPD20L-CEDHSA (2020)
Toyota Mirai

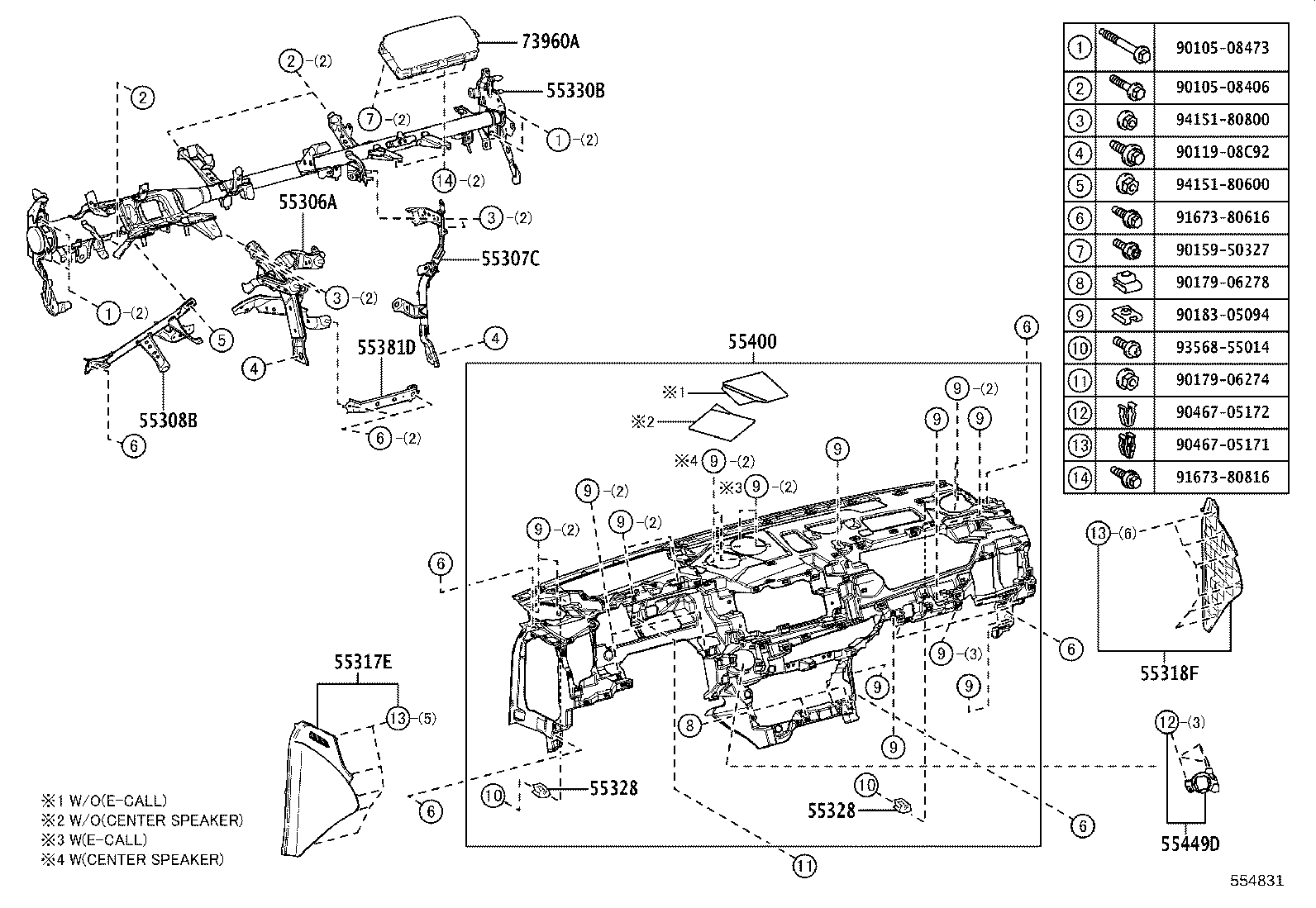

ILLUST NO. 1 OF 2(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-62040 |
JPD20 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-62040 |
JPD20 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-62020 |
JPD20 |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-62080C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-62090C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
JPD20 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
JPD20 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-62040 |
JPD20 |
1 | ||
| 55381D - BRACKET, INSTRUMENT PANEL SHIFT MOUNTING, NO.1 | ||||
| 55381-62020 |
JPD20 |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-62050 |
JPD20..H,S |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-62040 |
JPD20 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-62040 |
JPD20 |
1 | ||
| Common parts | ||||
| 90105-08406 | ||||
| 90105-08473 | ||||
| 90119-08C92 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||

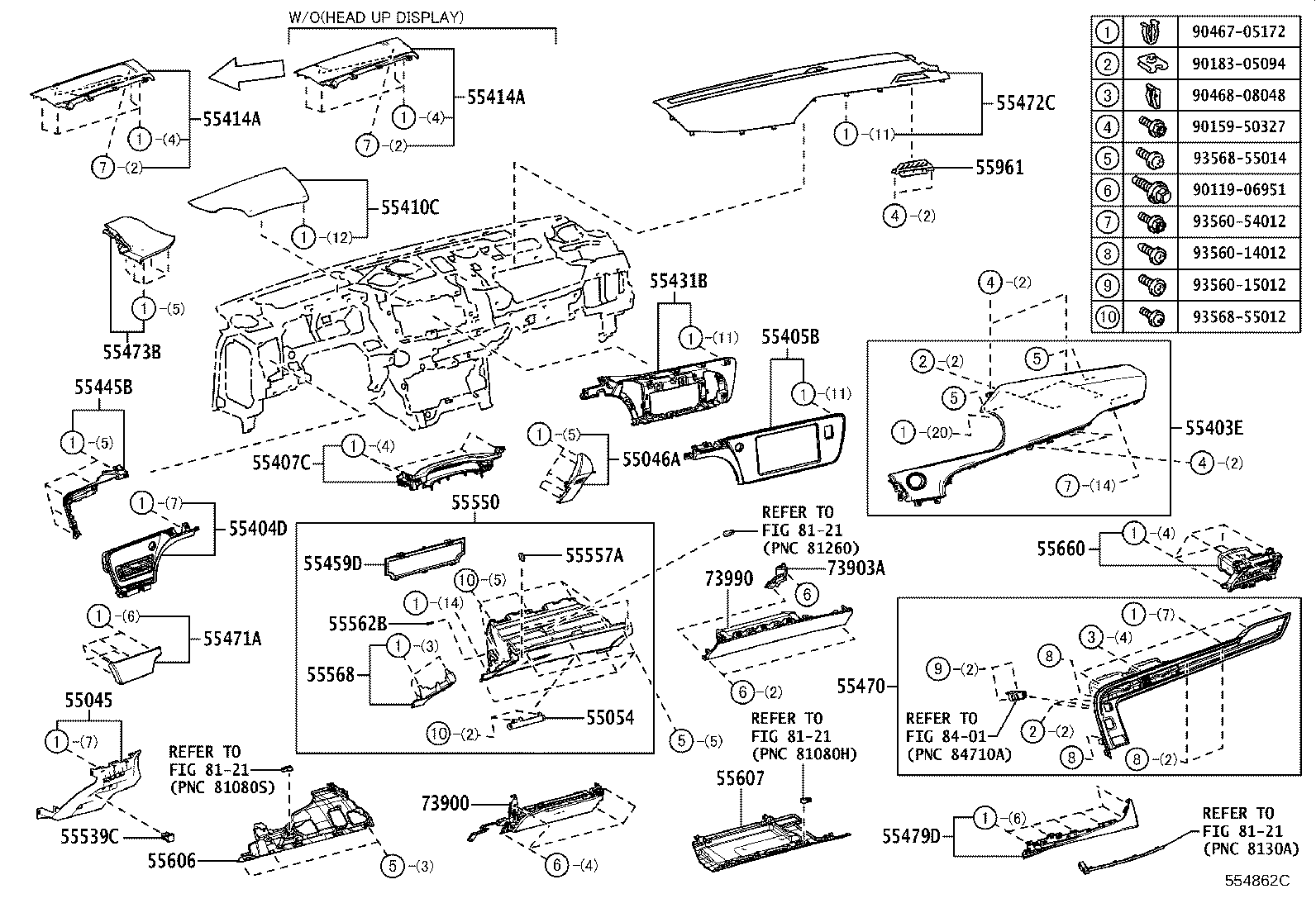

ILLUST NO. 2 OF 2(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-62050C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-62020C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-62010 |
JPD20 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-62020C1 |
JPD20 BLACK,TRIM2# |
1 | ||
| 55403-62020A1 |
JPD20..H,S WHITE,TRIM0# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-62020 |
JPD20 |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-62020 |
JPD20 |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-62020C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-62040C0 |
JPD20..S BLACK,TRIM0#,2# |
1 | ||
| 55414-62030C0 |
JPD20..H BLACK,TRIM0#,2# |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-62040C0 |
JPD20..S BLACK,TRIM0#,2# |
1 | ||
| 55414-62030C0 |
JPD20..H BLACK,TRIM0#,2# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-62020 |
JPD20 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-30070 |
JPD20 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-62030 |
JPD20..H INSTRUMENT PANEL-SYNTHETIC LEATHER(SATIN & BLACK) |
1 | ||
| 55470-62040 |
JPD20..H |
1 | ||
| 55470-62030 |
JPD20..H INSTRUMENT PANEL-SYNTHETIC LEATHER(SATIN & WHITE) |
1 | ||
| 55470-62030 |
JPD20..B,S |
1 | ||
| 55471A - ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55471-62060C1 |
JPD20 BLACK,TRIM2# |
1 | ||
| 55471-62080A0 |
JPD20..H INSTRUMENT PANEL-SYNTHETIC LEATHER(COPPER & WHITE),WHITE,BLACK,TRIM0# |
1 | ||
| 55471-62080A0 |
JPD20..H,S INSTRUMENT PANEL-SYNTHETIC LEATHER(SATIN & WHITE),WHITE,BLACK,TRIM0# |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-62060C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-62020C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-62020C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C0 |
JPD20 BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-62040C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
JPD20 |
2 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
JPD20 |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-62010C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-62040 |
JPD20 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-62040 |
JPD20 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-62060 |
JPD20 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-62040 |
JPD20 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-62040C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| 73903A - BRACKET SUB-ASSY, AIR BAG INSTRUMENT PANEL, LOWER | ||||
| 73903-62010 |
JPD20 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-62010C0 |
JPD20..H,S BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
| 93560-54012 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
