JPD20L-CEDHSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(2011- )

Click highlighted areas on diagram

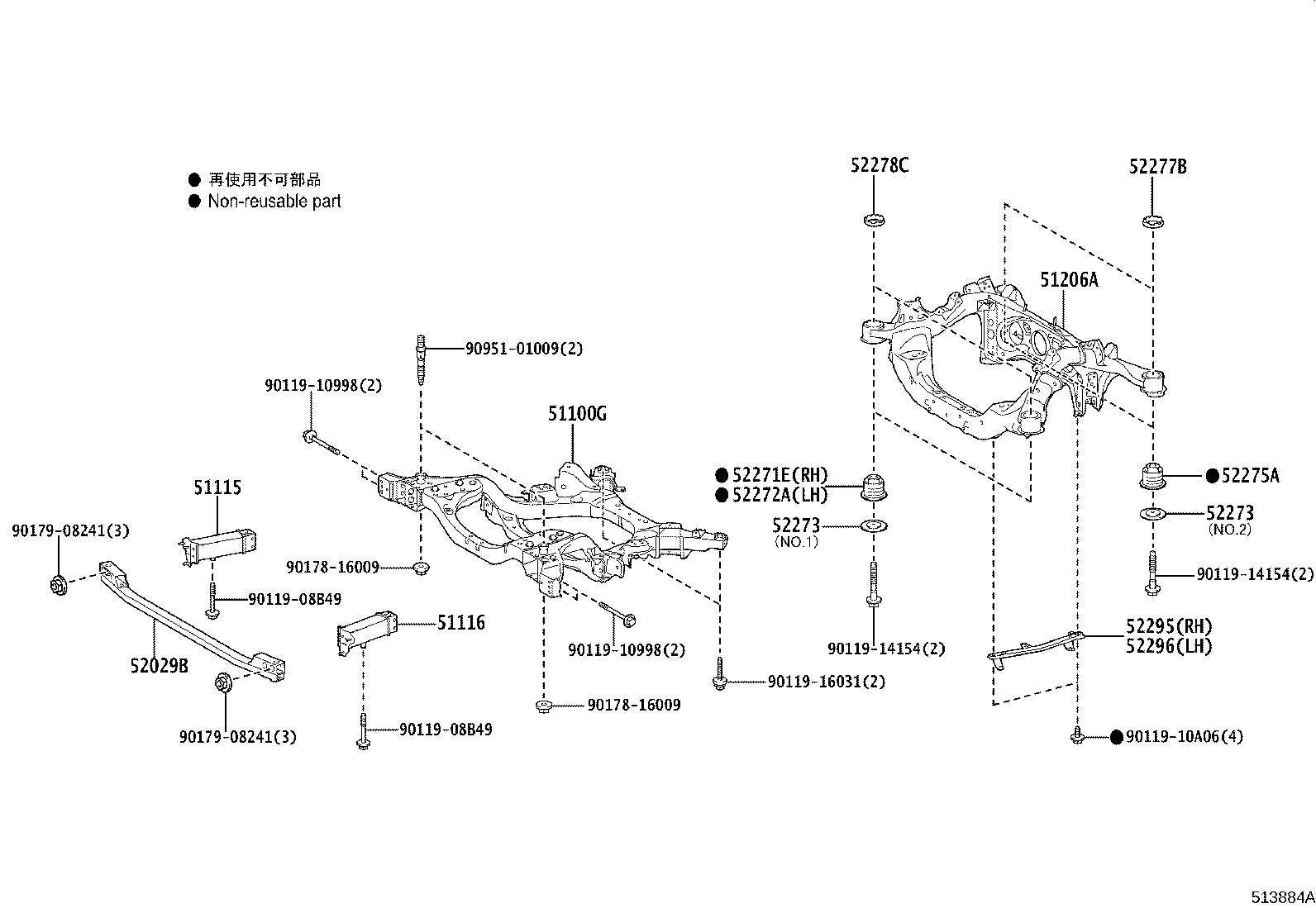

SUSPENSION CROSSMEMBER

diagram 51100G 51115 51116 51206A 52029B 52271E 52272A 52273 52273 52275A 52277B 52278C 52295 52296 9011908B49 9011908B49 9011910998 9011910998 9011910A06 9011914154 9011914154 9011916031 9017816009 9017816009 9017908241 9017908241 9095101009
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-62011

JPD20

 1
51115 - RAIL, FRAME SIDE, REAR RH
51107-62020

JPD20

 1
51116 - RAIL, FRAME SIDE, REAR LH
51108-62020

JPD20

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-62020

JPD20

 1
52029B - REINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2
52029-62010

JPD20

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272-62010

JPD20

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52271-62010

JPD20

 1
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52274-62010

JPD20

NO.1:REFER ILLUST.

 2
52274-50020

JPD20

NO.2:REFER ILLUST.

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52274-62010

JPD20

NO.1:REFER ILLUST.

 2
52274-50020

JPD20

NO.2:REFER ILLUST.

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-11010

JPD20

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-11010

JPD20

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-50030

JPD20

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-62010

JPD20

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-62010

JPD20

 1
Common parts
90119-08B49
90119-10998
90119-10A06
90119-14154
90119-16031
90178-16009
90179-08241
90951-01009

ILLUST NO. 2 OF 4(2011- )

Click highlighted areas on diagram

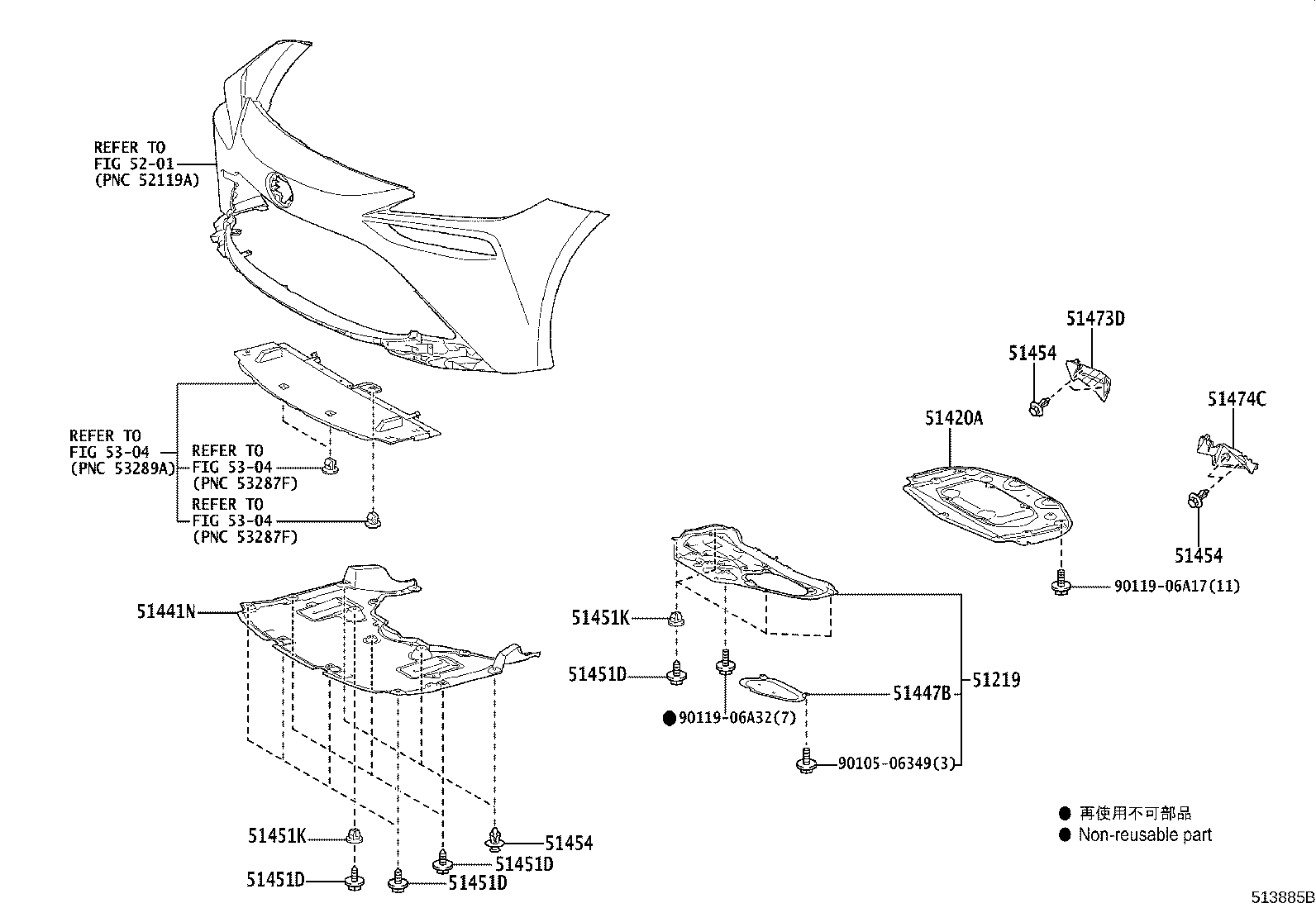

ENGINE UNDER COVER

diagram 51219 51420A 51441N 51447B 51451D 51451D 51451D 51451D 51451K 51451K 51454 51454 51454 51473D 51474C 5201 5304 5304 5304 9010506349 9011906A17 9011906A32
Part # Description Qty Price
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51202-62030

JPD20

 1
51420A - COVER ASSY, FRONT COMPARTMEMT UNDER
51420-62010

JPD20

 1
51441N - COVER, FRONT COMPARTMENT UNDER
51441-62020

JPD20

 1
51447B - PROTECTOR, OIL PAN
51447-62010

JPD20

 1
51451D - SCREW, NO.1
90159-60477

JPD20

 12
51451D - SCREW, NO.1
90159-60477

JPD20

 12
51451D - SCREW, NO.1
90159-60477

JPD20

 12
51451D - SCREW, NO.1
90159-60477

JPD20

 12
51451K - GROMMET, SCREW, NO.1
90189-06066

JPD20

 5
51451K - GROMMET, SCREW, NO.1
90189-06066

JPD20

 5
51454 - CLIP
90467-07220

JPD20

 7
51454 - CLIP
90467-07220

JPD20

 7
51454 - CLIP
90467-07220

JPD20

 7
51473D - COVER, FRONT COMPARTMENT SIDE, RH
51473-62010

JPD20

 1
51474C - COVER, FRONT COMPARTMENT SIDE, LH
51474-62010

JPD20

 1
Common parts
90105-06349
90119-06A17
90119-06A32
Linked diagrams
5201
5304

ILLUST NO. 3 OF 4(2011- )

Click highlighted areas on diagram

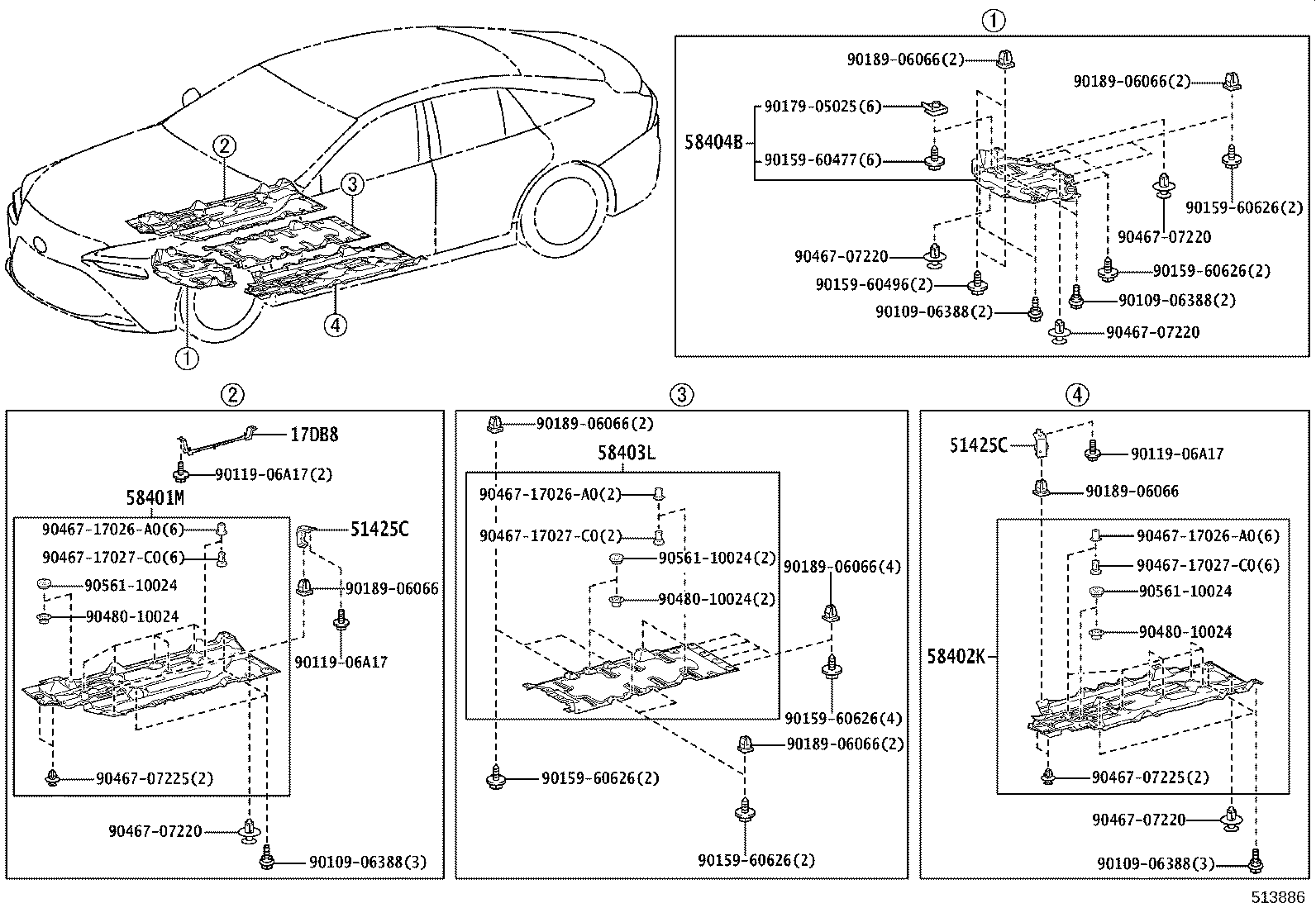

FLOOR UNDER COVER(FRONT)

diagram 17DB8 51425C 51425C 58401M 58402K 58403L 58404B 9010906388 9010906388 9010906388 9010906388 9011906A17 9011906A17 9011906A17 9015960477 9015960496 9015960626 9015960626 9015960626 9015960626 9015960626 9017905025 9018906066 9018906066 9018906066 9018906066 9018906066 9018906066 9018906066 9046707220 9046707220 9046707220 9046707220 9046707220 9046707225 9046707225 9046717026A0 9046717026A0 9046717026A0 9046717027C0 9046717027C0 9046717027C0 9048010024 9048010024 9048010024 9056110024 9056110024 9056110024
Part # Description Qty Price
17DB8 - BRACKET, FLOOR UNDER COVER, NO.1
17DB8-77020

3KM..JPD20

 1
51425C - BRACKET, FLOOR UNDER COVER, NO.2
51425-62010

JPD20

 2
51425C - BRACKET, FLOOR UNDER COVER, NO.2
51425-62010

JPD20

 2
58401M - BOARD SUB-ASSY, FLOOR, NO.1
58401-62010

JPD20

 1
58402K - BOARD SUB-ASSY, FLOOR, NO.2
58402-62010

JPD20

 1
58403L - BOARD SUB-ASSY, REAR FLOOR, NO.3
58403-62010

JPD20

 1
58404B - BOARD SUB-ASSY, REAR FLOOR, NO.4
58404-62010

JPD20

 1
Common parts
90109-06388
90119-06A17
90159-60477
90159-60496
90159-60626
90179-05025
90189-06066
90467-07220
90467-07225
90467-17026A0
90467-17027C0
90480-10024
90561-10024

ILLUST NO. 4 OF 4(2011- )

Click highlighted areas on diagram

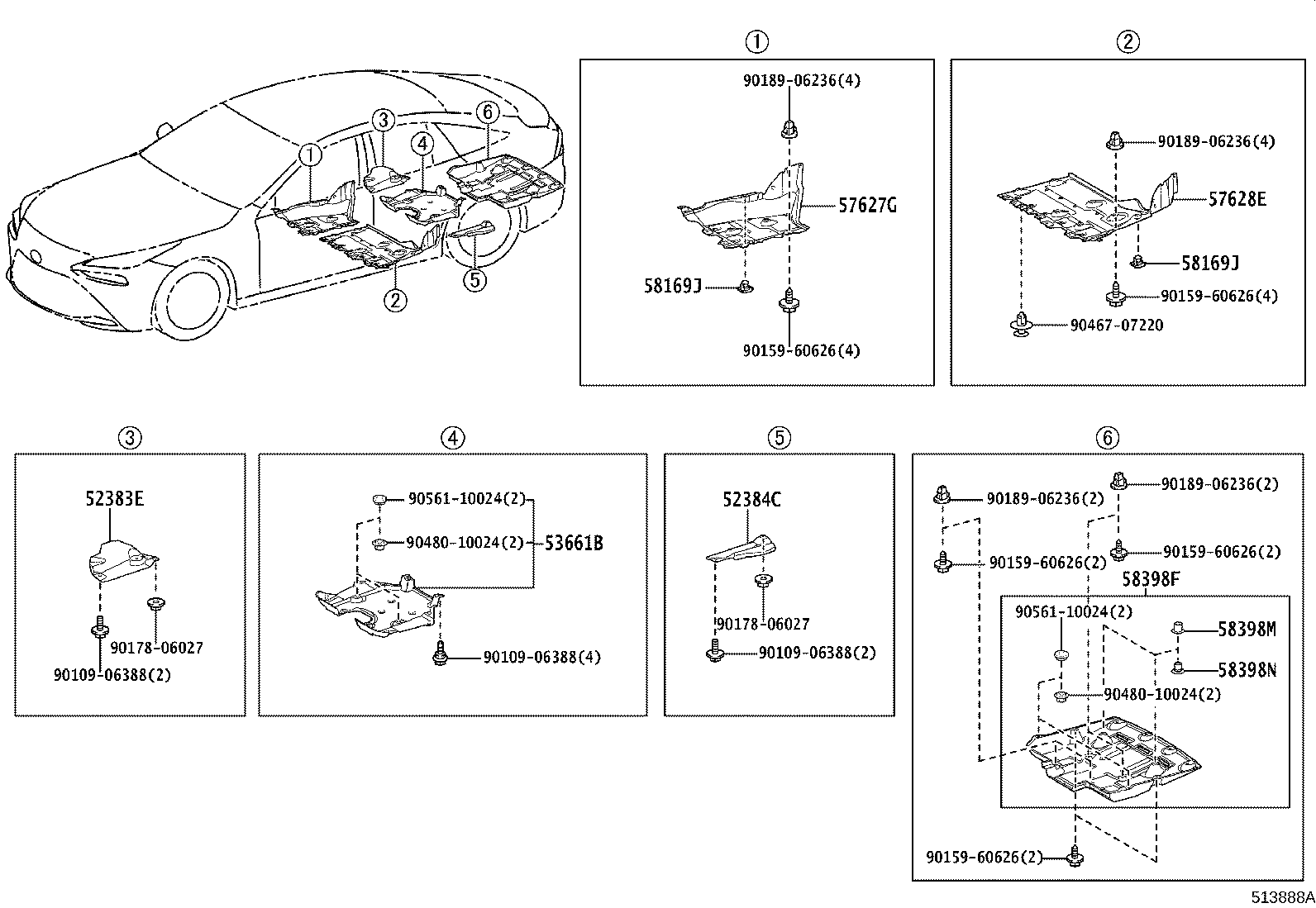

FLOOR UNDER COVER(CENTER&REAR)

diagram 52383E 52384C 53661B 57627G 57628E 58169J 58169J 58398F 58398M 58398N 9010906388 9010906388 9010906388 9015960626 9015960626 9015960626 9015960626 9015960626 9017806027 9017806027 9018906236 9018906236 9018906236 9018906236 9046707220 9048010024 9048010024 9056110024 9056110024
Part # Description Qty Price
52383E - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1
52383-62010

JPD20

 1
52384C - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2
52384-62010

JPD20

 1
53661B - COVER, REAR SUSPENSION BRACE
53661-62010

JPD20

 1
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
57627-62010

JPD20

 1
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-62010

JPD20

 1
58169J - PATCH, FRONT FLOOR, REAR
58169-48010

JPD20

 2
58169J - PATCH, FRONT FLOOR, REAR
58169-48010

JPD20

 2
58398F - COVER, FLOOR UNDER, NO.1
58398-62020

JPD20

 1
58398M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

JPD20

SUPER WHITE 2

 2
58398N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

JPD20

BLACK

 2
Common parts
90109-06388
90159-60626
90178-06027
90189-06236
90467-07220
90480-10024
90561-10024
