JPD20L-CEDHSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2011- )

Click highlighted areas on diagram

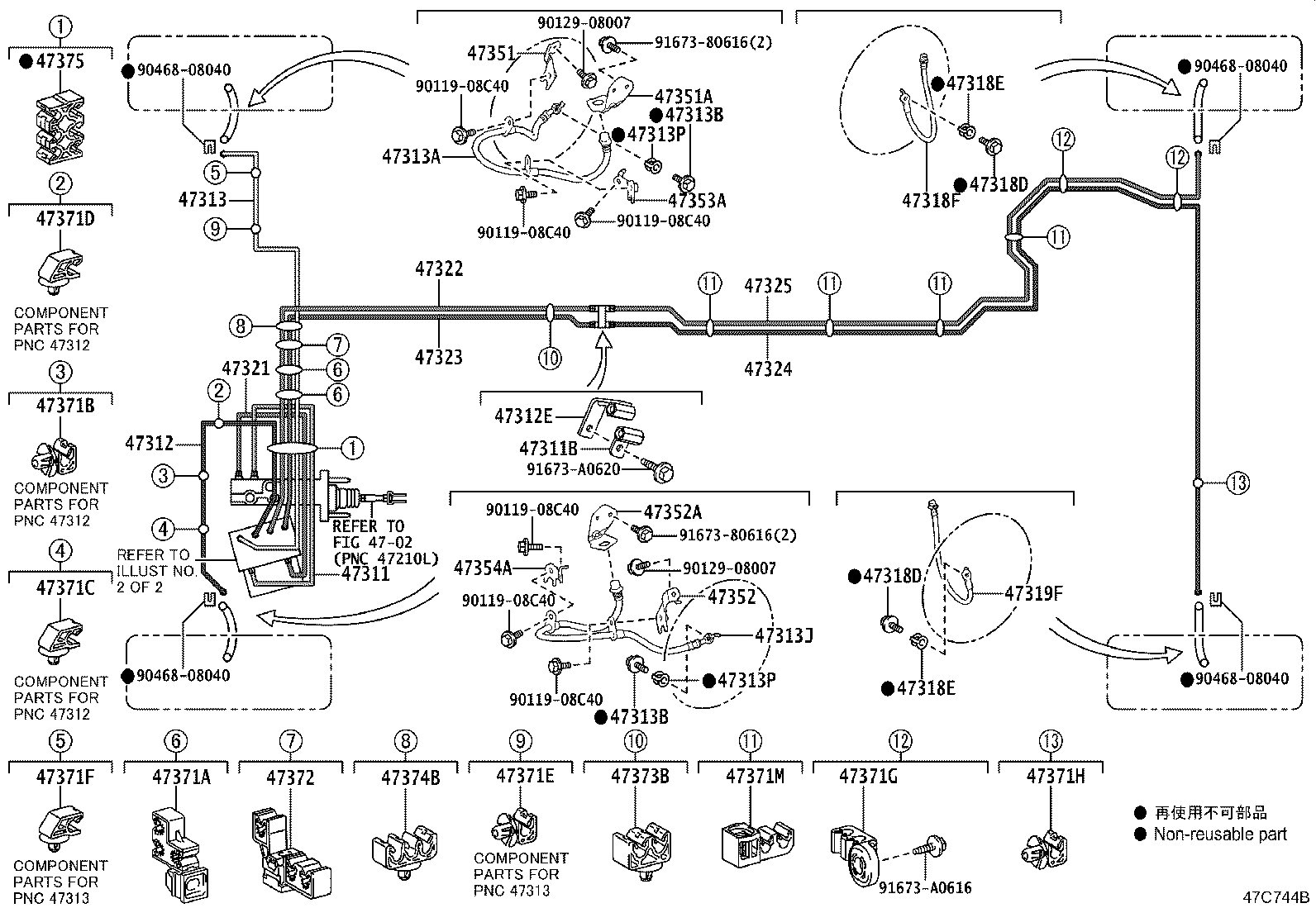

BRAKE TUBE

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47323 47324 47325 47351 47351A 47352 47352A 47353A 47354A 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371H 47371M 47372 47373B 47374B 47375 9011908C40 9011908C40 9011908C40 9011908C40 9011908C40 9011908C40 9012908007 9012908007 9046808040 9046808040 9046808040 9046808040 9167380616 9167380616 91673A0616 91673A0620
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-62020

JPD20

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10292

JPD20

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-62020

JPD20

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10297

JPD20

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-62020

JPD20

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02J63

JPD20

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

JPD20

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

JPD20

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02J64

JPD20

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

JPD20

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

JPD20

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

JPD20

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

JPD20

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

JPD20

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

JPD20

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H68

JPD20

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H68

JPD20

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-62030

JPD20

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-62030

JPD20

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-62030

JPD20

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-62020

JPD20

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-62010

JPD20

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-50030

JPD20

 1
47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1
47351-50040

JPD20

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-50030

JPD20

 1
47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1
47352-50040

JPD20

 1
47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47351-50050

JPD20

 1
47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47352-50050

JPD20

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-62020

JPD20

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D17

JPD20

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D46

JPD20

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01E45

JPD20

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D17

JPD20

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D46

JPD20

 1
47371G - CLAMP, BRAKE TUBE, NO.11
47371-62010

JPD20

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90949-01D17

JPD20

 1
47371M - CLAMP, BRAKE TUBE, NO.13
90949-01E74

JPD20

 4
47372 - CLAMP, BRAKE TUBE, NO.2
47371-62030

JPD20

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90469-07020

JPD20

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D41

JPD20

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01E56

JPD20

 1
Common parts
90119-08C40
90129-08007
90468-08040
91673-80616
91673-A0616
91673-A0620
Linked diagrams
4702

ILLUST NO. 2 OF 2(2011- )

Click highlighted areas on diagram

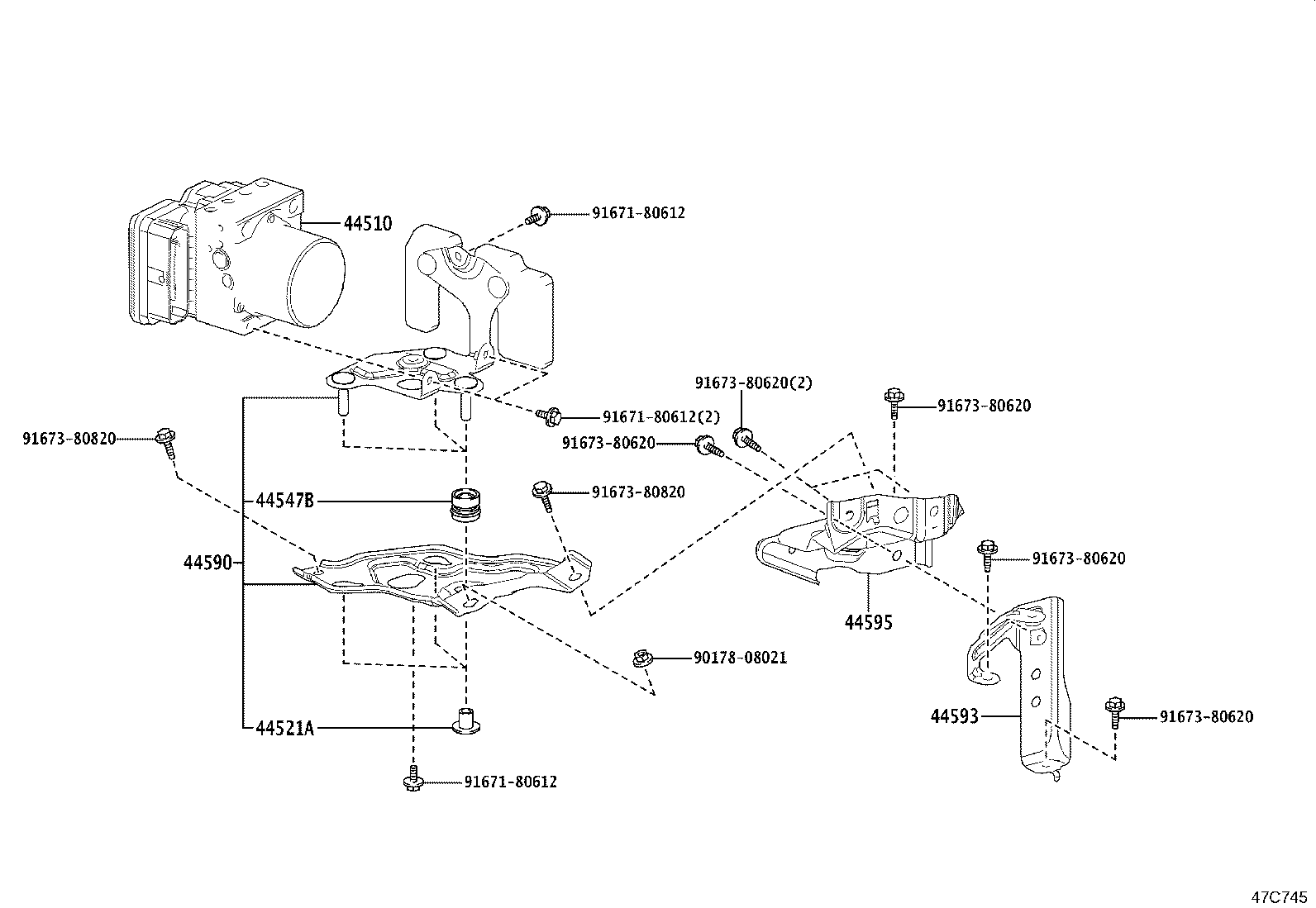

BRAKE ACTUATOR

diagram 44510 44521A 44547B 44590 44593 44595 9017808021 9167180612 9167180612 9167180612 9167380620 9167380620 9167380620 9167380620 9167380620 9167380820 9167380820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-62040

JPD20

*614

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-33020

JPD20

 3
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-62010

JPD20

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-62021

JPD20

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-62020

JPD20

 1
44595 - BRACKET, BRAKE ACTUATOR, NO.5
44595-62021

JPD20

 1
Common parts
90178-08021
91671-80612
91673-80620
91673-80820
