JPD20L-CEDBSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2011- )

Click highlighted areas on diagram

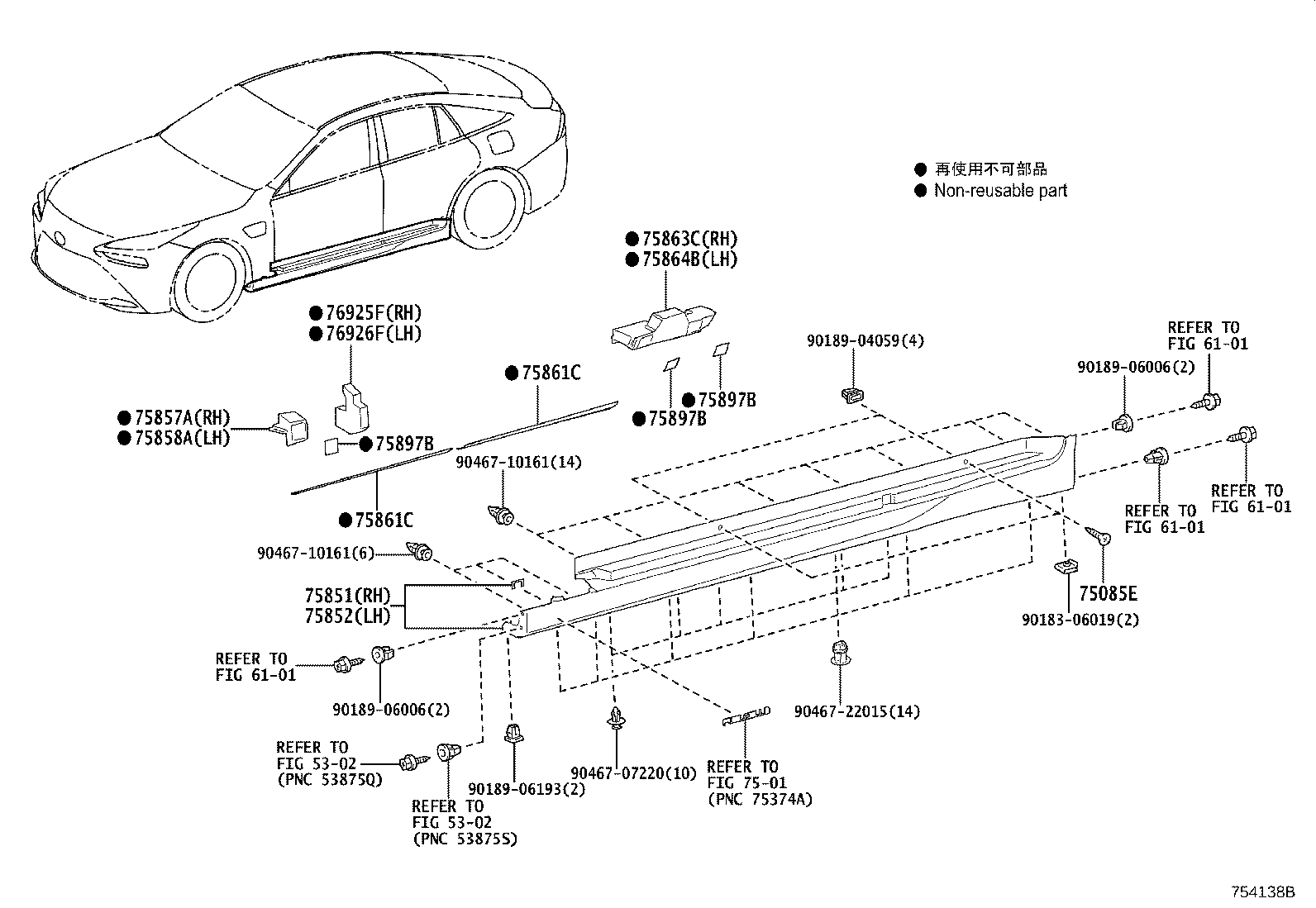

ROCKER MOULDING

diagram 5302 5302 6101 6101 6101 6101 7501 75085E 75851 75852 75857A 75858A 75861C 75861C 75863C 75864B 75897B 75897B 75897B 76925F 76926F 9018306019 9018904059 9018906006 9018906006 9018906193 9046707220 9046710161 9046710161 9046722015
Part # Description Qty Price
75085E - SCREW, NO.1
90162-40035

JPD20

SILVER

 4
90162-40034

JPD20

BLACK

 4
75851 - MOULDING, ROCKER PANEL, RH
75851-62902

JPD20

PAINT REQ.

 1
75852 - MOULDING, ROCKER PANEL, LH
75852-62902

JPD20

PAINT REQ.

 1
75857A - COVER, ROCKER PANEL MOULDING, RH
75857-62030

JPD20

 1
75858A - COVER, ROCKER PANEL MOULDING, LH
75858-62010

JPD20

 1
75861C - PAD, ROCKER PANEL MOULDING
75861-62040

JPD20

 4
75861C - PAD, ROCKER PANEL MOULDING
75861-62040

JPD20

 4
75863C - PROTECTOR, ROCKER PANEL MOULDING, NO.3
75863-62020

JPD20

 1
75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4
75864-62020

JPD20

 1
75897B - TAPE, MOULDING, NO.3
75897-62010

JPD20

 6
75897B - TAPE, MOULDING, NO.3
75897-62010

JPD20

 6
75897B - TAPE, MOULDING, NO.3
75897-62010

JPD20

 6
76925F - PROTECTOR, SIDE MUDGUARD, RH
76927-62010

JPD20

 1
76926F - PROTECTOR, SIDE MUDGUARD, LH
76927-62010

JPD20

 1
Common parts
90183-06019
90189-04059
90189-06006
90189-06193
90467-07220
90467-10161
90467-22015
Linked diagrams
5302
6101
7501

ILLUST NO. 1 OF 2(2011- )

Click highlighted areas on diagram

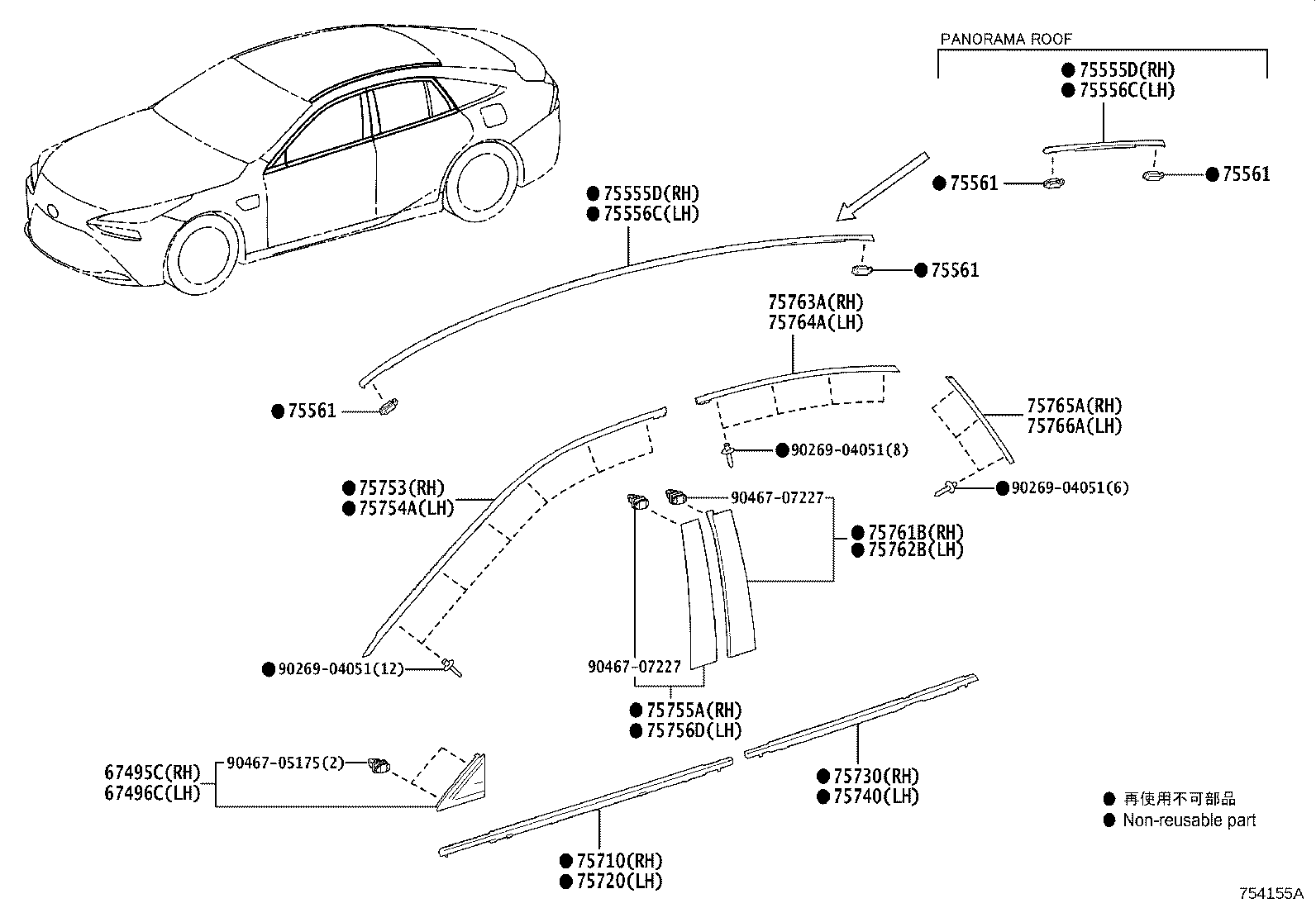

ROOF & DOOR MOULDING

diagram 67495C 67496C 75555D 75555D 75556C 75556C 75561 75561 75561 75561 75710 75720 75730 75740 75753 75754A 75755A 75756D 75761B 75762B 75763A 75764A 75765A 75766A 9026904051 9026904051 9026904051 9046705175 9046707227 9046707227
Part # Description Qty Price
67495C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-62010

JPD20

 1
67496C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-62010

JPD20

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-62020D0

JPD20..B,S

EMOTIONAL RED 2,3U5

 1
75555-62020C0

JPD20..B,S

BLACK,202

 1
75555-62020B2

JPD20..B,S

PRECIOUS METAL,1L5

 1
75555-62020A2

JPD20..B,S

PRECIOUS WHITE PEARL,090

 1
75555-62020J1

JPD20..B,S

FORCE BLUE MULTIPLE LAYER,8Y7

 1
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-62020D0

JPD20..B,S

EMOTIONAL RED 2,3U5

 1
75555-62020C0

JPD20..B,S

BLACK,202

 1
75555-62020B2

JPD20..B,S

PRECIOUS METAL,1L5

 1
75555-62020A2

JPD20..B,S

PRECIOUS WHITE PEARL,090

 1
75555-62020J1

JPD20..B,S

FORCE BLUE MULTIPLE LAYER,8Y7

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-62020D0

JPD20..B,S

EMOTIONAL RED 2,3U5

 1
75556-62020J1

JPD20..B,S

FORCE BLUE MULTIPLE LAYER,8Y7

 1
75556-62020A2

JPD20..B,S

PRECIOUS WHITE PEARL,090

 1
75556-62020C0

JPD20..B,S

BLACK,202

 1
75556-62020B2

JPD20..B,S

PRECIOUS METAL,1L5

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75556-62020D0

JPD20..B,S

EMOTIONAL RED 2,3U5

 1
75556-62020J1

JPD20..B,S

FORCE BLUE MULTIPLE LAYER,8Y7

 1
75556-62020A2

JPD20..B,S

PRECIOUS WHITE PEARL,090

 1
75556-62020C0

JPD20..B,S

BLACK,202

 1
75556-62020B2

JPD20..B,S

PRECIOUS METAL,1L5

 1
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

JPD20

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

JPD20

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

JPD20

 4
75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75561-52050

JPD20

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-62020

JPD20

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-62020

JPD20

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-62020

JPD20

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-62020

JPD20

 1
75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75753-62010

JPD20

 1
75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75754-62010

JPD20

 1
75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID
75755-62020

JPD20

 1
75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID
75756-62020

JPD20

 1
75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE
75761-62020

JPD20

 1
75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE
75762-62020

JPD20

 1
75763A - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-62020

JPD20

 1
75764A - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-62020

JPD20

 1
75765A - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-62020

JPD20

 1
75766A - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-62020

JPD20

 1
Common parts
90269-04051
90467-05175
90467-07227
