JPD20L-CEDBSA (2020)

Toyota Mirai

Production Nov 2020 - Sep 9999
Engine 3KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2011- )

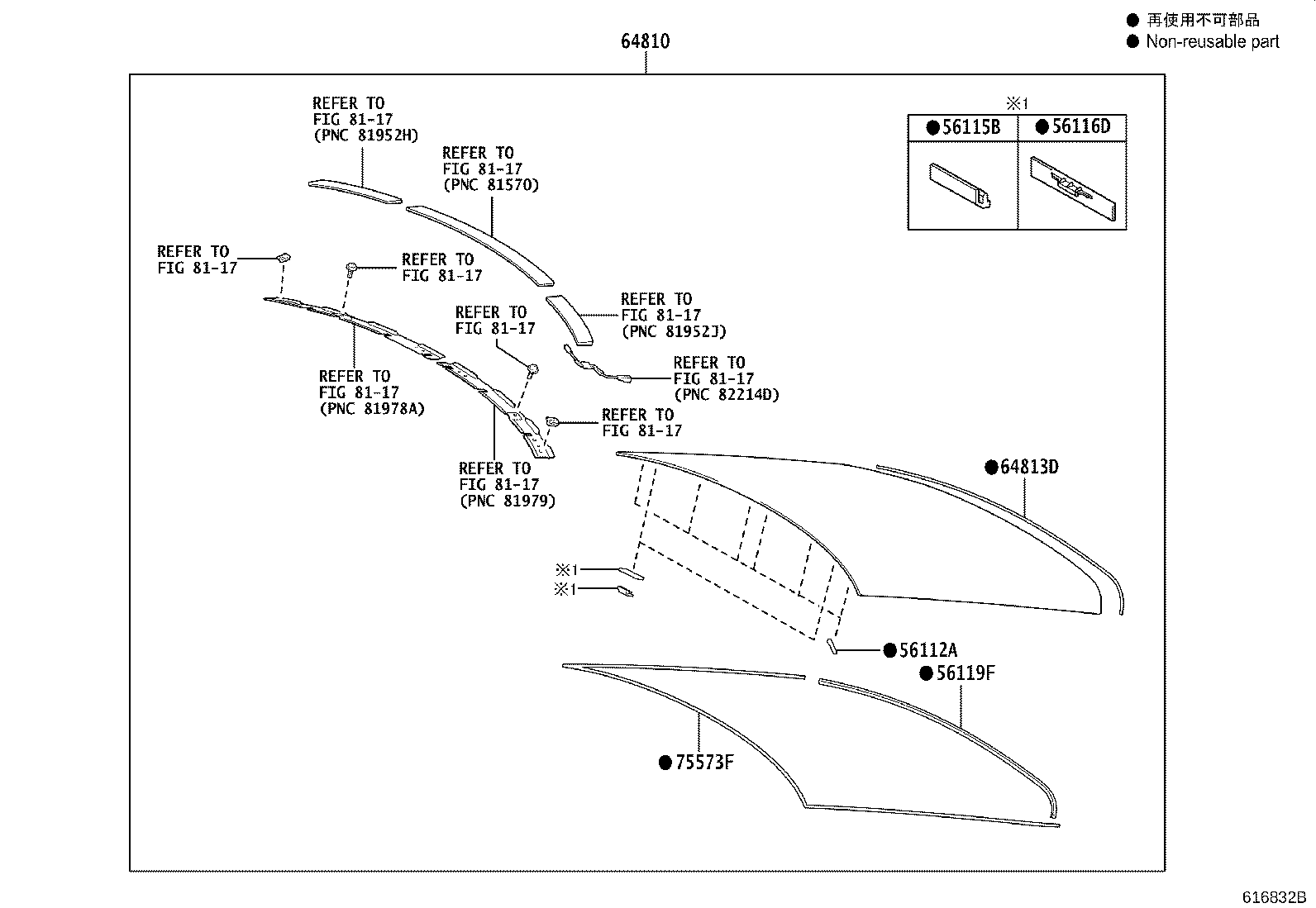

BACK WINDOW GLASS

diagram 56112A 56115B 56116D 56119F 64810 64813D 75573F 8117 8117 8117 8117 8117 8117 8117 8117 8117 8117
Part # Description Qty Price
56112A - DAM, WINDOW GLASS ADHESIVE
56117-24070

JPD20

 6
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

JPD20

FOR SUPPLY

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

JPD20

FOR SUPPLY

 1
56119F - SEAL, WINDSHIELD GLASS
56119-62030

JPD20

 1
64810 - WINDOW ASSY, BACK
64810-62020

JPD20

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-62010

JPD20

 1
75573F - MOULDING, BACK WINDOW, OUTSIDE
75573-62020

JPD20

 1
Linked diagrams
8117

ILLUST NO. 1 OF 2(2011- )

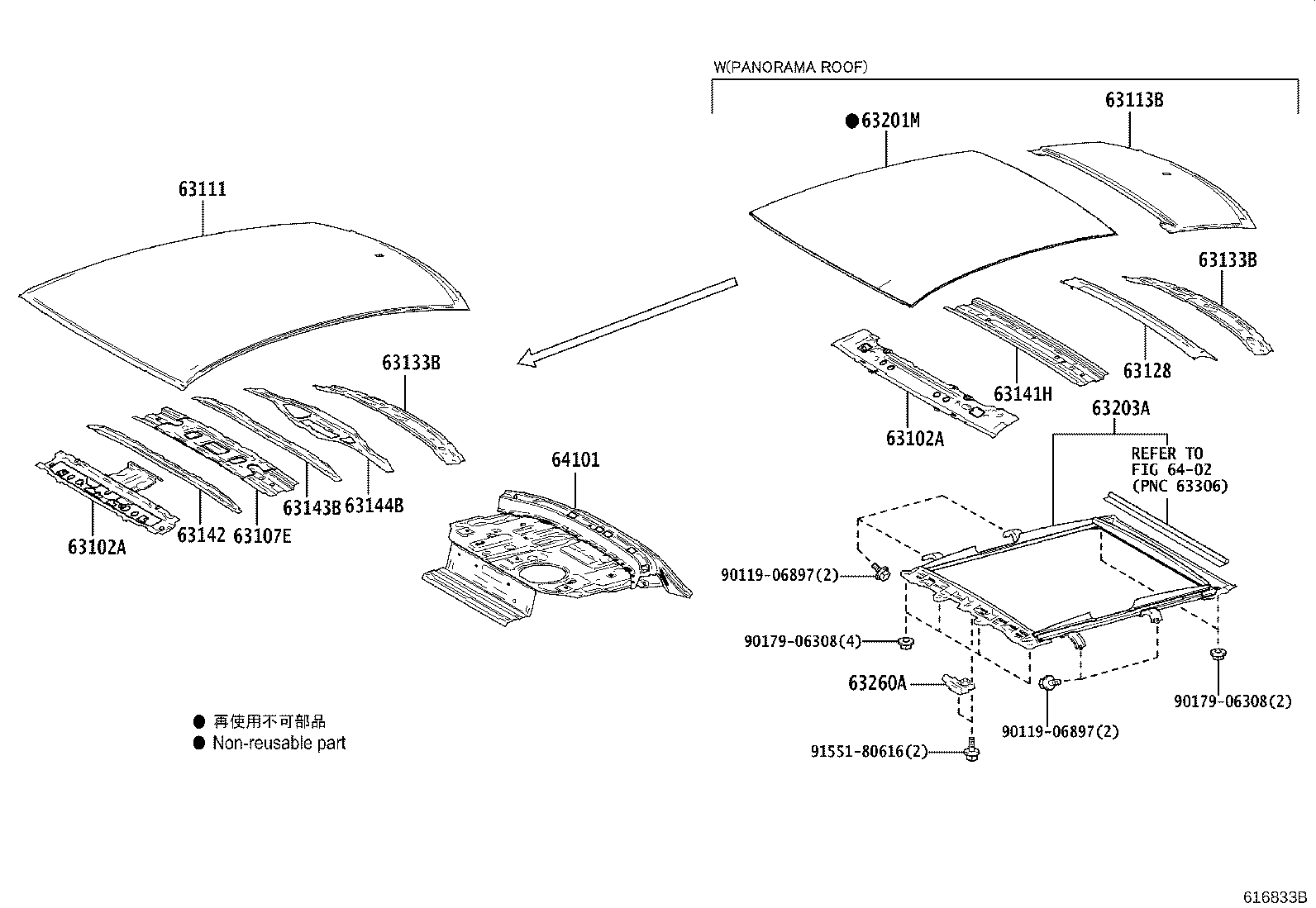

ROOF PANEL

diagram 63102A 63102A 63107E 63111 63113B 63128 63133B 63133B 63141H 63142 63143B 63144B 63201M 63203A 63260A 6402 64101 9011906897 9011906897 9017906308 9017906308 9155180616
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-62901

JPD20..B,S

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-62901

JPD20..B,S

 1
63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63107-62010

JPD20..B,S

 1
63111 - PANEL, ROOF
63111-62030

JPD20..B,S

 1
63133B - FRAME, BACK WINDOW
63133-62020

JPD20

 1
63133B - FRAME, BACK WINDOW
63133-62020

JPD20

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-62010

JPD20..B,S

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-62020

JPD20..B,S

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-62010

JPD20..B,S

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-62020

JPD20

 1
Common parts
90119-06897 None epc.PartDetail.None
90179-06308 None epc.PartDetail.None
91551-80616 None epc.PartDetail.None
Linked diagrams
6402
