JPD10L-CEDSSA (2015)

Toyota Mirai

Production Jun 2015 - May 2020
Engine 4JM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

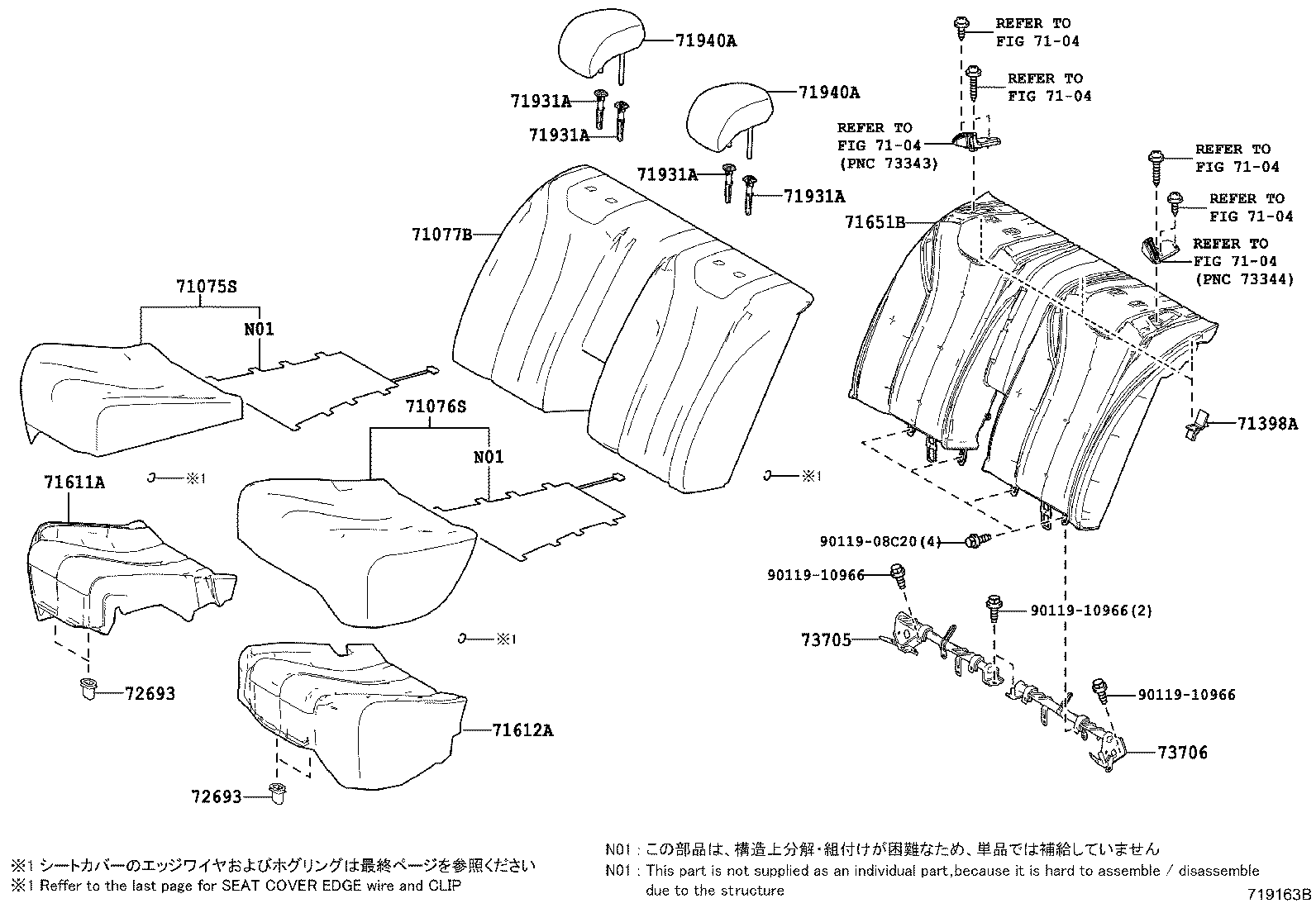

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 7104 7104 71075S 71076S 71077B 71398A 71611A 71612A 71651B 71931A 71931A 71931A 71931A 71940A 71940A 72693 72693 73705 73706 9011908C20 9011910966 9011910966 9011910966
Part # Description Qty Price
71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71075-62020A2

JPD10

WARM WHITE/WARM WHITE,TRIM00

 1
71075-62020J2

JPD10

WARM WHITE/BLUE BLACK,TRIM01

 1
71075-62020C1

JPD10

BLUE BLACK/BLACK,TRIM8#

 1
71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71076-62020J2

JPD10

WARM WHITE/BLUE BLACK,TRIM01

 1
71076-62020C1

JPD10

BLUE BLACK/BLACK,TRIM8#

 1
71076-62020A2

JPD10

WARM WHITE/WARM WHITE,TRIM00

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-62030A1

JPD10

WARM WHITE/WARM WHITE,TRIM00

 1
71077-62030C0

JPD10

BLUE BLACK/BLACK,TRIM8#

 1
71077-62030J1

JPD10

WARM WHITE/BLUE BLACK,TRIM01

 1
71398A - HOLDER, REAR SEAT BACK
71398-62010

JPD10

 3
71611A - PAD, REAR SEAT CUSHION, RH
71503-62010

JPD10

 1
71612A - PAD, REAR SEAT CUSHION, LH
71504-62010

JPD10

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-62010

JPD10

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010J2

JPD10

W/O(LOCK),BLUE BLACK,TRIM8#

 2
71930-44020J1

JPD10

W(LOCK),BLUE BLACK,TRIM8#

 2
71931-4701006

JPD10

W/O(LOCK),WARM WHITE,TRIM0#

 2
71930-4402002

JPD10

W(LOCK),WARM WHITE,TRIM0#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010J2

JPD10

W/O(LOCK),BLUE BLACK,TRIM8#

 2
71930-44020J1

JPD10

W(LOCK),BLUE BLACK,TRIM8#

 2
71931-4701006

JPD10

W/O(LOCK),WARM WHITE,TRIM0#

 2
71930-4402002

JPD10

W(LOCK),WARM WHITE,TRIM0#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010J2

JPD10

W/O(LOCK),BLUE BLACK,TRIM8#

 2
71930-44020J1

JPD10

W(LOCK),BLUE BLACK,TRIM8#

 2
71931-4701006

JPD10

W/O(LOCK),WARM WHITE,TRIM0#

 2
71930-4402002

JPD10

W(LOCK),WARM WHITE,TRIM0#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010J2

JPD10

W/O(LOCK),BLUE BLACK,TRIM8#

 2
71930-44020J1

JPD10

W(LOCK),BLUE BLACK,TRIM8#

 2
71931-4701006

JPD10

W/O(LOCK),WARM WHITE,TRIM0#

 2
71930-4402002

JPD10

W(LOCK),WARM WHITE,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-62010J6

JPD10

BLUE BLACK/BLACK,TRIM8#

 2
71940-62010A1

JPD10

WARM WHITE/BLACK,TRIM00

 2
71940-62010J5

JPD10

BLUE BLACK/WARM WHITE,TRIM01

 2
71940A - HEADREST ASSY, REAR SEAT
71940-62010J6

JPD10

BLUE BLACK/BLACK,TRIM8#

 2
71940-62010A1

JPD10

WARM WHITE/BLACK,TRIM00

 2
71940-62010J5

JPD10

BLUE BLACK/WARM WHITE,TRIM01

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

JPD10

 4
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

JPD10

 4
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-62010

JPD10

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-62010

JPD10

 1
Common parts
90119-08C20
90119-10966
Linked diagrams
7104

(1506- )

Click highlighted areas on diagram

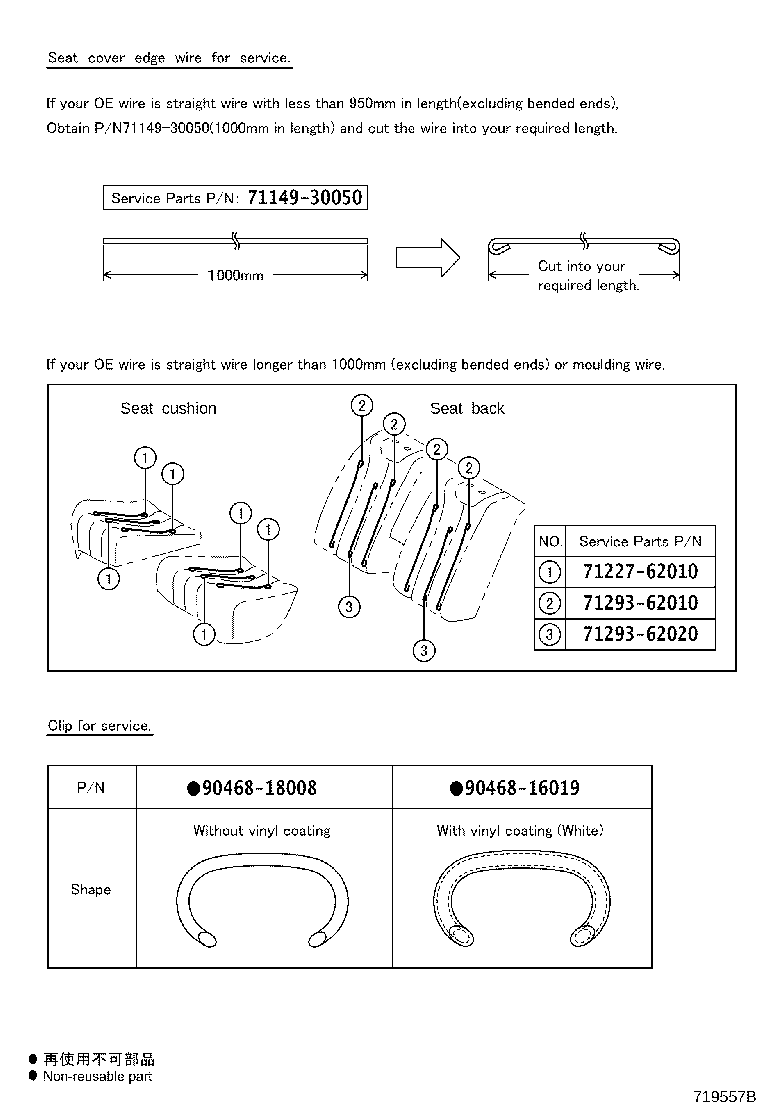

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 7122762010 7129362010 7129362020 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71227-62010
71293-62010
71293-62020
90468-16019
90468-18008
