JPD10L-CEDSSA (2015)
Toyota Mirai
Production
Jun 2015
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

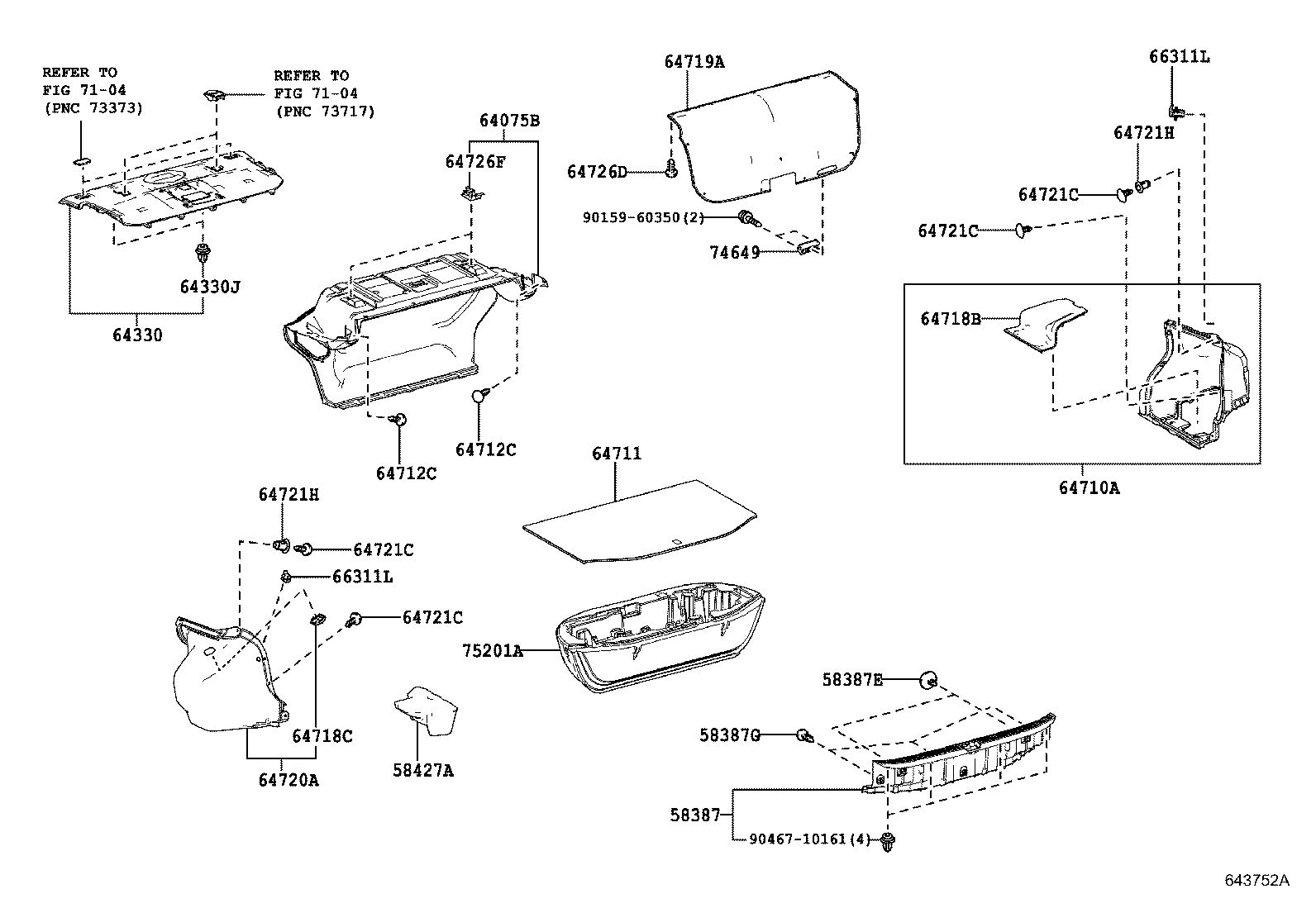

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-62010 |
JPD10 |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 63399-62010 |
JPD10 |
2 | ||
| 58387G - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-08186C3 |
JPD10 BLACK |
3 | ||
| 90467-08186C0 |
JPD10 BLACK |
3 | ||
| 58427A - SPACER, REAR FLOOR BOARD | ||||
| 58427-62010 |
JPD10 |
1 | ||
| 64075B - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-62010 |
JPD10 |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-62010C1 |
JPD10 BLACK,TRIM0#,8# |
1 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
JPD10 |
2 | ||
| 64710A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, RH | ||||
| 64710-62010 |
JPD10 |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-62010 |
JPD10 |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
JPD10 BLACK |
6 | ||
| 90467-08186C3 |
JPD10 BLACK |
6 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-08186C0 |
JPD10 BLACK |
6 | ||
| 90467-08186C3 |
JPD10 BLACK |
6 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-62010 |
JPD10 |
1 | ||
| 64718C - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-22020C0 |
JPD10 BLACK |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-62010 |
JPD10 |
1 | ||
| 64720A - COVER ASSY, LUGGAGE COMPARTMENT TRIM, LH | ||||
| 64720-62010 |
JPD10 |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
JPD10 BLACK |
4 | ||
| 90467-08186C3 |
JPD10 BLACK |
4 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
JPD10 BLACK |
4 | ||
| 90467-08186C3 |
JPD10 BLACK |
4 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
JPD10 BLACK |
4 | ||
| 90467-08186C3 |
JPD10 BLACK |
4 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
JPD10 BLACK |
4 | ||
| 90467-08186C3 |
JPD10 BLACK |
4 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-12069 |
JPD10 |
2 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-12069 |
JPD10 |
2 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C3 |
JPD10 BLACK |
12 | ||
| 90467-08186C0 |
JPD10 BLACK |
12 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
JPD10 BLACK |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
JPD10 BLACK |
2 | ||
| 66311-30010C1 |
JPD10 BLACK |
2 | ||
| 66311L - HOOK,ROPE | ||||
| 66311-30010C0 |
JPD10 BLACK |
2 | ||
| 66311-30010C1 |
JPD10 BLACK |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C3 |
JPD10 BLACK |
1 | ||
| 74649-51010C0 |
JPD10 BLACK |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-62010 |
JPD10 |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 7104 | ||||
