JPD10L-CEDSSA (2015)
Toyota Mirai
Production
Jun 2015
-
May 2020
Engine
4JM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

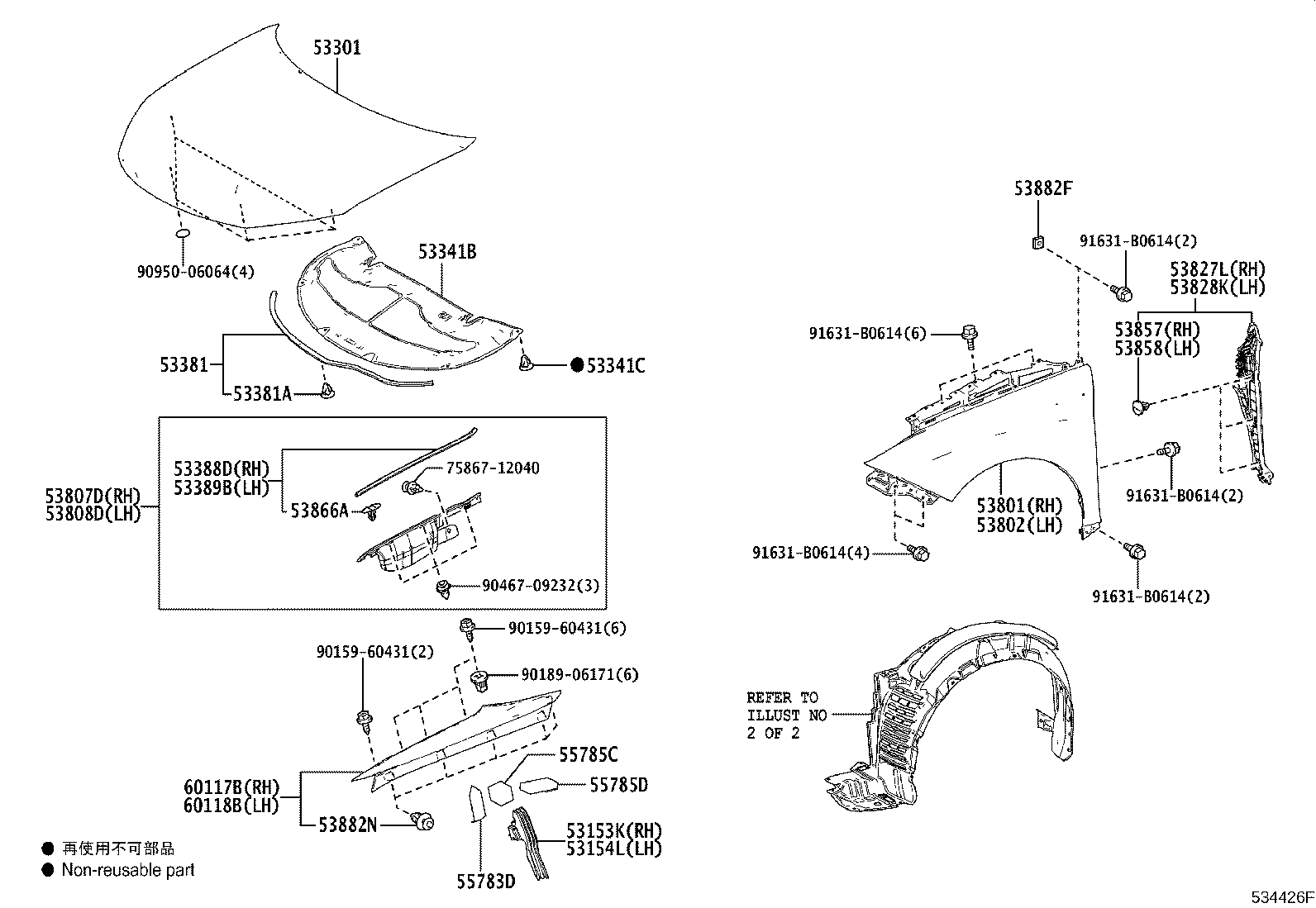

ILLUST NO. 1 OF 2(1506- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-62010 |
JPD10 |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-62010 |
JPD10 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-62020 |
JPD10 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-62010 |
JPD10 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
JPD10 |
6 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-62010 |
JPD10 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
JPD10 |
9 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-62010 |
JPD10 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-62010 |
JPD10 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-62020 |
JPD10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-62020 |
JPD10 |
1 | ||
| 53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-62010 |
JPD10 |
1 | ||
| 53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-62010 |
JPD10 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-62010 |
JPD10 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-62010 |
JPD10 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
JPD10 |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
JPD10 |
3 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 65487-60010 |
JPD10 |
12 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-33060 |
JPD10 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 75867-33040 |
JPD10 |
10 | ||
| 75867-76010 |
JPD10 |
10 | ||
| 55783D - PAD, COWL TOP SILENCER | ||||
| 55783-62010 |
JPD10 |
2 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55786-62010 |
JPD10 |
2 | ||
| 55785D - PAD, COWL TOP SILENCER, NO.2 | ||||
| 55785-62010 |
JPD10 |
2 | ||
| 60117B - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-62010B0 |
JPD10 PRECIOUS SILVER,2MR |
1 | ||
| 60117-62010A0 |
JPD10 SUPER WHITE 2,2MQ |
1 | ||
| 60117-62010J3 |
JPD10 PURE BLUE ME.,2NV |
1 | ||
| 60117-62010J1 |
JPD10 DK.BLUE MC.,2MT |
1 | ||
| 60117-62010A1 |
JPD10 WHITE PEARL CS.,2NL |
1 | ||
| 60117-62010D0 |
JPD10 DK. RED M.M.,2NM |
1 | ||
| 60117-62010C1 |
JPD10 PRECIOUS BLACK,2MS |
1 | ||
| 60118B - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-62010J3 |
JPD10 PURE BLUE ME.,2NV |
1 | ||
| 60118-62010C1 |
JPD10 PRECIOUS BLACK,2MS |
1 | ||
| 60118-62010A0 |
JPD10 SUPER WHITE 2,2MQ |
1 | ||
| 60118-62010J1 |
JPD10 DK.BLUE MC.,2MT |
1 | ||
| 60118-62010A1 |
JPD10 WHITE PEARL CS.,2NL |
1 | ||
| 60118-62010D0 |
JPD10 DK. RED M.M.,2NM |
1 | ||
| 60118-62010B0 |
JPD10 PRECIOUS SILVER,2MR |
1 | ||
| Common parts | ||||
| 75867-12040 | ||||
| 90159-60431 | ||||
| 90189-06171 | ||||
| 90467-09232 | ||||
| 90950-06064 | ||||
| 91631-B0614 | ||||

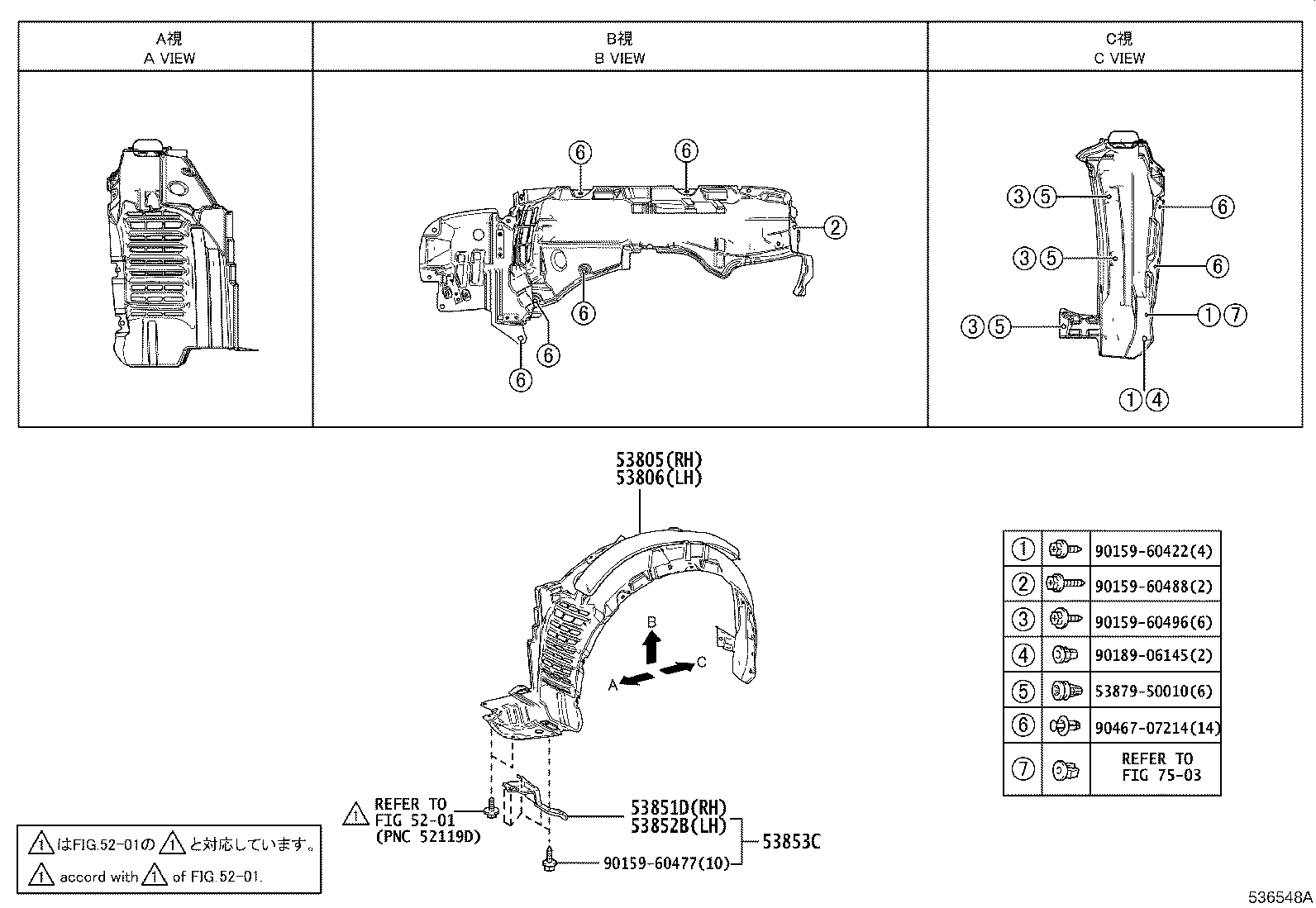

ILLUST NO. 2 OF 2(1506- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-62010 |
JPD10 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-62010 |
JPD10 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-62020 |
JPD10 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-62020 |
JPD10 |
1 | ||
| 53853C - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-62010 |
JPD10 |
1 | ||
| Common parts | ||||
| 53879-50010 | ||||
| 90159-60422 | ||||
| 90159-60477 | ||||
| 90159-60488 | ||||
| 90159-60496 | ||||
| 90189-06145 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7503 | ||||
