MZAA10L-AWXBBA (2018)

Toyota Lexus Ux250h/200

Production Oct 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1810- )

Click highlighted areas on diagram

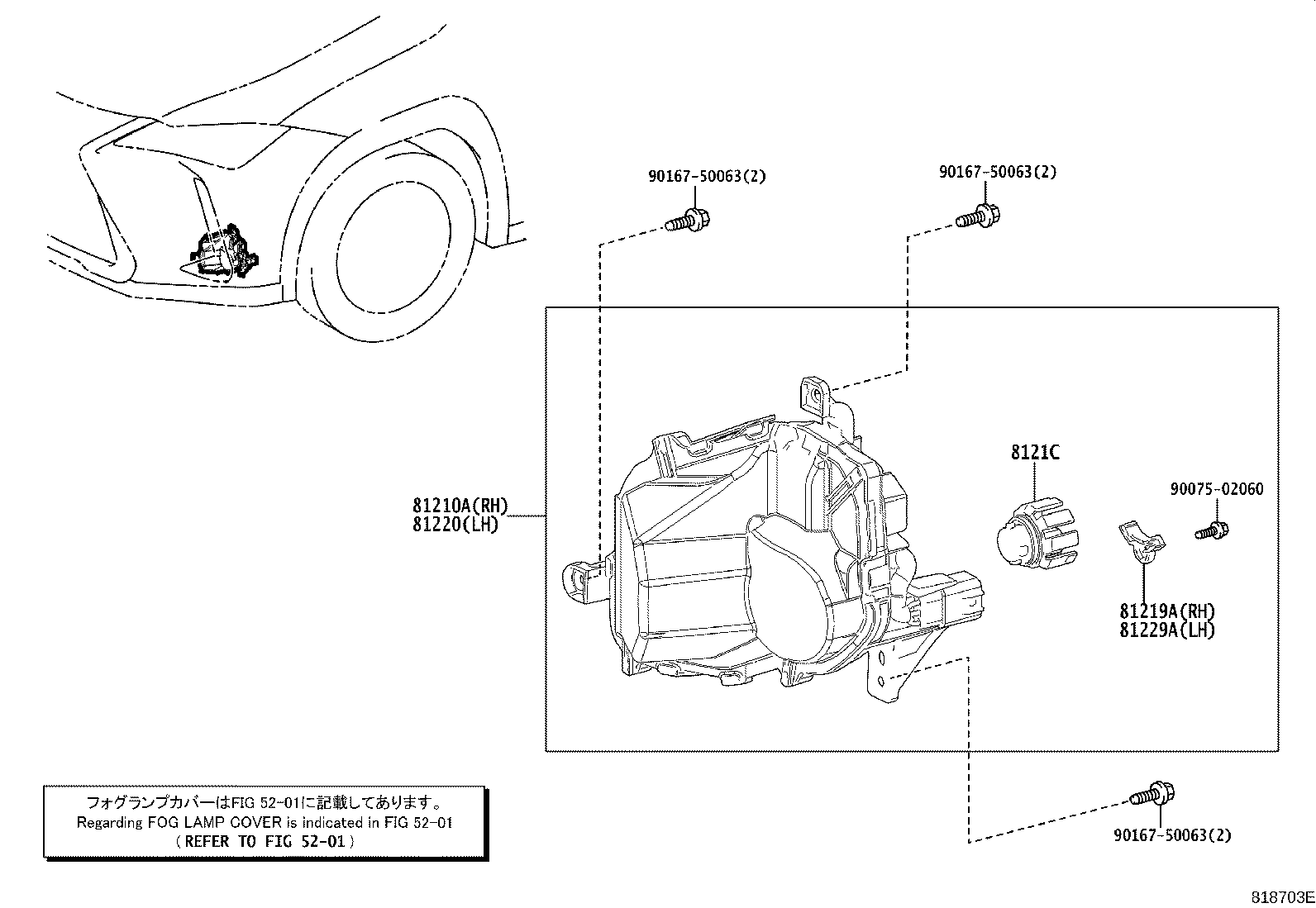

diagram 5201 81210A 81219A 8121C 81220 81229A 9007502060 9016750063 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-76020

MZAA10,MZAH1#

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81210-76020

MZAA10,MZAH1#

F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81219A - BRACKET, FOG LAMP, RH
81219-76020

MZAA10,MZAH1#

F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81219-76020

MZAA10,MZAH1#

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
8121C - LED, FOG LAMP
8121C-76020

MZAA10,MZAH1#

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 2
8121C-76020

MZAA10,MZAH1#

F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 2
81220 - LAMP ASSY, FOG, LH
81220-76020

MZAA10,MZAH1#

F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81220-76020

MZAA10,MZAH1#

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81229A - BRACKET, FOG LAMP, LH
81219-76020

MZAA10,MZAH1#

F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81219-76020

MZAA10,MZAH1#

HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
Common parts
90075-02060
90167-50063
Linked diagrams
5201
