MZAA10L-AWXBBA (2018)
Toyota Lexus Ux250h/200

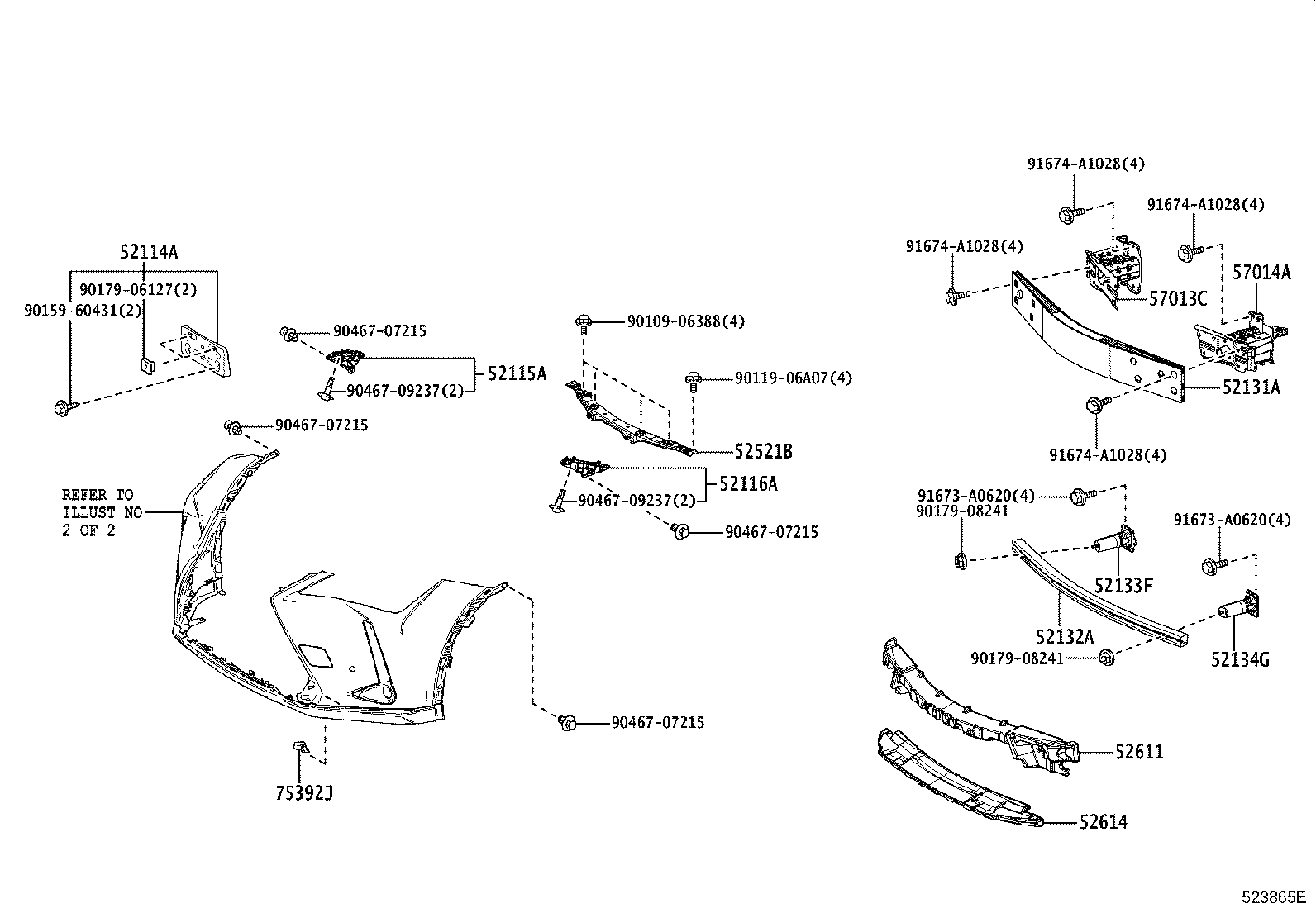

ILLUST NO. 1 OF 2(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76280 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52114-76240 |
MZAA10,MZAH1# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76020 |
MZAA10,MZAH1# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76020 |
MZAA10,MZAH1# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-76070 |
MZAA10,MZAH1# |
1 | ||
| 52131-76070 |
MZAA10,MZAH1# CANADA SPEC |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-76030 |
MZAA10,MZAH1# |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-12190 |
MZAA10,MZAH1# |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-12190 |
MZAA10,MZAH1# |
1 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-76010 |
MZAA10,MZAH1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76080 |
MZAA10,MZAH1# |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-76010 |
MZAA10,MZAH1# |
1 | ||
| 52614-76020 |
MZAA10,MZAH1# |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76030 |
MZAA10,MZAH1# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76030 |
MZAA10,MZAH1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZAA10,MZAH1# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06A07 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90179-08241 | ||||
| 90467-07215 | ||||
| 90467-09237 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||

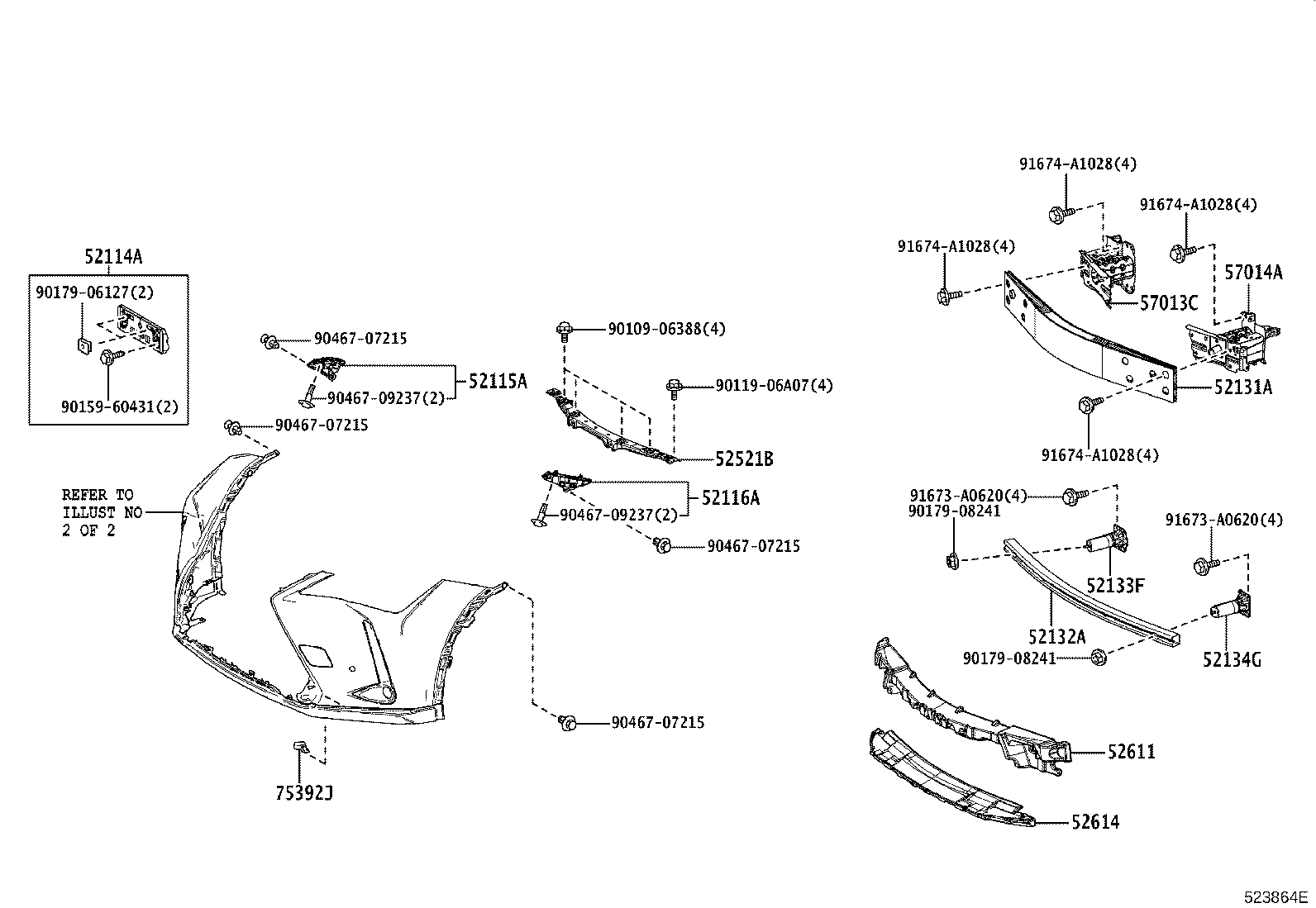

ILLUST NO. 1 OF 2(1810- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-76280 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52114-76240 |
MZAA10,MZAH1# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-76020 |
MZAA10,MZAH1# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-76020 |
MZAA10,MZAH1# |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-76070 |
MZAA10,MZAH1# |
1 | ||
| 52131-76070 |
MZAA10,MZAH1# CANADA SPEC |
1 | ||
| 52132A - REINFORCEMENT, FRONT BUMPER, NO.2 | ||||
| 52132-76030 |
MZAA10,MZAH1# |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-12190 |
MZAA10,MZAH1# |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52133-12190 |
MZAA10,MZAH1# |
1 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-76010 |
MZAA10,MZAH1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-76080 |
MZAA10,MZAH1# |
1 | ||
| 52614 - ABSORBER, FRONT BUMPER ENERGY, NO.2 | ||||
| 52614-76010 |
MZAA10,MZAH1# |
1 | ||
| 52614-76020 |
MZAA10,MZAH1# |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-76030 |
MZAA10,MZAH1# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-76030 |
MZAA10,MZAH1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
MZAA10,MZAH1# |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06A07 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 90179-08241 | ||||
| 90467-07215 | ||||
| 90467-09237 | ||||
| 91673-A0620 | ||||
| 91674-A1028 | ||||

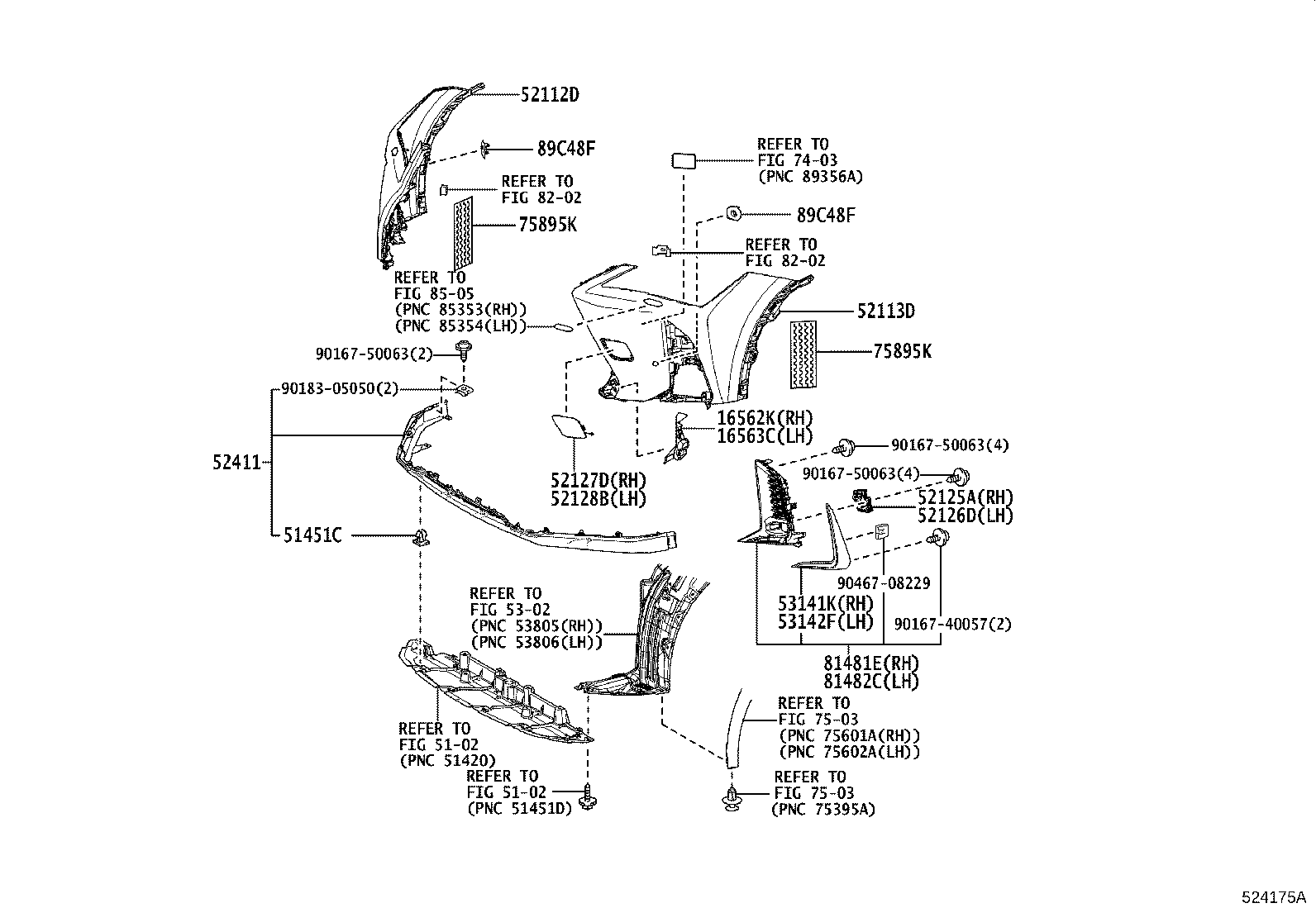

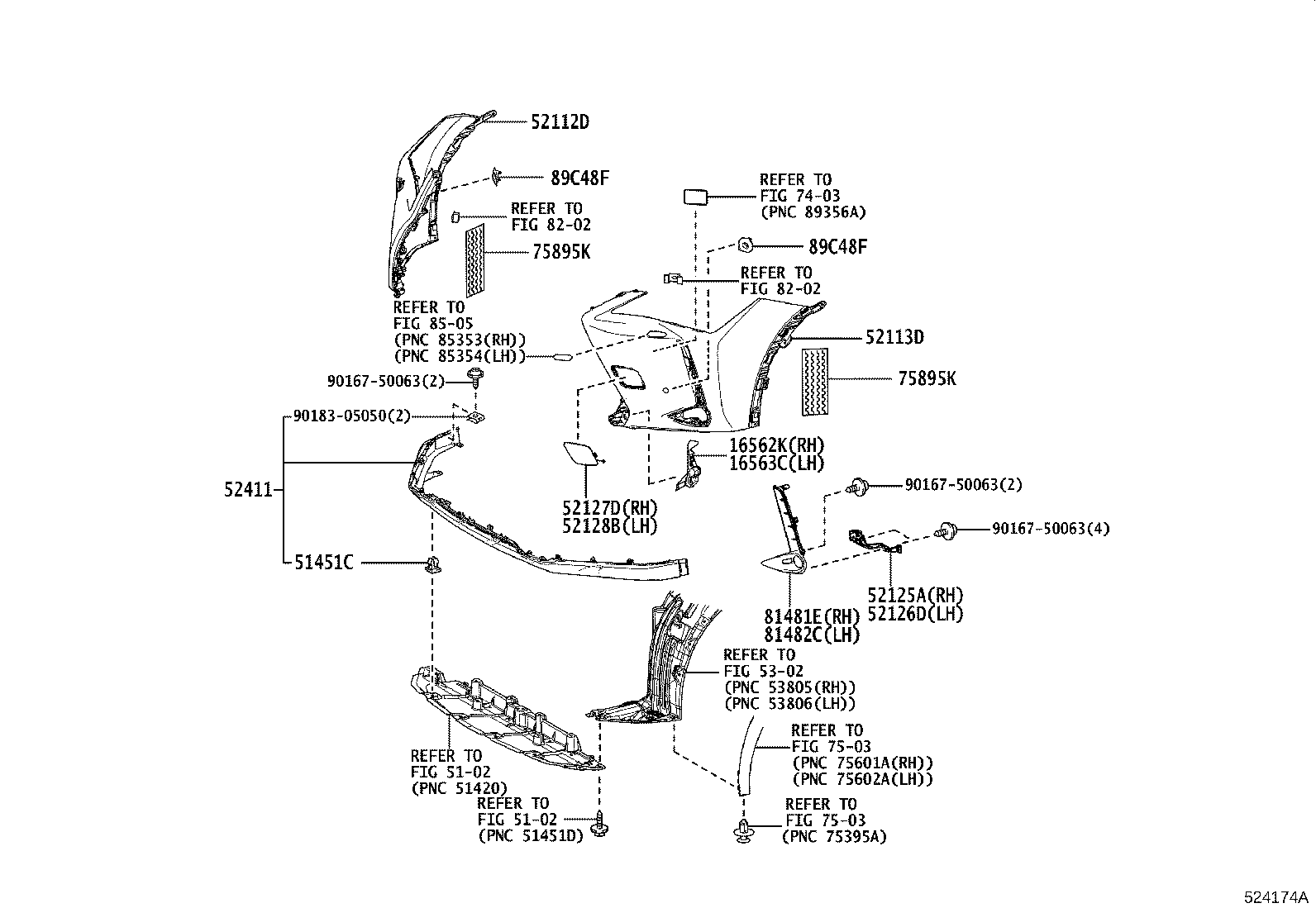

ILLUST NO. 2 OF 2(1810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16562K - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-24020 |
M20#..MZAA10,MZAH1# |
1 | ||
| 16563C - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-24020 |
M20#..MZAA10,MZAH1# |
1 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
MZAA10,MZAH1# |
6 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-76904 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76910 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52112-76902 |
MZAA10,MZAH1# |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76912 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76912 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76904 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76916 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76916 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-76900 |
MZAA10,MZAH1# |
1 | ||
| 52113-76902 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76904 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76902 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76904 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76908 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52113-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76910 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76912 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76910 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76060 |
MZAA10,MZAH1# F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52125-76050 |
MZAA10,MZAH1# |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76060 |
MZAA10,MZAH1# F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52126-76050 |
MZAA10,MZAH1# |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76906 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76905 |
MZAA10,MZAH1# |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76907 |
MZAA10,MZAH1# PAINT REQ. |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52128-76905 |
MZAA10,MZAH1# |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52128-76907 |
MZAA10,MZAH1# |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-76010 |
MZAA10,MZAH1# |
1 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
MZAA10,MZAH1# |
2 | ||
| 75895-53010 |
MZAA10,MZAH1# |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
MZAA10,MZAH1# |
2 | ||
| 75895-53010 |
MZAA10,MZAH1# |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76050 |
MZAA10,MZAH1# |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76050 |
MZAA10,MZAH1# |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,RH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,RH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7403 | ||||
| 7503 | ||||
| 8202 | ||||
| 8505 | ||||
ILLUST NO. 2 OF 2(1810- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16562K - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-24020 |
M20#..MZAA10,MZAH1# |
1 | ||
| 16563C - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-24020 |
M20#..MZAA10,MZAH1# |
1 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
MZAA10,MZAH1# |
6 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-76904 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76910 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52112-76902 |
MZAA10,MZAH1# |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76912 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76912 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76904 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76916 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52112-76916 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52112-76908 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-76900 |
MZAA10,MZAH1# |
1 | ||
| 52113-76902 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76904 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76902 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76904 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76908 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52113-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76910 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52113-76912 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52113-76906 |
MZAA10,MZAH1# HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76910 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52113-76914 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-76060 |
MZAA10,MZAH1# F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52125-76050 |
MZAA10,MZAH1# |
1 | ||
| 52126D - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-76060 |
MZAA10,MZAH1# F SPORT&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52126-76050 |
MZAA10,MZAH1# |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-76906 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76905 |
MZAA10,MZAH1# |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52127-76907 |
MZAA10,MZAH1# PAINT REQ. |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52127-76908 |
MZAA10,MZAH1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52128-76905 |
MZAA10,MZAH1# |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52128-76906 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52128-76907 |
MZAA10,MZAH1# |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52128-76908 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-76010 |
MZAA10,MZAH1# |
1 | ||
| 53141K - GARNISH, FOG LAMP COVER, RH | ||||
| 53141-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 53141-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 53141-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 53141-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 53141-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 53141-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 53142F - GARNISH, FOG LAMP COVER, LH | ||||
| 53142-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 53142-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 53142-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 53142-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 53142-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 53142-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
MZAA10,MZAH1# |
2 | ||
| 75895-53010 |
MZAA10,MZAH1# |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
MZAA10,MZAH1# |
2 | ||
| 75895-53010 |
MZAA10,MZAH1# |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76050 |
MZAA10,MZAH1# |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52030-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81481-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-76050 |
MZAA10,MZAH1# |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52040-76010 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT) |
1 | ||
| 81482-76070 |
MZAA10,MZAH1# HEADLAMP-TRINOCULAR FULL LED & WITH(*AHB & AFS)&HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE) |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,RH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89C48F - RETAINER, ULTRASONIC SENSOR, FRONT SIDE | ||||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH |
1 | ||
| 89348-12140B4 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 89348-12140E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,RH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),AMBER CS.,4X2,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,LH |
1 | ||
| 89348-12070A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,LH |
1 | ||
| 89348-12070B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12070E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,LH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,LH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140A2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083,RH |
1 | ||
| 89348-12070J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,LH |
1 | ||
| 89348-12070J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,LH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12070G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MADDER RED,3T2,RH |
1 | ||
| 89348-12140A3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,RH |
1 | ||
| 89348-12140B3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),MERCURY GRAY MC.,1H9,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACKGF.,223,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140C2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),GRAPHITE BLACK GF.,223,RH |
1 | ||
| 89348-12140D1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH |
1 | ||
| 89348-12140B5 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),SONIC TITANIUM,1J7,RH |
1 | ||
| 89348-12140C1 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,RH |
1 | ||
| 89348-12140J2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,8X1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140E2 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),BLAZING CARNELIAN CONTRAS,4Y1,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUEGF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140G1 |
MZAA10,MZAH1# F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT ALERT),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| 89348-12140J3 |
MZAA10,MZAH1# CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,RH |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90183-05050 | ||||
| 90467-08229 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7403 | ||||
| 7503 | ||||
| 8202 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
