MZAA10L-AWXBBA (2018)

Toyota Lexus Ux250h/200

Production Oct 2018 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1810- )M20AFKS

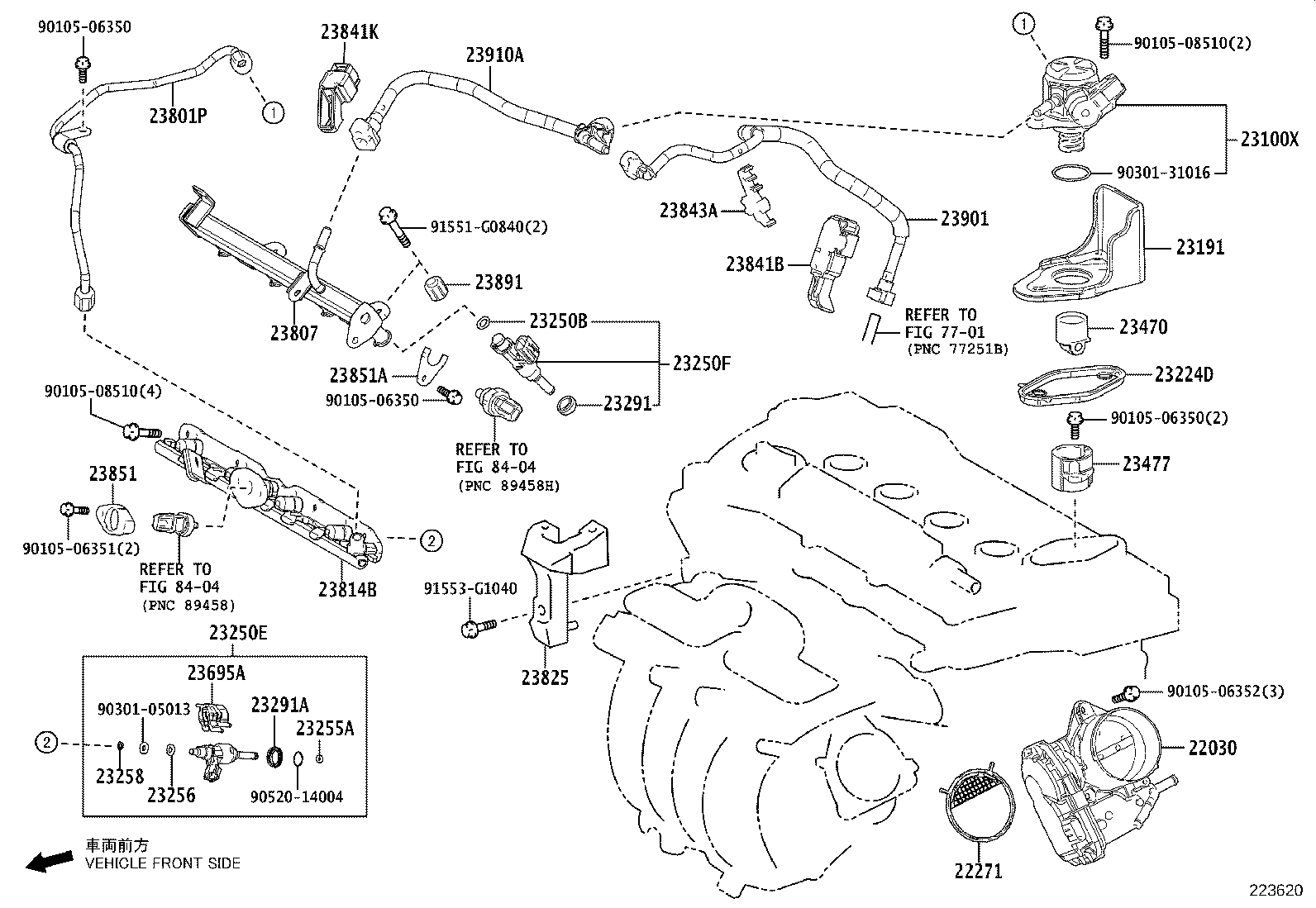

Click highlighted areas on diagram

diagram 22030 22271 23100X 23191 23224D 23250B 23250E 23250F 23255A 23256 23258 23291 23291A 23470 23477 23695A 23801P 23807 23814B 23825 23841B 23841K 23843A 23851 23851A 23891 23901 23910A 7701 8404 8404 9010506350 9010506350 9010506350 9010506351 9010506352 9010508510 9010508510 9030105013 9030131016 9052014004 91551G0840 91553G1040
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-24010

M20#..MZAA10,MZAH1#

 1
22271 - GASKET, THROTTLE BODY
22271-24010

M20AFKS..MZAA10

 1
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23101-25040

M20#..MZAA10,MZAH1#

 1
23191 - FLANGE, FUEL PUMP
23191-25050

M20#..MZAA10,MZAH1#

 1
23224D - GASKET, FUEL PUMP SPACER
23224-25010

M20#..MZAA10,MZAH1#

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

M20#..MZAA10,MZAH1#

 4
23250E - INJECTOR ASSY, FUEL(FOR DIRECT)
23209-2401005

M20#..MZAA10,MZAH1#

MARK 5,REFER REPAIR MANUAL

 4
23209-2401007

M20#..MZAA10,MZAH1#

MARK 7,REFER REPAIR MANUAL

 4
23209-2401002

M20#..MZAA10,MZAH1#

MARK 2,REFER REPAIR MANUAL

 4
23209-2401006

M20#..MZAA10,MZAH1#

MARK 6,REFER REPAIR MANUAL

 4
23209-2401001

M20#..MZAA10,MZAH1#

MARK 1,REFER REPAIR MANUAL

 4
23209-2401004

M20#..MZAA10,MZAH1#

MARK 4,REFER REPAIR MANUAL

 4
23209-2401008

M20#..MZAA10,MZAH1#

MARK 8,REFER REPAIR MANUAL

 4
23209-2401003

M20#..MZAA10,MZAH1#

MARK 3,REFER REPAIR MANUAL

 4
23209-2401009

M20#..MZAA10,MZAH1#

MARK 9,REFER REPAIR MANUAL

 4
23250F - INJECTOR ASSY, FUEL(FOR PORT)
23209-29115

M20AFKS..MZAA10

 4
23209-29165

M20AFKS..MZAA10

 4
23255A - SEAL, FUEL INJECTOR
23255-25010

M20#..MZAA10,MZAH1#

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-25010

M20#..MZAA10,MZAH1#

 4
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-47010

M20#..MZAA10,MZAH1#

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

M20#..MZAA10,MZAH1#

 4
23291A - INSULATOR, INJECTOR VIBRATION
23291-31020

M20#..MZAA10,MZAH1#

 4
23470 - LIFTER ASSY, FUEL PUMP
23470-25010

M20#..MZAA10,MZAH1#

 1
23477 - GUIDE, FUEL PUMP LIFTER
23477-25010

M20#..MZAA10,MZAH1#

 1
23695A - CLAMP, NOZZLE HOLDER
23695-24010

M20#..MZAA10,MZAH1#

 4
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-24070

M20#..MZAA10,MZAH1#

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-24020

M20#..MZAA10,MZAH1#

 1
23814B - PIPE, FUEL DELIVERY
23814-24010

M20#..MZAA10,MZAH1#

 1
23825 - GUARD, FUEL DELIVERY
23825-24010

M20#..MZAA10,MZAH1#

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-24040

M20AFKS..MZAA10

 1
23841K - CLAMP, FUEL PIPE
23841-25040

M20#..MZAA10,MZAH1#

 1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
23847-24010

M20AFKS..MZAA10

 1
23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1
23851-25020

M20#..MZAA10,MZAH1#

 1
23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2
23851-25030

M20#..MZAA10,MZAH1#

 1
23891 - SPACER, FUEL DELIVERY
23891-24010

M20#..MZAA10,MZAH1#

 2
23901 - TUBE SUB-ASSY, FUEL
23901-24021

M20AFKS..MZAA10

 1
23901-24020

M20AFKS..MZAA10

 1
23910A - TUBE SUB-ASSY, FUEL
23901-24071

M20AFKS..MZAA10

 1
23901-24070

M20AFKS..MZAA10

 1
Common parts
90105-06350
90105-06351
90105-06352
90105-08510
90301-05013
90301-31016
90520-14004
91551-G0840
91553-G1040
Linked diagrams
7701
8404
