UZZ40L-DKAQKA (2001)

Toyota Lexus Sc430

Production Jan 2001 - Aug 2005
Engine 3UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )

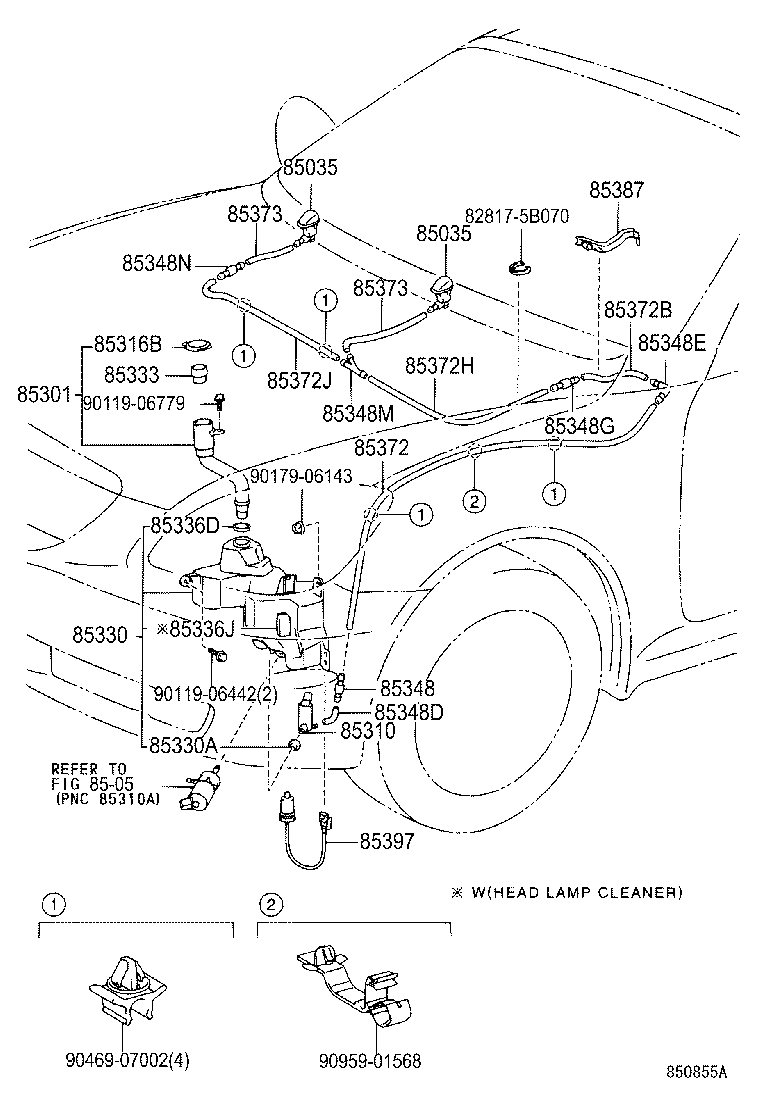

Click highlighted areas on diagram

diagram 828175B070 85035 85035 8505 85301 85310 85316B 85330 85330A 85333 85336D 85336J 85348 85348D 85348E 85348G 85348M 85348N 85372 85372B 85372H 85372J 85373 85373 85387 85397 9011906442 9011906779 9017906143 9046907002 9095901568
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-24020D0

UZZ40

*104,SUPER RED 5,3P0

 2
85381-24040B0

UZZ40

NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2

 2
85381-24020D1

UZZ40

BLACKISH RED MC.,3P6

 2
85381-24020G0

UZZ40

DARK GREEN MC.,6S6

 2
85381-24031C0

UZZ40

SUPER RED 5,202 ,3P0

 2
85381-24020C1

UZZ40

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

 2
85381-24020A0

UZZ40

WHITE PEARL CS.,065

 2
85381-24020J2

UZZ40

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6

 2
85381-24031D0

UZZ40

SUPER RED 5,3P0

 2
85381-24020B0

UZZ40

SILVER ME.,1C0

 2
85381-24020E0

UZZ40

BEIGE M.M.,4Q8

 2
85381-24020J1

UZZ40

DK.BLUE M.M.,8P4

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-24020D0

UZZ40

*104,SUPER RED 5,3P0

 2
85381-24040B0

UZZ40

NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2

 2
85381-24020D1

UZZ40

BLACKISH RED MC.,3P6

 2
85381-24020G0

UZZ40

DARK GREEN MC.,6S6

 2
85381-24031C0

UZZ40

SUPER RED 5,202 ,3P0

 2
85381-24020C1

UZZ40

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

 2
85381-24020A0

UZZ40

WHITE PEARL CS.,065

 2
85381-24020J2

UZZ40

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6

 2
85381-24031D0

UZZ40

SUPER RED 5,3P0

 2
85381-24020B0

UZZ40

SILVER ME.,1C0

 2
85381-24020E0

UZZ40

BEIGE M.M.,4Q8

 2
85381-24020J1

UZZ40

DK.BLUE M.M.,8P4

 2
85301 - INLET SUB-ASSY, WASHER
85301-24020

UZZ40

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33020

UZZ40

 1
85316B - CAP, WASHER, INLET
85316-33050

UZZ40

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-24100

UZZ40

W(HEADLAMP CLEANER)

 1
85315-24110

UZZ40

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

UZZ40

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-12470

UZZ40

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

UZZ40

 1
85336J - PROTECTOR, WASHER JAR
85336-42050

UZZ40

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

UZZ40

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-16192

UZZ40

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

UZZ40

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

UZZ40

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-14390

UZZ40

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

UZZ40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

UZZ40

*H,L=1600

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

UZZ40

*H,L=200

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

UZZ40

*H,L=580

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

UZZ40

*H,L=560

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZZ40

*H,L=170

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

UZZ40

*H,L=170

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387-24200

UZZ40

 1
85397 - SWITCH ASSY,LEVEL WARNING
85397-24100

UZZ40

 1
Common parts
82817-5B070
90119-06442
90119-06779
90179-06143
90469-07002
90959-01568
Linked diagrams
8505
