UZZ40L-DKAQKA (2001)

Toyota Lexus Sc430

Production Jan 2001 - Aug 2005
Engine 3UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0101- )

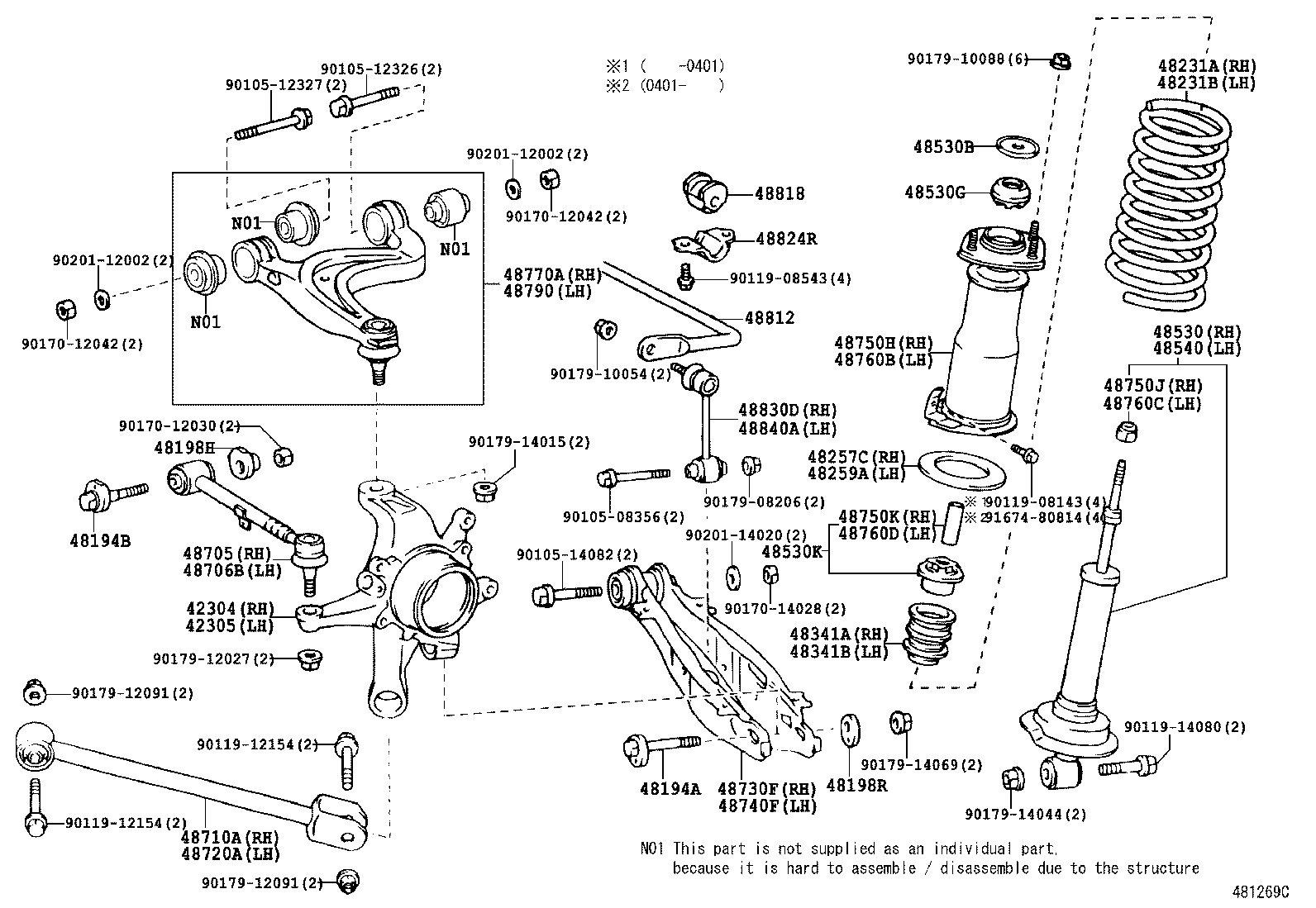

Click highlighted areas on diagram

diagram 42304 42305 48194A 48194B 48198H 48198R 48231A 48231B 48257C 48259A 48341A 48341B 48530 48530B 48530G 48530K 48540 48705 48706B 48710A 48720A 48730F 48740F 48750H 48750J 48750K 48760B 48760C 48760D 48770A 48790 48812 48818 48824R 48830D 48840A 9010508356 9010512326 9010512327 9010514082 9011908143 9011908543 9011912154 9011912154 9011914080 9017012030 9017012042 9017012042 9017014028 9017908206 9017910054 9017910088 9017912027 9017912091 9017912091 9017914015 9017914044 9017914069 9020112002 9020112002 9020114020 9167480814
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-24030

UZZ40

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-24030

UZZ40

 1
48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1
48190-30040

UZZ40

 2
48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3
48190-30060

UZZ40

 2
48198H - CAM, CAMBER ADJUST, NO.2
48198-30080

UZZ40

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-30060

UZZ40

 2
48231A - SPRING, COIL, REAR RH
48231-24290

UZZ40

 1
48231-24280

UZZ40..5FC

 1
48231-24260

UZZ40..5FC

 1
48231B - SPRING, COIL, REAR LH
48231-24260

UZZ40..5FC

 1
48231-24290

UZZ40

 1
48231-24280

UZZ40..5FC

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-30060

UZZ40

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-30060

UZZ40

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-30080

UZZ40

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-30080

UZZ40

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-80037

UZZ40

MARK 48530-24230

 1
48530-80100

UZZ40

MARK 48530-24260

 1
48530-80244

UZZ40

MARK 48530-24270

 1
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03023

UZZ40

 2
48530G - CUSHION, REAR SHOCK ABSORBER, NO.1
90948-01083

UZZ40

 2
48530K - CUSHION, REAR SHOCK ABSORBER, NO.2
90948-01082

UZZ40

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-80037

UZZ40

MARK 48530-24230

 1
48530-80100

UZZ40

MARK 48530-24260

 1
48530-80244

UZZ40

MARK 48530-24270

 1
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30070

UZZ40

 1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48705-30070

UZZ40

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-24040

UZZ40

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-24040

UZZ40

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-30080

UZZ40

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-30080

UZZ40

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-24050

UZZ40

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90177-12002

UZZ40

 1
48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90387-12050

UZZ40

 1
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48760-24010

UZZ40

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90177-12002

UZZ40

 1
48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90387-12050

UZZ40

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-24060

UZZ40

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-24060

UZZ40

 1
48812 - BAR, STABILIZER, REAR
48812-24110

UZZ40..5FC

 1
48812-24120

UZZ40..5FC

 1
48812-24110

UZZ40

 1
48818 - BUSH, STABILIZER, REAR
48818-53030

UZZ40..5FC

 2
48818-53030

UZZ40

 2
48818-30120

UZZ40..5FC

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-30050

UZZ40

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-30080

UZZ40

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-30080

UZZ40

 1
Common parts
90105-08356
90105-12326
90105-12327
90105-14082
90119-08143
90119-08543
90119-12154
90119-14080
90170-12030
90170-12042
90170-14028
90179-08206
90179-10054
90179-10088
90179-12027
90179-12091
90179-14015
90179-14044
90179-14069
90201-12002
90201-14020
91674-80814
