UZZ30L-ACPZKK (1991)

Toyota Lexus Sc300/400

Production Apr 1991 - Sep 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104- )

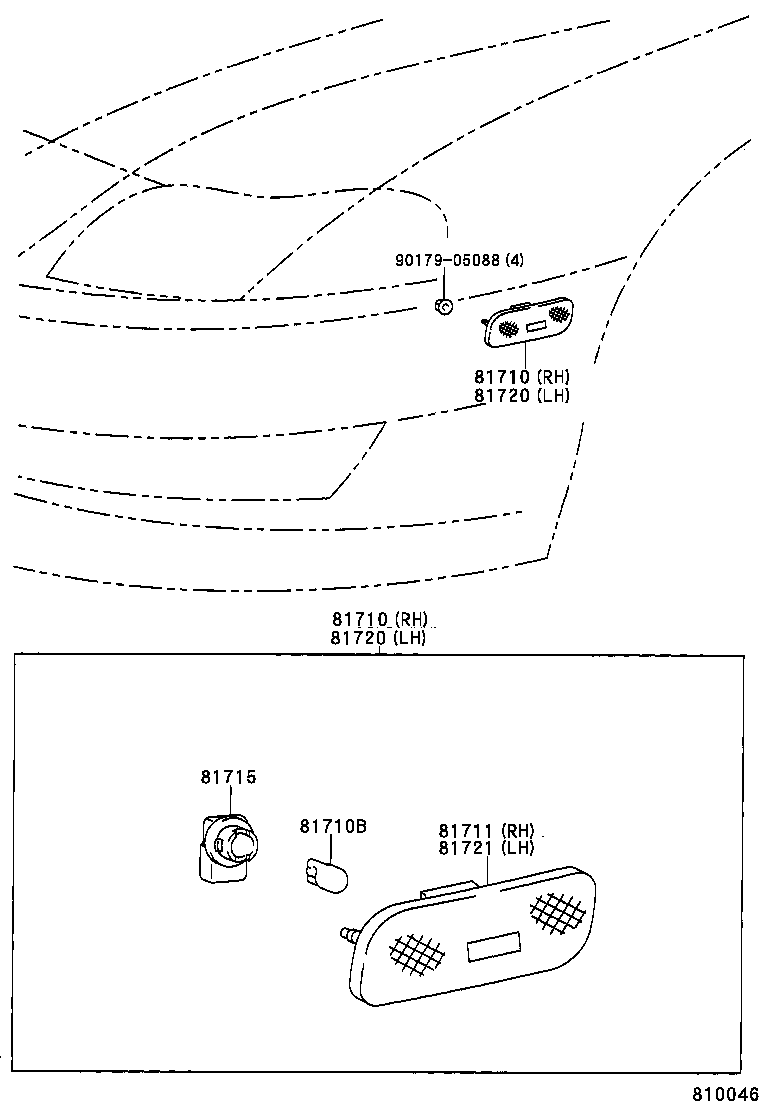

Click highlighted areas on diagram

diagram 81710 81710 81710B 81711 81715 81720 81720 81721 9017905088
Part # Description Qty Price
81710 - LAMP ASSY, FRONT MARKER, RH
81730-24020

JZZ31,UZZ30

 1
81710 - LAMP ASSY, FRONT MARKER, RH
81730-24020

JZZ31,UZZ30

 1
81710B - BULB, FRONT MARKER LAMP
90981-11020

JZZ31,UZZ30

12V 3.8W

 2
81711 - LENS, FRONT MARKER LAMP, RH
81731-24020

JZZ31,UZZ30

 1
81715 - SOCKET & WIRE, FRONT MARKER LAMP
90075-99012

JZZ31,UZZ30

 2
81720 - LAMP ASSY, FRONT MARKER, LH
81740-24020

JZZ31,UZZ30

 1
81720 - LAMP ASSY, FRONT MARKER, LH
81740-24020

JZZ31,UZZ30

 1
81721 - LENS, FRONT MARKER LAMP, LH
81741-24020

JZZ31,UZZ30

 1
Common parts
90179-05088
