UZZ30L-ACPZKK (1991)

Toyota Lexus Sc300/400

Production Apr 1991 - Sep 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104-9709)

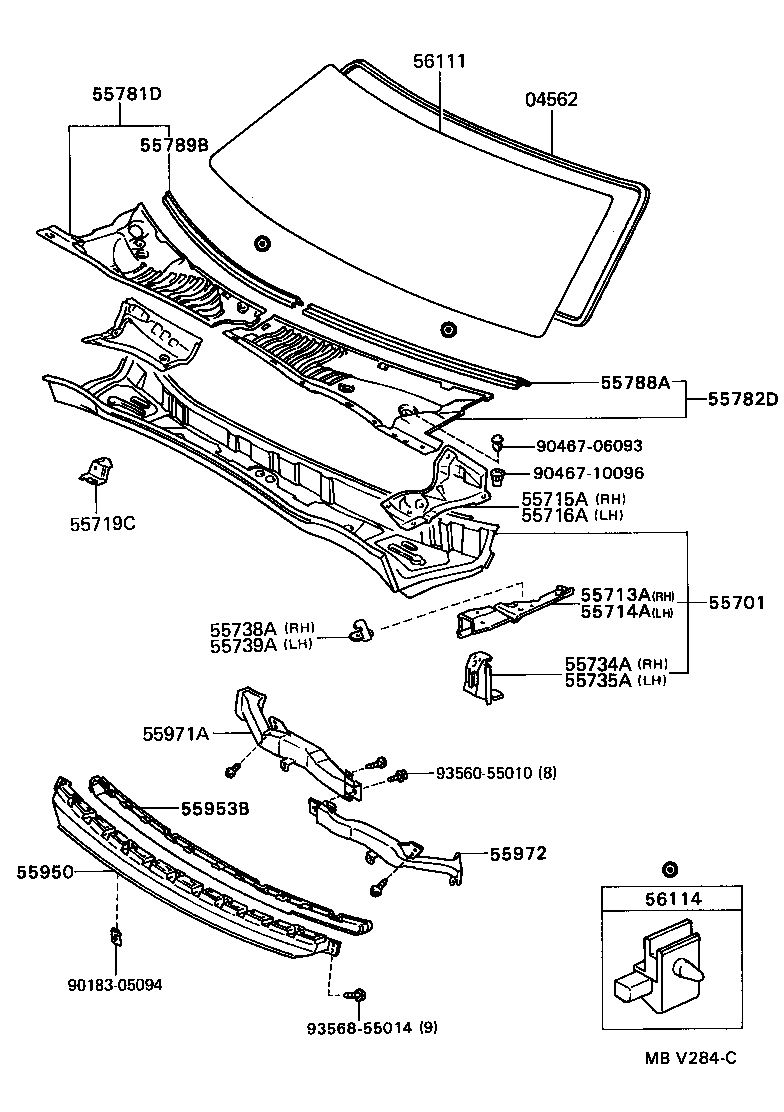

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55715A 55716A 55719C 55734A 55735A 55738A 55739A 55781D 55782D 55788A 55789B 55950 55953B 55971A 55972 56111 56114 9018305094 9046706093 9046710096 9356055010 9356855014
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

JZZ31,UZZ30

 1
55701 - PANEL SUB-ASSY, COWL
55700-24091

UZZ30

 1
55700-24090

UZZ30

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-24030

JZZ31,UZZ30

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-24030

JZZ31,UZZ30

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-24040

JZZ31,UZZ30

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-24040

JZZ31,UZZ30

 1
55719C - BRACKET, WINDSHIELD WIPER MOTOR
55719-24030

JZZ31,UZZ30

 1
55734A - PLATE, WATER GUARD, RH
55734-24040

JZZ31,UZZ30

 1
55735A - PLATE, WATER GUARD, LH
55735-24040

JZZ31,UZZ30

 1
55738A - STOPPER, HOOD, RH
55738-24020

JZZ31,UZZ30

 1
55739A - STOPPER, HOOD, LH
55739-24030

JZZ31,UZZ30

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-24060

JZZ31,UZZ30

 1
55782D - LOUVER, COWL TOP VENTILATOR, LH
55782-24030

JZZ31,UZZ30

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-24010

JZZ31,UZZ30

 1
55789B - PROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55789-24010

JZZ31,UZZ30

 1
55950 - NOZZLE ASSY, DEFROSTER
55951-24030

JZZ31,UZZ30

 1
55953B - NOZZLE, DEFROSTER, REAR
55953-24020

JZZ31,UZZ30

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-24050

JZZ31,UZZ30

 1
55971-24051

JZZ31,UZZ30

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-24030

JZZ31,UZZ30

 1
56111 - GLASS, WINDSHIELD
56111-24131

JZZ31,UZZ30

*LAM,T=4.7,GRAY

 1
56111-24130

JZZ31,UZZ30

*LAM,T=4.7,GRAY

 1
56111-24150

JZZ31,UZZ30

*LAM,T=4.7,GREEN

 1
56114 - RETAINER, WINDSHIELD GLASS
56110-24010

JZZ31,UZZ30

 2
Common parts
90183-05094
90467-06093
90467-10096
93560-55010
93568-55014
