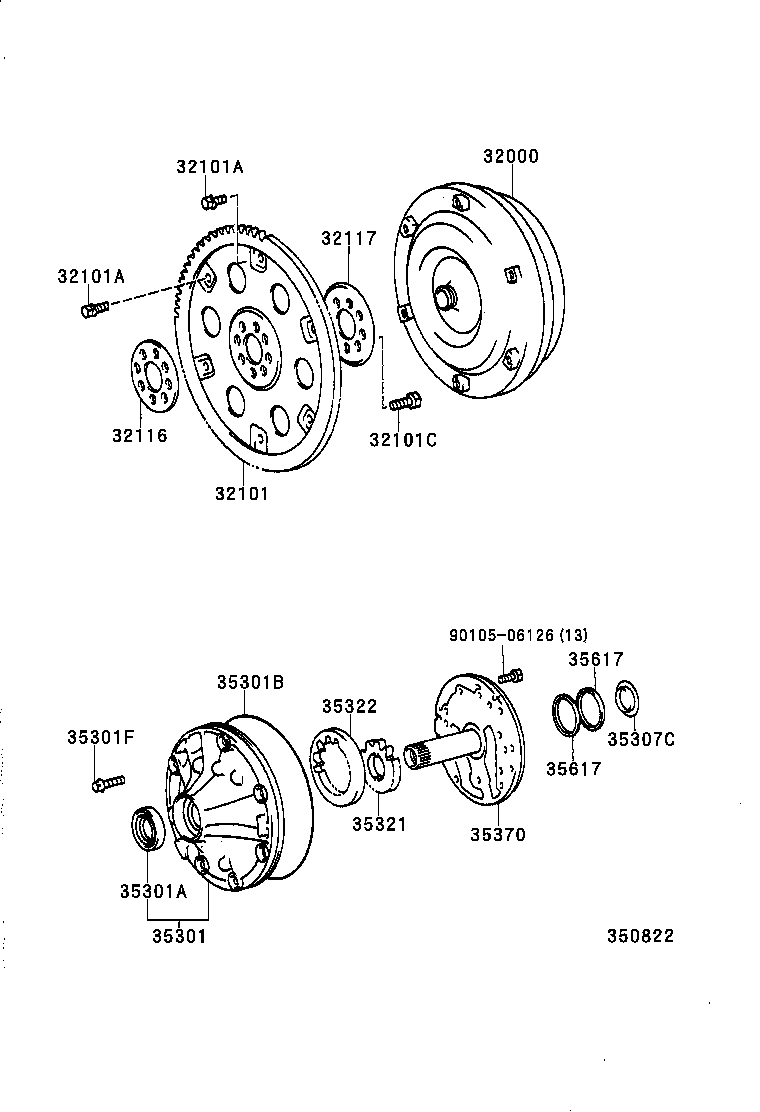

Toyota Lexus sc300/400 UZZ30 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
32000 - CONVERTER ASSY, TORQUE
32000-30330	UZZ30	07/1995 - 05/1997	1
32000-50020	UZZ30	01/1994 - 07/1995	1
32000-30331	UZZ30	05/1997 - 09/1997	1
32000-50010	UZZ30	04/1991 - 01/1994	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-50010	UZZ30	04/1991 - 12/2999	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009	JZZ31,UZZ30..4FC *9-1.25PX12.8-8.8,YELLOW	04/1991 - 07/1997	5
90119-09009	UZZ30 *9-1.25PX12.8-8.8,YELLOW	07/1997 - 09/1997	5
90119-09010	JZZ31,UZZ30..4FC *9-1.25PX12.8-9,GREEN	04/1991 - 07/1997	1
90119-09010	UZZ30 *9-1.25PX12.8-9,GREEN	07/1997 - 09/1997	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009	JZZ31,UZZ30..4FC *9-1.25PX12.8-8.8,YELLOW	04/1991 - 07/1997	5
90119-09009	UZZ30 *9-1.25PX12.8-8.8,YELLOW	07/1997 - 09/1997	5
90119-09010	JZZ31,UZZ30..4FC *9-1.25PX12.8-9,GREEN	04/1991 - 07/1997	1
90119-09010	UZZ30 *9-1.25PX12.8-9,GREEN	07/1997 - 09/1997	1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10226	UZZ30	04/1991 - 11/1993	6
90105-10226	UZZ30	11/1993 - 09/1997	8
32116 - SPACER, DRIVE PLATE, FRONT
32116-50010	UZZ30	04/1991 - 12/2999	1
32117 - SPACER, DRIVE PLATE, REAR
32117-50010	UZZ30	04/1991 - 12/2999	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010	UZZ30	04/1991 - 09/1997	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029	JZZ31,UZZ30..ATM	04/1991 - 07/2000	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033	JZZ31,UZZ30..ATM	04/1991 - 07/2000	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091	JZZ31,UZZ30..ATM *8-1.25PX35-35	04/1991 - 07/2000	7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020	JZZ31,UZZ30..ATM T=3.7	04/1991 - 06/1999	1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12020	UZZ30 T=10.690-10.699	04/1991 - 11/1995	1
35321-12050	UZZ30 T=10.721-10.730	11/1995 - 09/1997	1
35321-12040	UZZ30 T=10.710-10.720	11/1995 - 09/1997	1
35321-12020	UZZ30 T=10.690-10.699	08/1996 - 09/1997	1
35321-12060	UZZ30 T=10.731-10.740	11/1995 - 09/1997	1
35321-12030	UZZ30 T=10.700-10.709	11/1995 - 09/1997	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12020	UZZ30 T=10.700-10.709	11/1995 - 09/1997	1
35322-12010	UZZ30 T=10.690-10.699	04/1991 - 11/1995	1
35322-12050	UZZ30 T=10.731-10.740	11/1995 - 09/1997	1
35322-12040	UZZ30 T=10.721-10.730	11/1995 - 09/1997	1
35322-12010	UZZ30 T=10.690-10.699	08/1996 - 09/1997	1
35322-12030	UZZ30 T=10.710-10.720	11/1995 - 09/1997	1
35370 - SHAFT ASSY, STATOR
35370-50010	UZZ30	04/1991 - 09/1997	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020	JZZ31,UZZ30..ATM	04/1991 - 07/2000	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020	JZZ31,UZZ30..ATM	04/1991 - 07/2000	2
Common parts
90105-06126

UZZ30L-ACPZKK (1991)

(9104- )ATM
