Toyota Lexus sc300/400 UZZ30 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85385-24020A0	JZZ31,UZZ30 SUPER WHT PEARL MICA,051	04/1991 - 01/1994	2
85385-24020G0	JZZ31,UZZ30 BLUISH GREEN M.I.O,6M2	04/1991 - 01/1994	2
85385-24020C0	JZZ31,UZZ30 BLACK,202	04/1991 - 01/1994	2
85385-24020D0	JZZ31,UZZ30 RED MICA,3K3	04/1991 - 01/1994	2
85385-24020B0	JZZ31,UZZ30 BLUISH GRAY M.,182	09/1992 - 01/1994	2
85385-24020J0	JZZ31,UZZ30 DARK BLUE MCFP,8J5	04/1991 - 01/1994	2
85385-24010A0	JZZ31,UZZ30 SUPER WHT PEARL MICA,051	01/1994 - 08/1996	2
85385-24020D2	JZZ31,UZZ30 WINE RED MC.,3L4	08/1995 - 09/1997	2
85385-30020E1	JZZ31,UZZ30 BEIGE ME,4K9	06/1993 - 08/1996	2
85385-24020C0	JZZ31,UZZ30 BLACK,202	01/1994 - 08/1996	2
85385-24020E0	JZZ31,UZZ30 BEIGE METALLIC,4K9	04/1991 - 01/1994	2
85385-24020G1	JZZ31,UZZ30 GRAYISH GREEN M.,6M3	04/1991 - 01/1994	2
85385-24020G3	JZZ31,UZZ30 DK. GREEN M.M.,6P2	08/1996 - 09/1997	2
85385-24020G2	JZZ31,UZZ30 MI. GR. GREEN MCGR,6N1	01/1994 - 08/1995	2
85385-24020H0	UZZ30..USA SPECIAL EMPLOYED VEHICLE,DEEP TEAL ME.,752	04/1995 - 05/1995	2
85385-30010G1	JZZ31,UZZ30 BL.GREEN MIO.,6M2	01/1994 - 08/1996	2
85385-30010J0	JZZ31,UZZ30 DK.BLUE MCFP,8J5	01/1994 - 08/1996	2
85035 - NOZZLE SUB-ASSY, WASHER
85385-24020A0	JZZ31,UZZ30 SUPER WHT PEARL MICA,051	04/1991 - 01/1994	2
85385-24020G0	JZZ31,UZZ30 BLUISH GREEN M.I.O,6M2	04/1991 - 01/1994	2
85385-24020C0	JZZ31,UZZ30 BLACK,202	04/1991 - 01/1994	2
85385-24020D0	JZZ31,UZZ30 RED MICA,3K3	04/1991 - 01/1994	2
85385-24020B0	JZZ31,UZZ30 BLUISH GRAY M.,182	09/1992 - 01/1994	2
85385-24020J0	JZZ31,UZZ30 DARK BLUE MCFP,8J5	04/1991 - 01/1994	2
85385-24010A0	JZZ31,UZZ30 SUPER WHT PEARL MICA,051	01/1994 - 08/1996	2
85385-24020D2	JZZ31,UZZ30 WINE RED MC.,3L4	08/1995 - 09/1997	2
85385-30020E1	JZZ31,UZZ30 BEIGE ME,4K9	06/1993 - 08/1996	2
85385-24020C0	JZZ31,UZZ30 BLACK,202	01/1994 - 08/1996	2
85385-24020E0	JZZ31,UZZ30 BEIGE METALLIC,4K9	04/1991 - 01/1994	2
85385-24020G1	JZZ31,UZZ30 GRAYISH GREEN M.,6M3	04/1991 - 01/1994	2
85385-24020G3	JZZ31,UZZ30 DK. GREEN M.M.,6P2	08/1996 - 09/1997	2
85385-24020G2	JZZ31,UZZ30 MI. GR. GREEN MCGR,6N1	01/1994 - 08/1995	2
85385-24020H0	UZZ30..USA SPECIAL EMPLOYED VEHICLE,DEEP TEAL ME.,752	04/1995 - 05/1995	2
85385-30010G1	JZZ31,UZZ30 BL.GREEN MIO.,6M2	01/1994 - 08/1996	2
85385-30010J0	JZZ31,UZZ30 DK.BLUE MCFP,8J5	01/1994 - 08/1996	2
85301 - INLET SUB-ASSY, WASHER
85301-24010	JZZ31,UZZ30	04/1991 - 12/2999	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20190	JZZ31,UZZ30	04/1991 - 12/2999	1
85312 - PACKING, WINDSHIELD WASHER TANK
85312-24010	JZZ31,UZZ30	04/1991 - 12/2999	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-24080	JZZ31,UZZ30	09/1992 - 12/2999	1
85315-24030	JZZ31,UZZ30..USA	04/1991 - 09/1992	1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089	JZZ31,UZZ30	04/1991 - 12/2999	1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-24020	JZZ31,UZZ30..USA	04/1991 - 09/1992	1
85336-14120	JZZ31,UZZ30	09/1992 - 01/1994	1
85336-14120	JZZ31,UZZ30	07/1994 - 12/2999	1
85336-24020	JZZ31,UZZ30	01/1994 - 07/1994	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-12250	JZZ31,UZZ30	04/1991 - 12/2999	1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22480	JZZ31,UZZ30	04/1991 - 12/2999	1
85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2
85334-22470	JZZ31,UZZ30	04/1991 - 12/2999	1
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122	JZZ31,UZZ30	04/1991 - 08/1998	2
85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122	JZZ31,UZZ30	04/1991 - 08/1998	2
85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4
85375-24100	JZZ31,UZZ30	04/1991 - 12/2999	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075	JZZ31,UZZ30 *H,L=550,NO.3	04/1991 - 12/2999	1
90099-33075	JZZ31,UZZ30..4FC,5F L=300,NO.1	04/1991 - 12/2999	1
90099-33712	JZZ31,UZZ30 L=1300,NO.2	04/1991 - 12/2999	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075	JZZ31,UZZ30 *H,L=550,NO.3	04/1991 - 12/2999	1
90099-33075	JZZ31,UZZ30..4FC,5F L=300,NO.1	04/1991 - 12/2999	1
90099-33712	JZZ31,UZZ30 L=1300,NO.2	04/1991 - 12/2999	1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075	JZZ31,UZZ30 *H,L=550,NO.3	04/1991 - 12/2999	1
90099-33075	JZZ31,UZZ30..4FC,5F L=300,NO.1	04/1991 - 12/2999	1
90099-33712	JZZ31,UZZ30 L=1300,NO.2	04/1991 - 12/2999	1
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010	JZZ31,UZZ30	04/1991 - 12/2999	2
85371H - COVER, WASHER NOZZLE SERVICE HOLE
85371-50010	JZZ31,UZZ30	04/1991 - 12/2999	2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	JZZ31,UZZ30..4FC,5F *H,L=760,NO.1,NO.3,NO.2	04/1991 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	JZZ31,UZZ30..4FC,5F *H,L=760,NO.1,NO.3,NO.2	04/1991 - 12/2999	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	JZZ31,UZZ30..4FC,5F *H,L=760,NO.1,NO.3,NO.2	04/1991 - 12/2999	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33723	JZZ31,UZZ30 *H,L=180	04/1991 - 01/1994	2
90099-33080	JZZ31,UZZ30 *H,L=200	01/1994 - 12/2999	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33723	JZZ31,UZZ30 *H,L=180	04/1991 - 01/1994	2
90099-33080	JZZ31,UZZ30 *H,L=200	01/1994 - 12/2999	2
85374A - PROTECTOR, WASHER HOSE
85374-50010	JZZ31,UZZ30	04/1991 - 12/2999	1
Common parts
82711-20260
82711-22140
85365-50030
85387-24100
90119-06451
90119-08636
91656-A0825

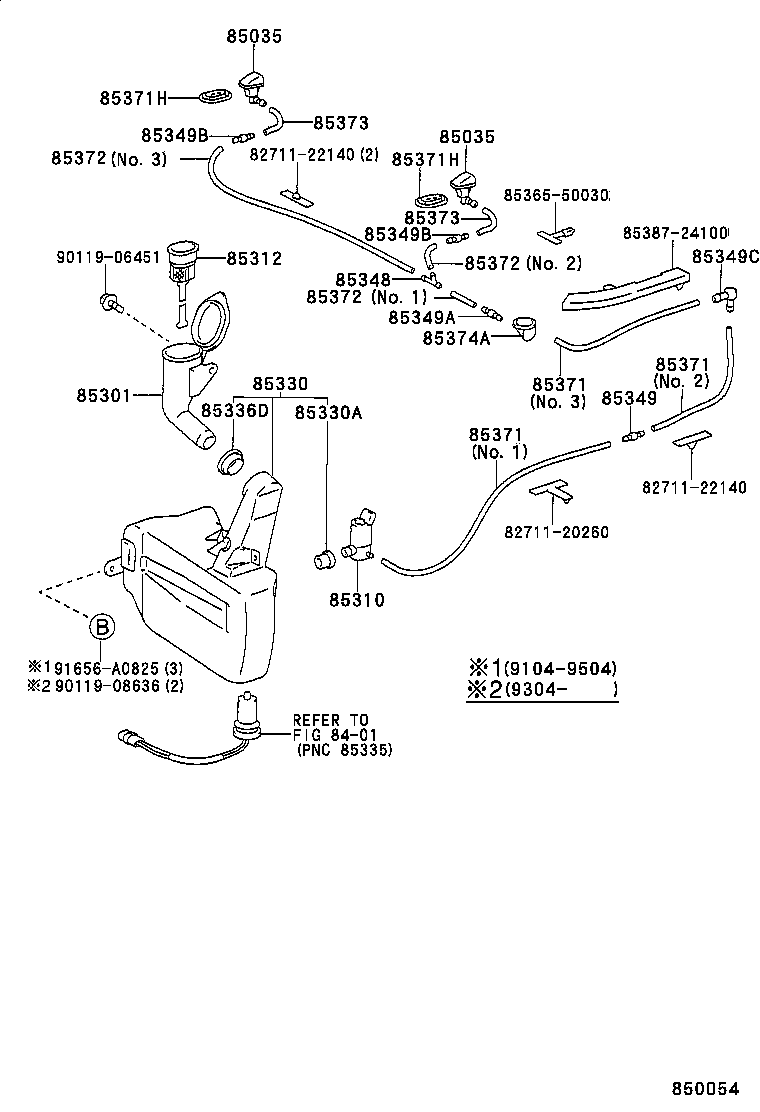

Linked diagrams
8401

UZZ30L-ACPZKA (1991)

(9104- )
