UZZ30L-ACPZKA (1991)

Toyota Lexus Sc300/400

Production Apr 1991 - Sep 1997
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9104-9608)

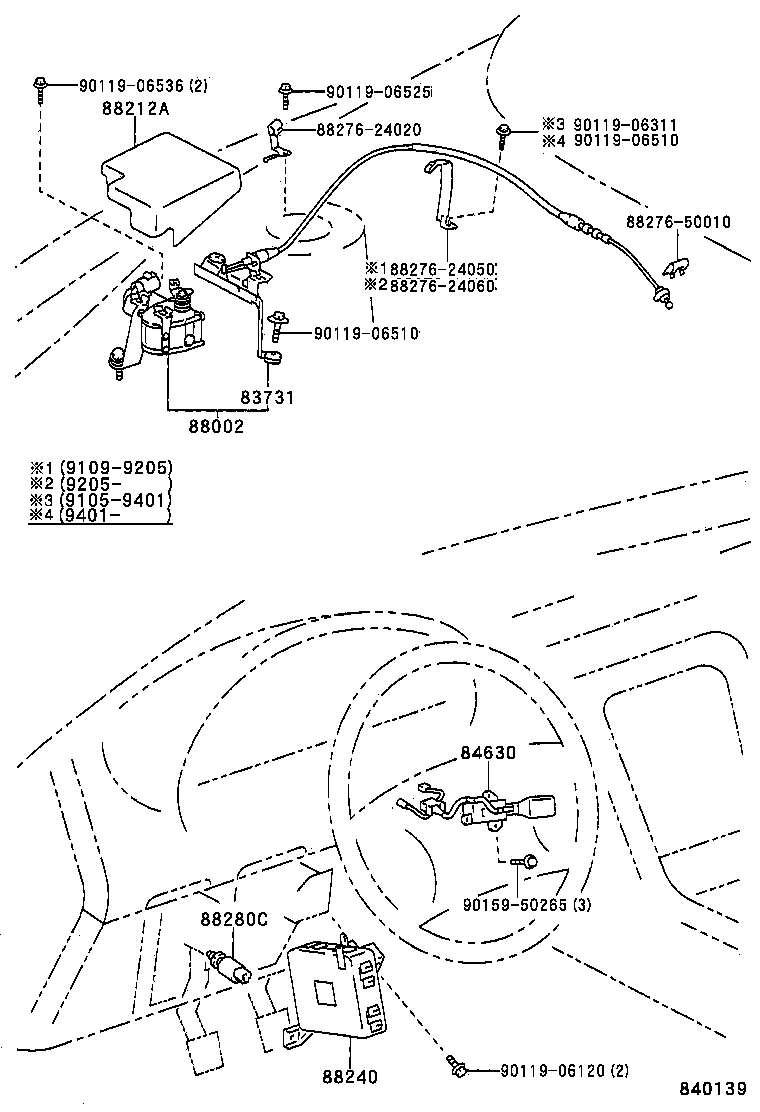

Click highlighted areas on diagram

diagram 83731 84630 88002 88212A 88240 8827624020 8827624050 8827624060 8827650010 88280C 9011906120 9011906311 9011906510 9011906510 9011906525 9011906536 9015950265
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-24020

UZZ30

 1
83731-24050

UZZ30

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-24050

JZZ31,UZZ30

 1
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-24010

UZZ30

 1
88002-24070

UZZ30

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-24050

JZZ31,UZZ30

 1
88212-24040

JZZ31,UZZ30

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-24130

UZZ30

 1
88240-24180

UZZ30

 1
88240-24210

UZZ30

 1
88240-24260

UZZ30

 1
Common parts
88276-24020
88276-24050
88276-24060
88276-50010
90119-06120
90119-06311
90119-06510
90119-06525
90119-06536
90159-50265

(9608- )

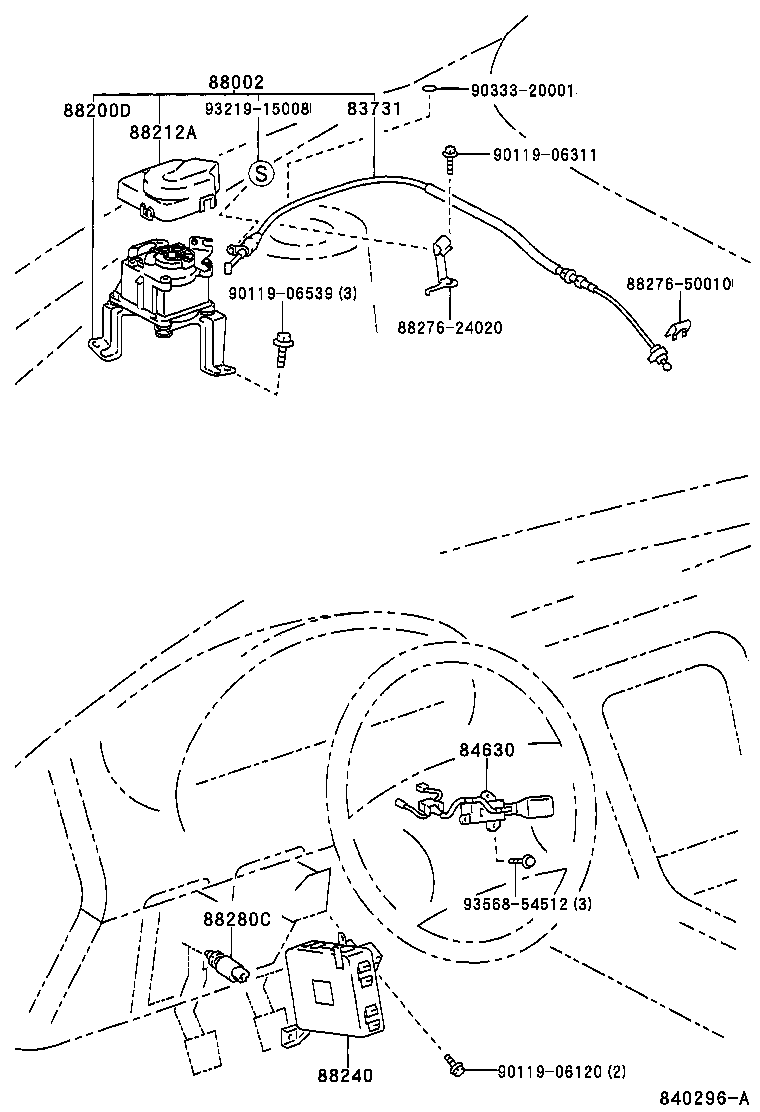

Click highlighted areas on diagram

diagram 83731 84630 88002 88200D 88212A 88240 8827624020 8827650010 88280C 9011906120 9011906311 9011906539 9033320001 9321915008 9356854512
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-24020

UZZ30

 1
83731-24050

UZZ30

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-24050

JZZ31,UZZ30

 1
88002 - CRUISE CONTROL(AUTO DRIVE) SET
88002-24010

UZZ30

 1
88002-24070

UZZ30

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-24030

JZZ31,UZZ30

 1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-24050

JZZ31,UZZ30

 1
88212-24040

JZZ31,UZZ30

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-24130

UZZ30

 1
88240-24180

UZZ30

 1
88240-24210

UZZ30

 1
88240-24260

UZZ30

 1
Common parts
88276-24020
88276-50010
90119-06120
90119-06311
90119-06539
90333-20001
93219-15008
93568-54512
