UZZ30L-ACAZKA (1997)

Toyota Lexus Sc300/400

Production Sep 1997 - Jul 2000
Engine 1UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9709- )

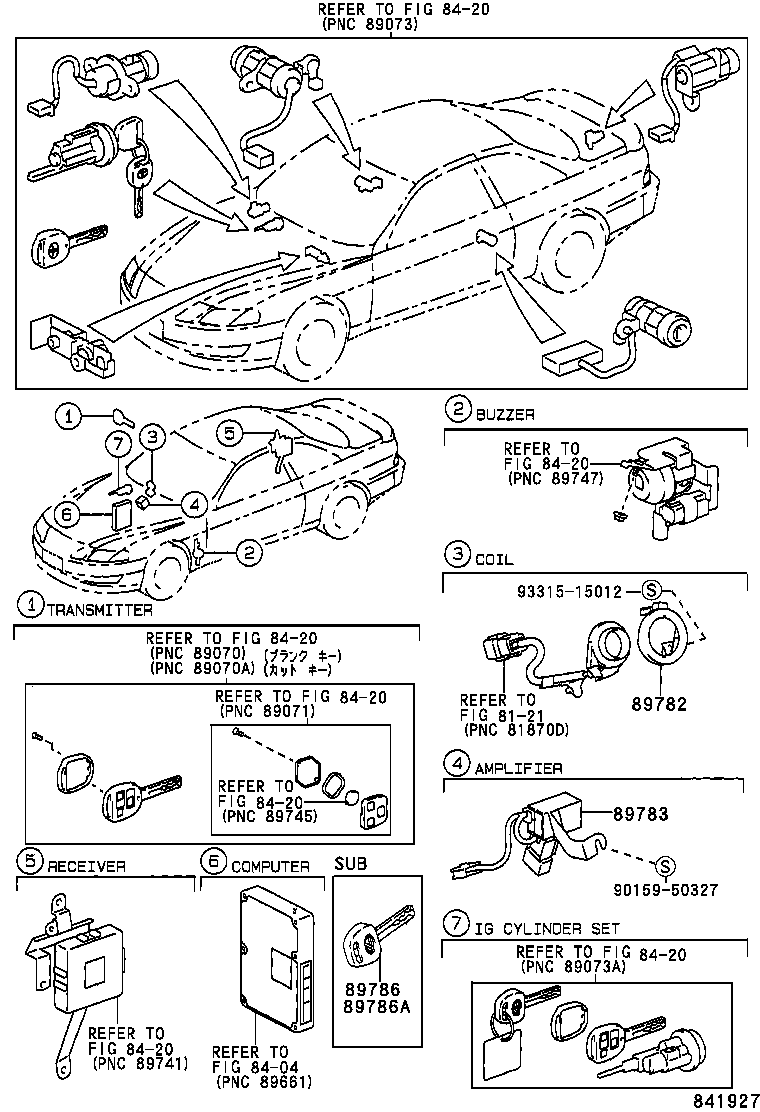

Click highlighted areas on diagram

diagram 8121 8404 8420 8420 8420 8420 8420 8420 8420 89782 89783 89786 89786A 9015950327 9331515012
Part # Description Qty Price
89782 - COIL, TRANSPONDER KEY
89782-24010

JZZ31,UZZ30

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-24020

JZZ31,UZZ30

 1
89783-24010

JZZ31,UZZ30

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-30020

JZZ31,UZZ30

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-50010

JZZ31,UZZ30

 1
Common parts
90159-50327
93315-15012
Linked diagrams
8121
8404
8420
