Toyota Lexus sc300/400 UZZ30 VACUUM PIPING

UZZ30L-ACAZKA (1997)

Toyota Lexus Sc300/400

Production Sep 1997 - Jul 2000

Engine 1UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9709-9908)1UZFE

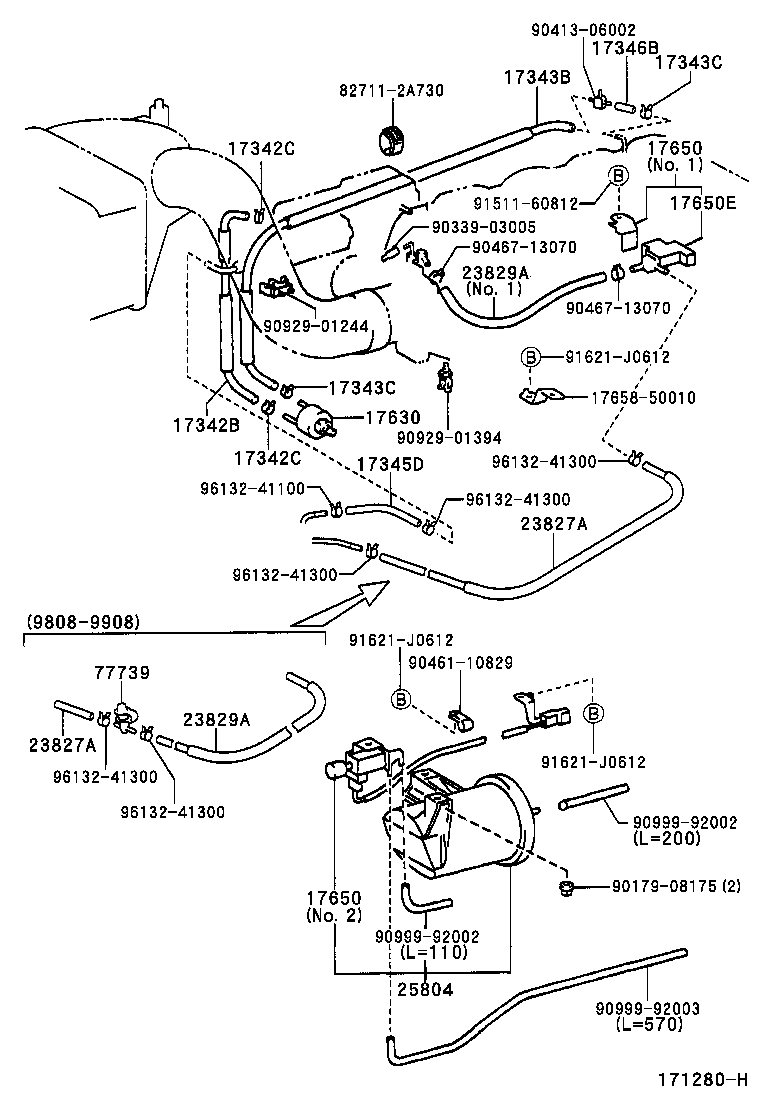

Click highlighted areas on diagram

Part #	Description	Period	Qty
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50030	1UZFE..UZZ30	04/1991 - 05/1995	1
17342-50110	1UZFE..UZZ30	09/1997 - 12/2999	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50020	1UZFE..UZZ30	04/1991 - 05/1995	1
17343-50090	1UZFE..UZZ30	09/1997 - 12/2999	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17345D - HOSE, AIR, NO.5
17345-50060	1UZFE..UZZ30	09/1997 - 08/1999	1
17346B - HOSE, AIR, NO.6
17346-50030	1UZFE..UZZ30	09/1997 - 12/2999	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UZZ30	04/1991 - 04/1995	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-24010	1UZFE..UZZ30 NO.1	04/1991 - 01/1994	1
25860-50121	1UZFE..UZZ30 NO.2	06/1998 - 12/2999	1
89470-50020	1UZFE..UZZ30 NO.3	04/1991 - 01/1994	1
89470-50011	1UZFE..UZZ30 NO.2	04/1991 - 01/1994	1
25860-50120	1UZFE..UZZ30 NO.2	09/1997 - 06/1998	1
25860-50100	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-24010	1UZFE..UZZ30 NO.1	04/1991 - 01/1994	1
25860-50121	1UZFE..UZZ30 NO.2	06/1998 - 12/2999	1
89470-50020	1UZFE..UZZ30 NO.3	04/1991 - 01/1994	1
89470-50011	1UZFE..UZZ30 NO.2	04/1991 - 01/1994	1
25860-50120	1UZFE..UZZ30 NO.2	09/1997 - 06/1998	1
25860-50100	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
17650E - VALVE, VACUUM SWITCHING
90910-12173	1UZFE..UZZ30	09/1997 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50100	1UZFE..UZZ30	08/1998 - 08/1999	1
23827-50040	1UZFE..UZZ30	09/1997 - 08/1998	1
23827-50130	1UZFE..UZZ30	08/1999 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50100	1UZFE..UZZ30	08/1998 - 08/1999	1
23827-50040	1UZFE..UZZ30	09/1997 - 08/1998	1
23827-50130	1UZFE..UZZ30	08/1999 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50120	1UZFE..UZZ30 NO.2	08/1999 - 12/2999	1
23829-50110	1UZFE..UZZ30 NO.2	08/1998 - 08/1999	1
23829-50070	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50120	1UZFE..UZZ30 NO.2	08/1999 - 12/2999	1
23829-50110	1UZFE..UZZ30 NO.2	08/1998 - 08/1999	1
23829-50070	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
25804 - VALVE SET, VACUUM CONTROL
25804-50010	1UZFE..UZZ30	09/1997 - 06/1998	1
25804-50011	1UZFE..UZZ30	06/1998 - 12/2999	1
77739 - VALVE, EVAP SERVICE PORT
77739-33010	UZZ30	08/1998 - 12/2999	1
Common parts
17658-50010
82711-2A730
90179-08175
90339-03005
90413-06002
90461-10829
90467-13070
90929-01244
90929-01394
90999-92002
90999-92003
91511-60812
91621-J0612
96132-41100
96132-41300

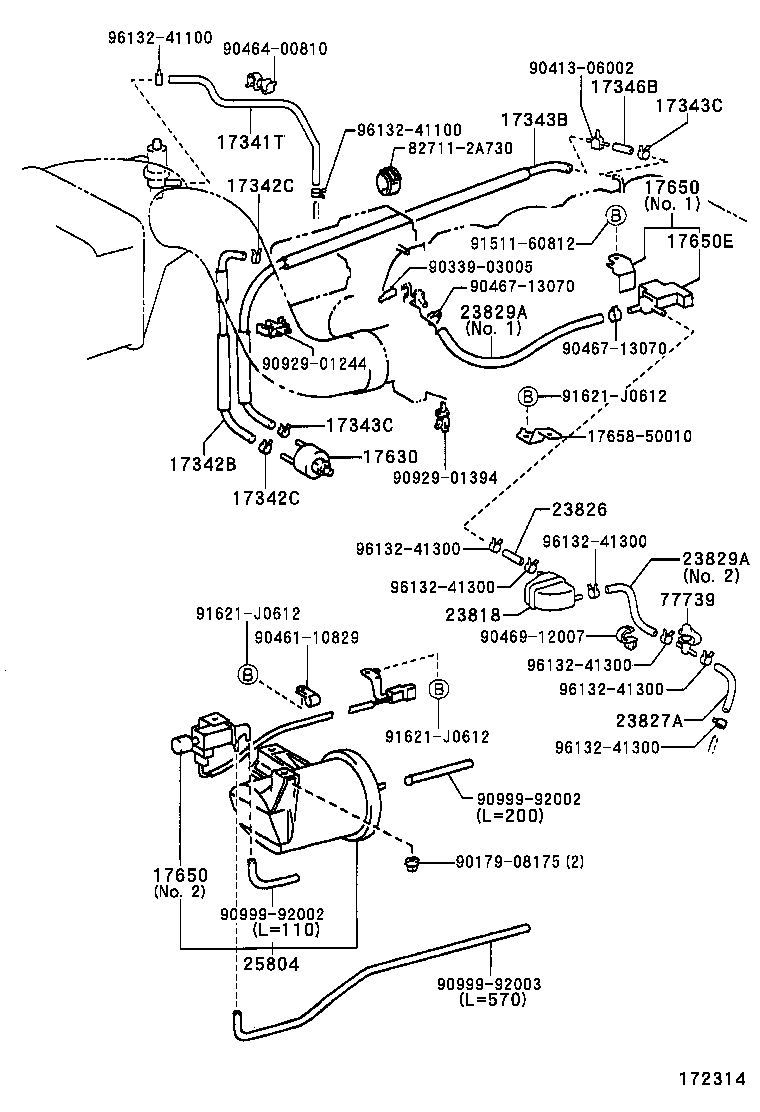

(9908- )1UZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341T - HOSE, AIR, NO.1
17341-50150	1UZFE..UZZ30	08/1999 - 12/2999	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50030	1UZFE..UZZ30	04/1991 - 05/1995	1
17342-50110	1UZFE..UZZ30	09/1997 - 12/2999	1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50020	1UZFE..UZZ30	04/1991 - 05/1995	1
17343-50090	1UZFE..UZZ30	09/1997 - 12/2999	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099	1UZFE..UZZ30	04/1991 - 12/2999	2
17346B - HOSE, AIR, NO.6
17346-50030	1UZFE..UZZ30	09/1997 - 12/2999	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	1UZFE..UZZ30	04/1991 - 04/1995	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-24010	1UZFE..UZZ30 NO.1	04/1991 - 01/1994	1
25860-50121	1UZFE..UZZ30 NO.2	06/1998 - 12/2999	1
89470-50020	1UZFE..UZZ30 NO.3	04/1991 - 01/1994	1
89470-50011	1UZFE..UZZ30 NO.2	04/1991 - 01/1994	1
25860-50120	1UZFE..UZZ30 NO.2	09/1997 - 06/1998	1
25860-50100	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
17650 - VALVE ASSY, VACUUM SWITCHING
89470-24010	1UZFE..UZZ30 NO.1	04/1991 - 01/1994	1
25860-50121	1UZFE..UZZ30 NO.2	06/1998 - 12/2999	1
89470-50020	1UZFE..UZZ30 NO.3	04/1991 - 01/1994	1
89470-50011	1UZFE..UZZ30 NO.2	04/1991 - 01/1994	1
25860-50120	1UZFE..UZZ30 NO.2	09/1997 - 06/1998	1
25860-50100	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
17650E - VALVE, VACUUM SWITCHING
90910-12173	1UZFE..UZZ30	09/1997 - 12/2999	1
23818 - PIPE, FUEL VAPOR FEED
23818-46110	1UZFE..UZZ30	08/1999 - 12/2999	1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-50030	1UZFE..UZZ30	08/1999 - 12/2999	1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-50100	1UZFE..UZZ30	08/1998 - 08/1999	1
23827-50040	1UZFE..UZZ30	09/1997 - 08/1998	1
23827-50130	1UZFE..UZZ30	08/1999 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50120	1UZFE..UZZ30 NO.2	08/1999 - 12/2999	1
23829-50110	1UZFE..UZZ30 NO.2	08/1998 - 08/1999	1
23829-50070	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
23829A - HOSE, FUEL VAPOR FEED
23829-50120	1UZFE..UZZ30 NO.2	08/1999 - 12/2999	1
23829-50110	1UZFE..UZZ30 NO.2	08/1998 - 08/1999	1
23829-50070	1UZFE..UZZ30 NO.1	09/1997 - 12/2999	1
25804 - VALVE SET, VACUUM CONTROL
25804-50010	1UZFE..UZZ30	09/1997 - 06/1998	1
25804-50011	1UZFE..UZZ30	06/1998 - 12/2999	1
77739 - VALVE, EVAP SERVICE PORT
77739-33010	UZZ30	08/1998 - 12/2999	1
Common parts
17658-50010
82711-2A730
90179-08175
90339-03005
90413-06002
90461-10829
90464-00810
90467-13070
90469-12007
90929-01244
90929-01394
90999-92002
90999-92003
91511-60812
91621-J0612
96132-41100
96132-41300

UZZ30L-ACAZKA (1997)

(9709-9908)1UZFE

(9908- )1UZFE
