JZZ31L-ACPVFA (1991)

Toyota Lexus Sc300/400

Production Aug 1991 - Jul 2000
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401-9608)

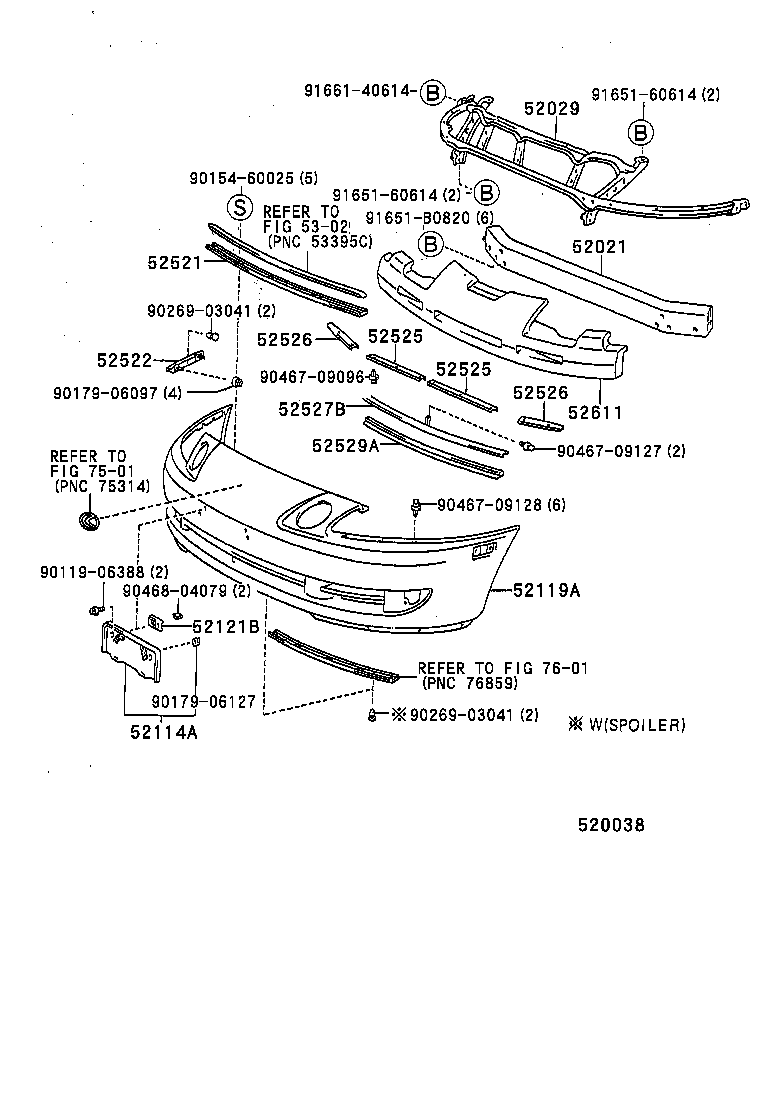

Click highlighted areas on diagram

diagram 52021 52029 52114A 52119A 52121B 52521 52522 52525 52526 52526 52611 5301 5302 7501 7501 7601 9011906388 9015460025 9017906097 9017906127 9026903041 9026903041 9046709096 9046709128 9046709165 9046709165 9046804079 9165160614 9165160614 91651B0820 9166140614 9166140614 9166140614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-24040

JZZ31,UZZ30

 1
52021-24041

JZZ31,UZZ30

 1
52131-24050

JZZ31,UZZ30

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-24030

JZZ31,UZZ30

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-24021

JZZ31,UZZ30

 1
52114-24040

JZZ31,UZZ30

 1
52114-24020

JZZ31,UZZ30

 1
52119A - COVER, FRONT BUMPER
52119-24904

JZZ31

 1
52119-24908

JZZ31,UZZ30

 1
52119-24914

JZZ31,UZZ30

 1
52119-24906

JZZ31

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-16030

JZZ31,UZZ30

 2
52121-24020

JZZ31,UZZ30

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-24040

JZZ31,UZZ30

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-24010

JZZ31,UZZ30

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-24020

JZZ31,UZZ30

 1
52525-24030

JZZ31,UZZ30

 2
52525-24040

JZZ31,UZZ30

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-24030

JZZ31,UZZ30

 2
52526-24040

JZZ31,UZZ30

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-24030

JZZ31,UZZ30

 2
52526-24040

JZZ31,UZZ30

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-24030

JZZ31,UZZ30

 1
52611-24041

JZZ31,UZZ30

 1
52611-24040

JZZ31,UZZ30

 1
Common parts
90119-06388
90154-60025
90179-06097
90179-06127
90269-03041
90467-09096
90467-09128
90467-09165
90468-04079
91651-60614
91651-B0820
91661-40614
Linked diagrams
5301
5302
7501
7601

(9104-9401)

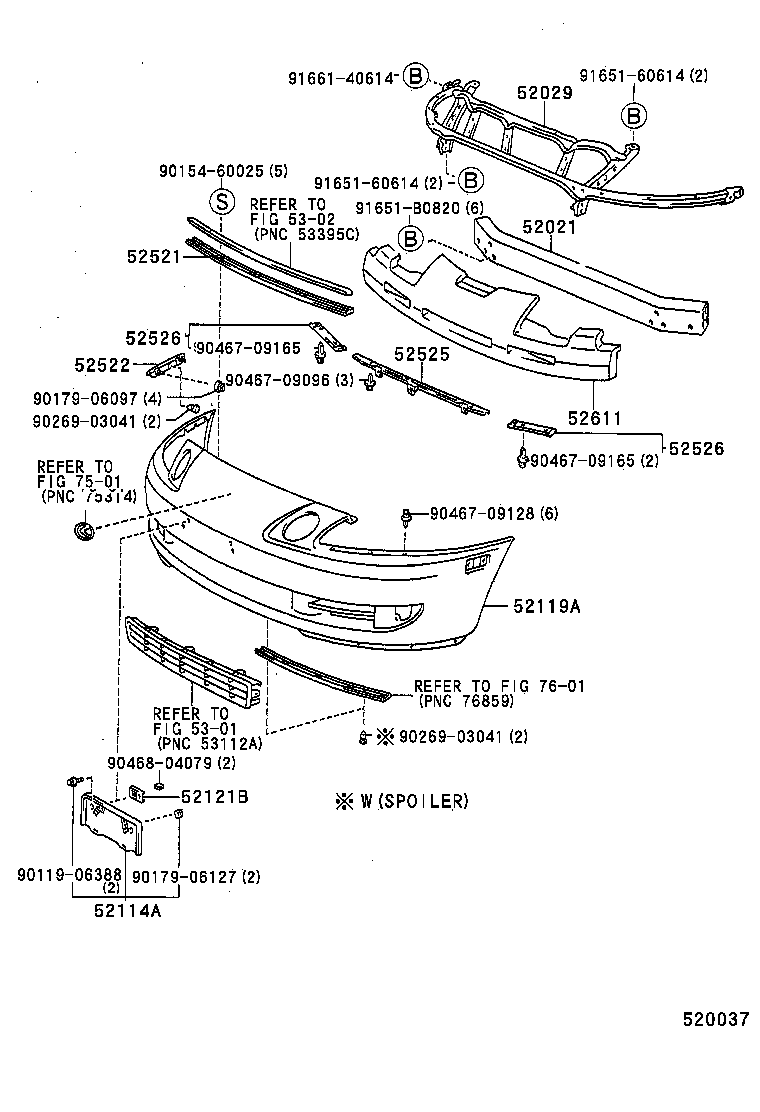

Click highlighted areas on diagram

diagram 52021 52029 52114A 52119A 52121B 52521 52522 52525 52525 52526 52526 52527B 52529A 52611 5302 5302 7501 7601 9011906388 9015460025 9017906097 9017906127 9026903041 9026903041 9046709096 9046709127 9046709128 9046804079 9165160614 9165160614 91651B0820 9166140614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-24040

JZZ31,UZZ30

 1
52021-24041

JZZ31,UZZ30

 1
52131-24050

JZZ31,UZZ30

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-24030

JZZ31,UZZ30

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-24021

JZZ31,UZZ30

 1
52114-24040

JZZ31,UZZ30

 1
52114-24020

JZZ31,UZZ30

 1
52119A - COVER, FRONT BUMPER
52119-24904

JZZ31

 1
52119-24908

JZZ31,UZZ30

 1
52119-24914

JZZ31,UZZ30

 1
52119-24906

JZZ31

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-16030

JZZ31,UZZ30

 2
52121-24020

JZZ31,UZZ30

 2
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-24040

JZZ31,UZZ30

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-24010

JZZ31,UZZ30

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-24020

JZZ31,UZZ30

 1
52525-24030

JZZ31,UZZ30

 2
52525-24040

JZZ31,UZZ30

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-24020

JZZ31,UZZ30

 1
52525-24030

JZZ31,UZZ30

 2
52525-24040

JZZ31,UZZ30

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-24030

JZZ31,UZZ30

 2
52526-24040

JZZ31,UZZ30

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-24030

JZZ31,UZZ30

 2
52526-24040

JZZ31,UZZ30

 2
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52506-24020

JZZ31,UZZ30

 1
52529A - RETAINER, FRONT BUMPER, LOWER CENTER NO.3
52529-24030

JZZ31,UZZ30

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-24030

JZZ31,UZZ30

 1
52611-24041

JZZ31,UZZ30

 1
52611-24040

JZZ31,UZZ30

 1
Common parts
90119-06388
90154-60025
90179-06097
90179-06127
90269-03041
90467-09096
90467-09127
90467-09128
90468-04079
91651-60614
91651-B0820
91661-40614
Linked diagrams
5302
7501
7601

(9608- )

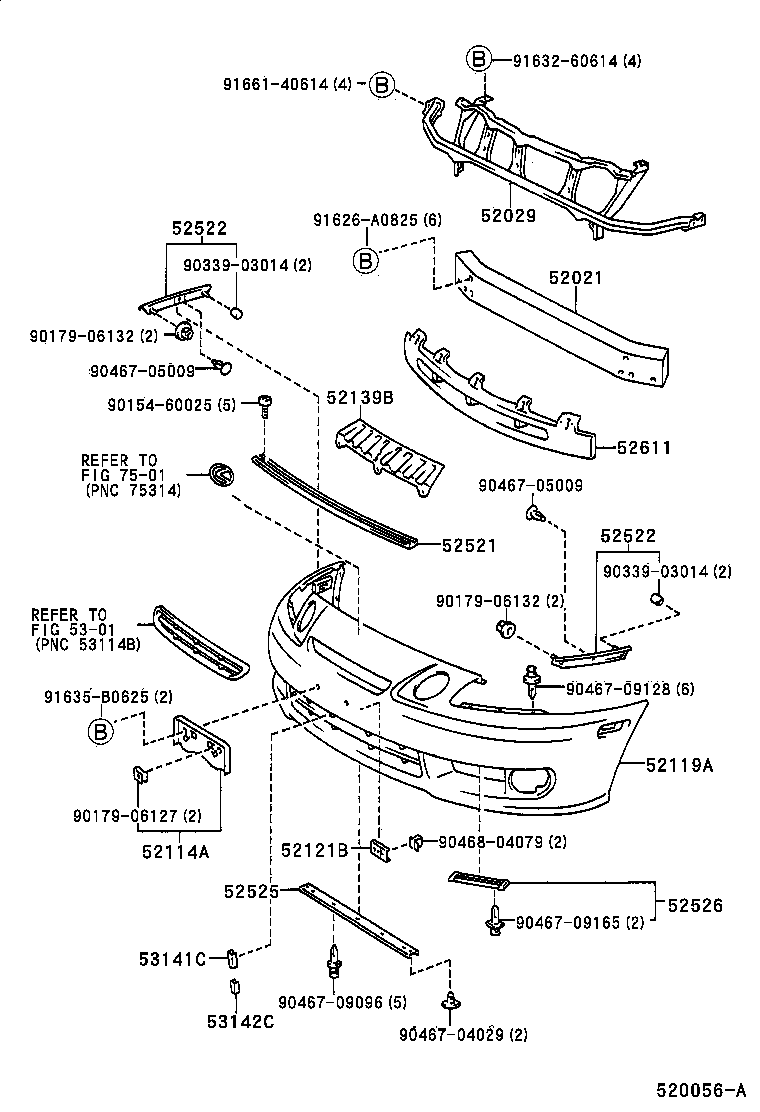

Click highlighted areas on diagram

diagram 52021 52029 52114A 52119A 52121B 52139B 52521 52522 52522 52525 52526 52611 5301 53141C 53142C 7501 9015460025 9017906127 9017906132 9017906132 9033903014 9033903014 9046704029 9046705009 9046705009 9046709096 9046709128 9046709165 9046804079 91626A0825 9163260614 91635B0625 9166140614
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-24040

JZZ31,UZZ30

 1
52021-24041

JZZ31,UZZ30

 1
52131-24050

JZZ31,UZZ30

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-24030

JZZ31,UZZ30

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-24021

JZZ31,UZZ30

 1
52114-24040

JZZ31,UZZ30

 1
52114-24020

JZZ31,UZZ30

 1
52119A - COVER, FRONT BUMPER
52119-24904

JZZ31

 1
52119-24908

JZZ31,UZZ30

 1
52119-24914

JZZ31,UZZ30

 1
52119-24906

JZZ31

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-16030

JZZ31,UZZ30

 2
52121-24020

JZZ31,UZZ30

 2
52139B - BRACE, FRONT BUMPER, CENTER
52139-24010

JZZ31,UZZ30

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-24040

JZZ31,UZZ30

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-24010

JZZ31,UZZ30

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-24010

JZZ31,UZZ30

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-24020

JZZ31,UZZ30

 1
52525-24030

JZZ31,UZZ30

 2
52525-24040

JZZ31,UZZ30

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-24030

JZZ31,UZZ30

 2
52526-24040

JZZ31,UZZ30

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-24030

JZZ31,UZZ30

 1
52611-24041

JZZ31,UZZ30

 1
52611-24040

JZZ31,UZZ30

 1
53141C - GARNISH, RADIATOR GRILLE
53141-24010

JZZ31,UZZ30

 1
53142C - GARNISH, RADIATOR GRILLE, NO.2
53142-24010

JZZ31,UZZ30

 1
Common parts
90154-60025
90179-06127
90179-06132
90339-03014
90467-04029
90467-05009
90467-09096
90467-09128
90467-09165
90468-04079
91626-A0825
91632-60614
91635-B0625
91661-40614
Linked diagrams
5301
7501
