JZZ31L-ACMVFA (1991)
Toyota Lexus Sc300/400
(9505- )2JZGE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

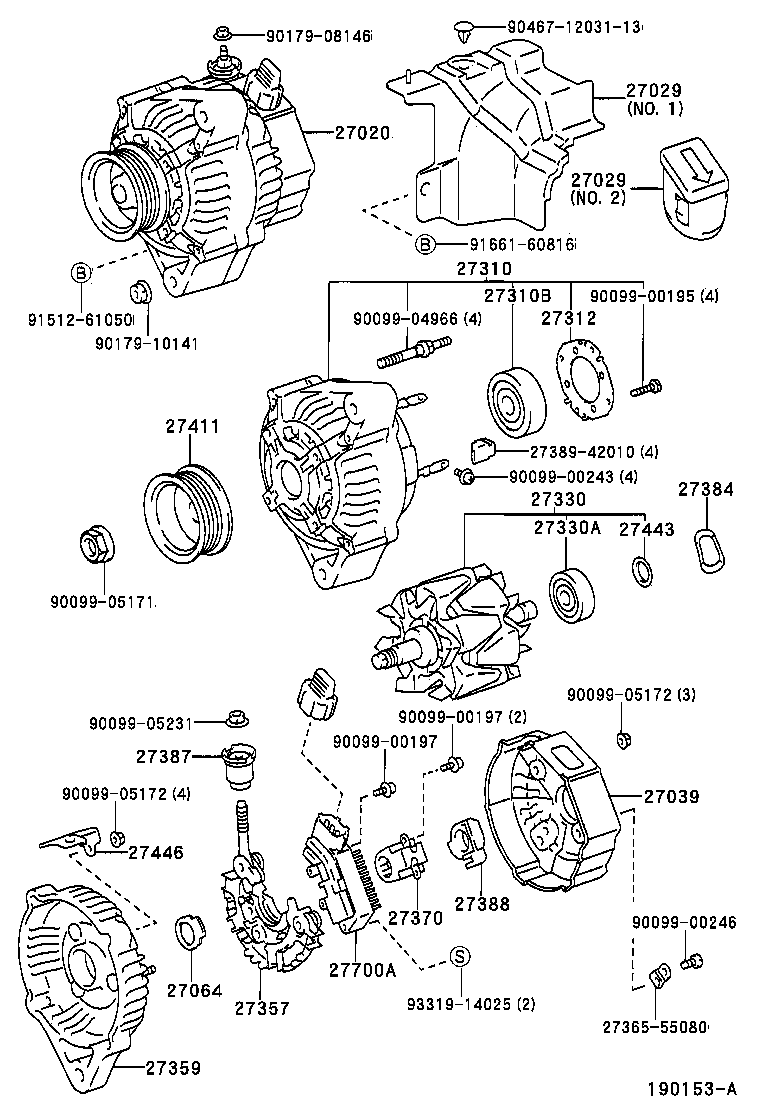

| 27020 - ALTERNATOR ASSY | ||||
| 27060-46180 |
2JZGE..JZZ31 12V 80A |
1 | ||
| 27060-46121 |
2JZGE..JZZ31 12V 100A |
1 | ||
| 27060-46250 |
2JZGE..JZZ31 12V 80A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-46030 |
2JZGE,1UZFE..JZZ31,UZZ30 NO.1 |
1 | ||
| 27029-46020 |
2JZGE,1UZFE..JZZ31,UZZ30 NO.2 |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-46030 |
2JZGE,1UZFE..JZZ31,UZZ30 NO.1 |
1 | ||
| 27029-46020 |
2JZGE,1UZFE..JZZ31,UZZ30 NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-46290 |
2JZGE..JZZ31 |
1 | ||
| 27039-46170 |
2JZGE..JZZ31 |
1 | ||
| 27039-50030 |
2JZGE,1UZFE..JZZ31,UZZ30 NO.2 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-46290 |
2JZGE..JZZ31 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-46090 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27330-46290 |
2JZGE..JZZ31 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10194 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46180 |
2JZGE..JZZ31 |
1 | ||
| 27357-46290 |
2JZGE..JZZ31 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-46290 |
2JZGE..JZZ31 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42040 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
2JZGE..JZZ31 |
1 | ||
| 27388-42010 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27388-42010 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
2JZGE..JZZ31;1UZFE..UZZ30..5FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2JZGE,1UZFE..JZZ31,UZZ30 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-46160 |
2JZGE..JZZ31 |
1 | ||
| 27446-46230 |
2JZGE..JZZ31 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
2JZGE..JZZ31 |
1 | ||
| 27700-46060 |
2JZGE..JZZ31 |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-08146 | ||||
| 90179-10141 | ||||
| 90467-1203113 | ||||
| 91512-61050 | ||||
| 91661-60816 | ||||
| 93319-14025 | ||||
