GYL26L-ARXGBA (2019)
Toyota Lexus Rx450hl/350l
Production
Aug 2019
-
Sep 9999
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(1908- )GYL26
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87200D - ACCESSORY ASSY, HEATER | ||||
| 87200-48140 |
GYL26 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87209-48340 |
GYL26 |
1 | ||
| Common parts | ||||
| 87121-48030 | ||||
| 88718-48510 | ||||
| 88718-48630 | ||||
| 91553-80820 | ||||
| 91673-80616 | ||||
| 96138-42501 | ||||
| 96138-52501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(1908- )GYL26
Click highlighted areas on diagram
REAR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87208-48180 |
GYL26 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-48F91 |
GYL26 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87248-48210 |
GYL26 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-48G01 |
GYL26 |
1 | ||
| Common parts | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 8718 | ||||

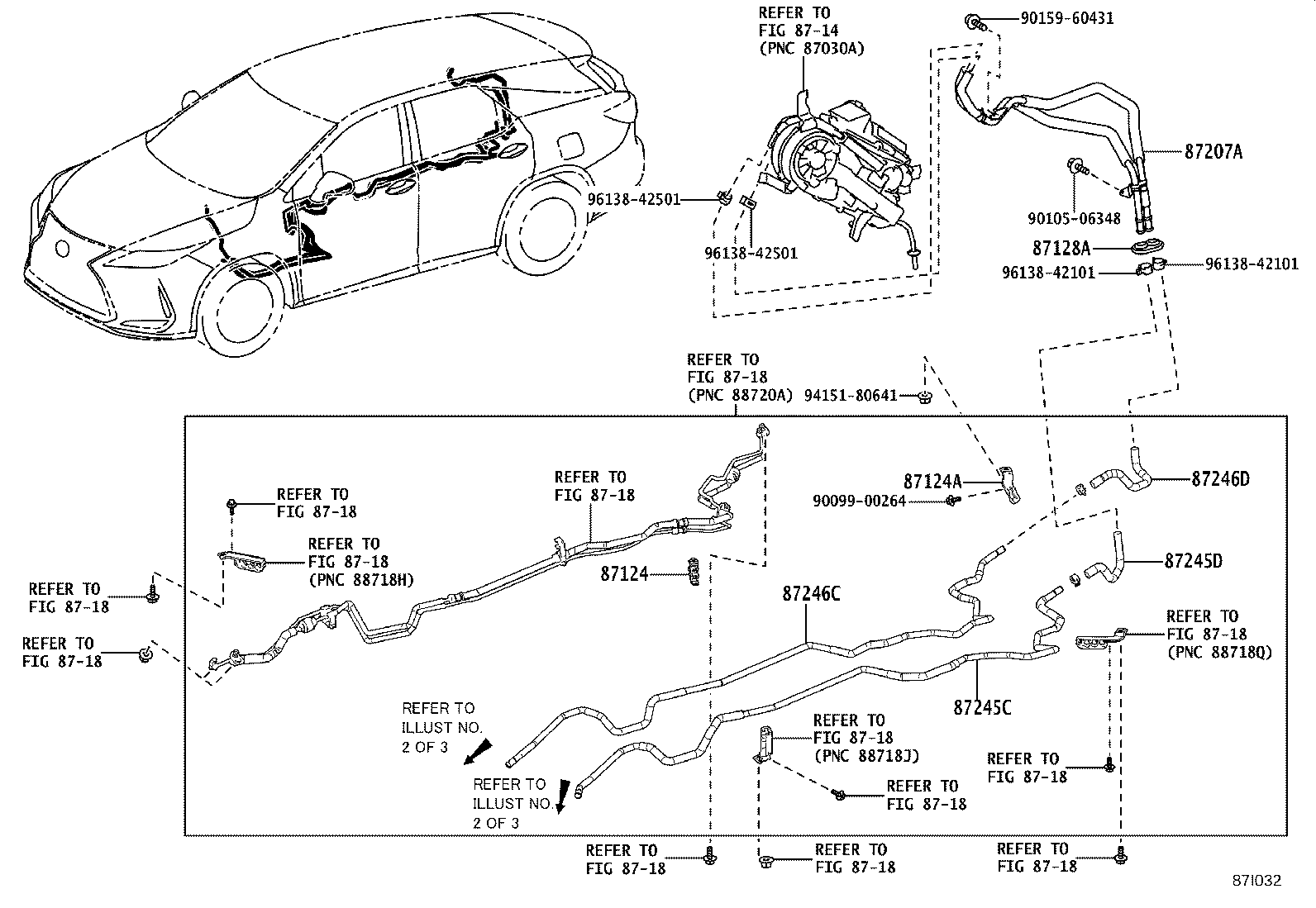

ILLUST NO. 3 OF 3(1908- )GYL26
Click highlighted areas on diagram
REAR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87124 - CLAMP, HEATER | ||||
| 87124-60180 |
GGL2#,GYL26 |
1 | ||
| 87124A - CLAMP, HEATER | ||||
| 88718-48690 |
GGL2#,GYL26 |
1 | ||
| 87128A - GROMMET, HEATER | ||||
| 87128-48090 |
GGL2#,GYL26 |
1 | ||
| 87207A - PIPE & HOSE SUB-ASSY, WATER A | ||||
| 87207-48090 |
GGL2#,GYL26 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87208-48200 |
GGL2#,GYL26 |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-48G10 |
GGL2#,GYL26 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87208-48190 |
GGL2#,GYL26 |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87245-48G20 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 90099-00264 | ||||
| 90105-06348 | ||||
| 90159-60431 | ||||
| 94151-80641 | ||||
| 96138-42101 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8718 | ||||
