GYL26L-ARXGBA (2017)

Toyota Lexus Rx450hl/350l

Production Dec 2017 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1908)

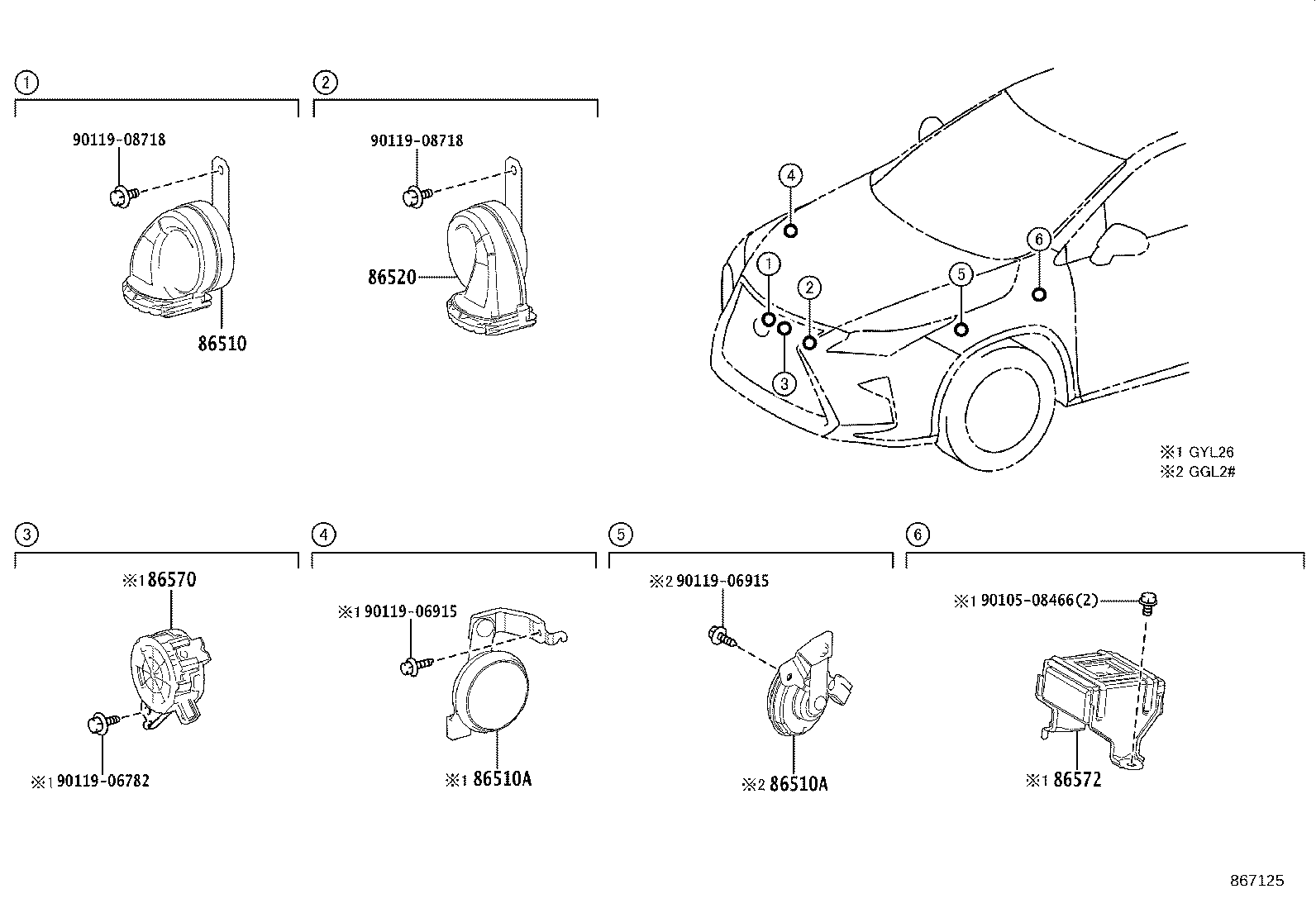

Click highlighted areas on diagram

diagram 86510 86510A 86510A 86520 86570 86572 9010508466 9011906782 9011906915 9011906915 9011908718 9011908718
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-48190

GGL2#,GYL26

 1
86510A - HORN ASSY, SECURITY
86560-48050

GYL26

 1
86510A - HORN ASSY, SECURITY
86560-48050

GYL26

 1
86520 - HORN ASSY, LOW PITCHED
86520-30670

GGL2#,GYL26

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-48050

GYL26

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-48050

GYL26

 1
Common parts
90105-08466
90119-06782
90119-06915
90119-08718
