GYL26L-ARXGBA (2017)

Toyota Lexus Rx450hl/350l

Production Dec 2017 - Aug 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1908)

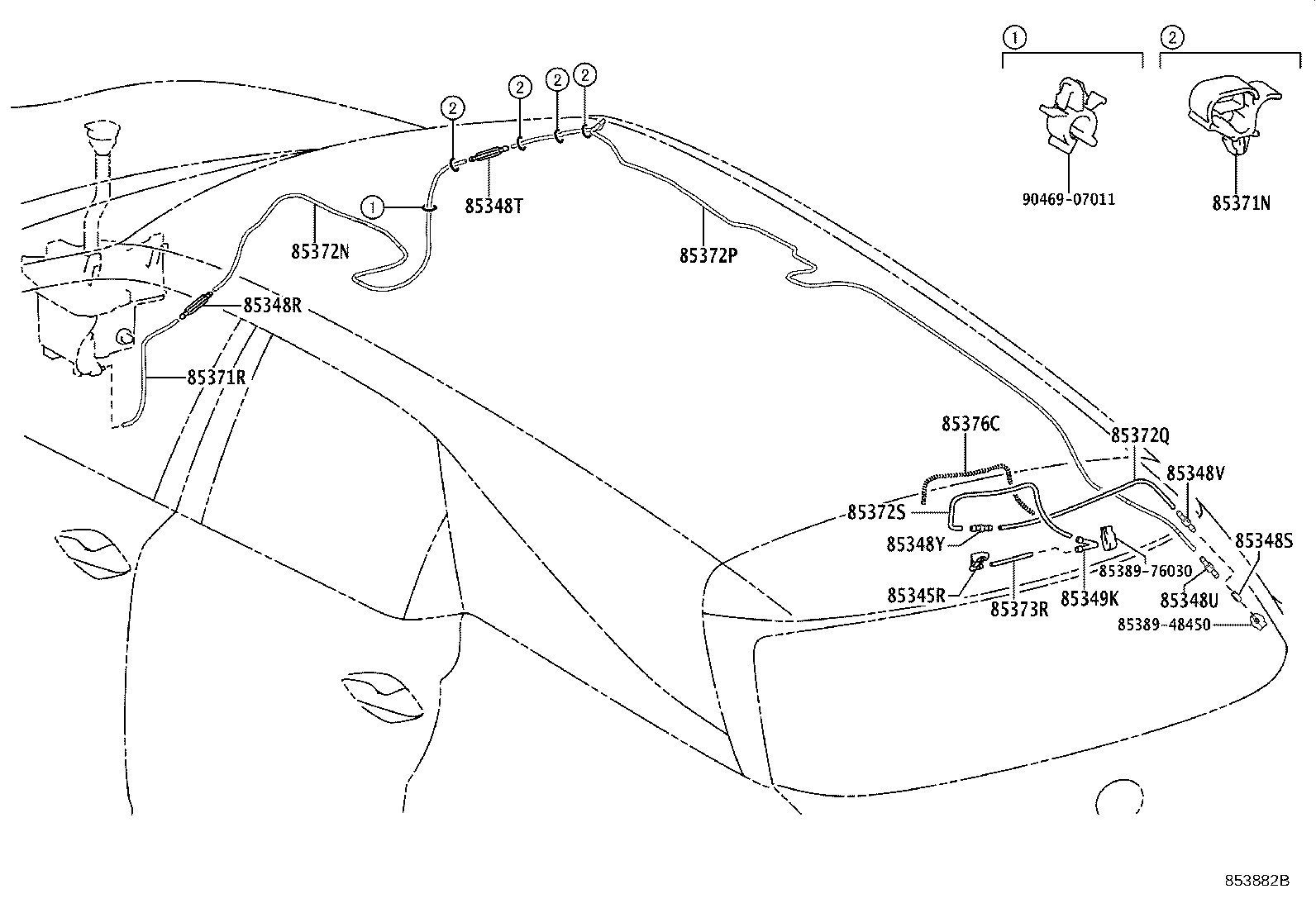

Click highlighted areas on diagram

diagram 85345R 85348R 85348S 85348T 85348U 85348V 85348Y 85349K 85371N 85371R 85372N 85372P 85372Q 85372S 85373R 85376C 8538948450 8538976030 9046907011
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85391-48090

GGL2#,GYL26

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85385-48320

GGL2#,GYL26

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85375-33040

GGL2#,GYL26

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-32150

GGL2#,GYL26

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

GGL2#,GYL26

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

GGL2#,GYL26

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

GGL2#,GYL26

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-12360

GGL2#,GYL26

 1
85371N - CLAMP, REAR WASHER HOSE
85371-48030

GGL2#,GYL26

 4
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

GGL2#,GYL26

*H,L=300

 1
90099-33080

GGL2#,GYL26

*H,L=300,COLD AREA SPEC

 1
90099-33080

GGL2#,GYL26

*H,L=300,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
90099-33080

GGL2#,GYL26

*H,L=300,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62148

GGL2#,GYL26

L=1900,"VERSION L"*(L)

 1
90099-62148

GGL2#,GYL26

L=1900,PREMIUM PACKAGE

 1
90099-62148

GGL2#,GYL26

L=1900

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33803

GGL2#,GYL26

L=3145,PREMIUM PACKAGE

 1
90099-33803

GGL2#,GYL26

L=3145,"VERSION L"*(L)

 1
90099-33803

GGL2#,GYL26

L=3145

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GGL2#,GYL26

*H,L=430,PREMIUM PACKAGE

 1
90099-33080

GGL2#,GYL26

*H,L=430

 1
90099-33080

GGL2#,GYL26

*H,L=430,"VERSION L"*(L)

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

GGL2#,GYL26

*H,L=460,"VERSION L"*(L)

 1
90099-33080

GGL2#,GYL26

*H,L=460,PREMIUM PACKAGE

 1
90099-33080

GGL2#,GYL26

*H,L=460

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

GGL2#,GYL26

*H,L=135

 1
90099-33080

GGL2#,GYL26

*H,L=135,PREMIUM PACKAGE

 1
90099-33080

GGL2#,GYL26

*H,L=135,"VERSION L"*(L)

 1
85376C - SPRING, WASHER HOSE
85389-26290

GGL2#,GYL26

 1
Common parts
85389-48450
85389-76030
90469-07011
