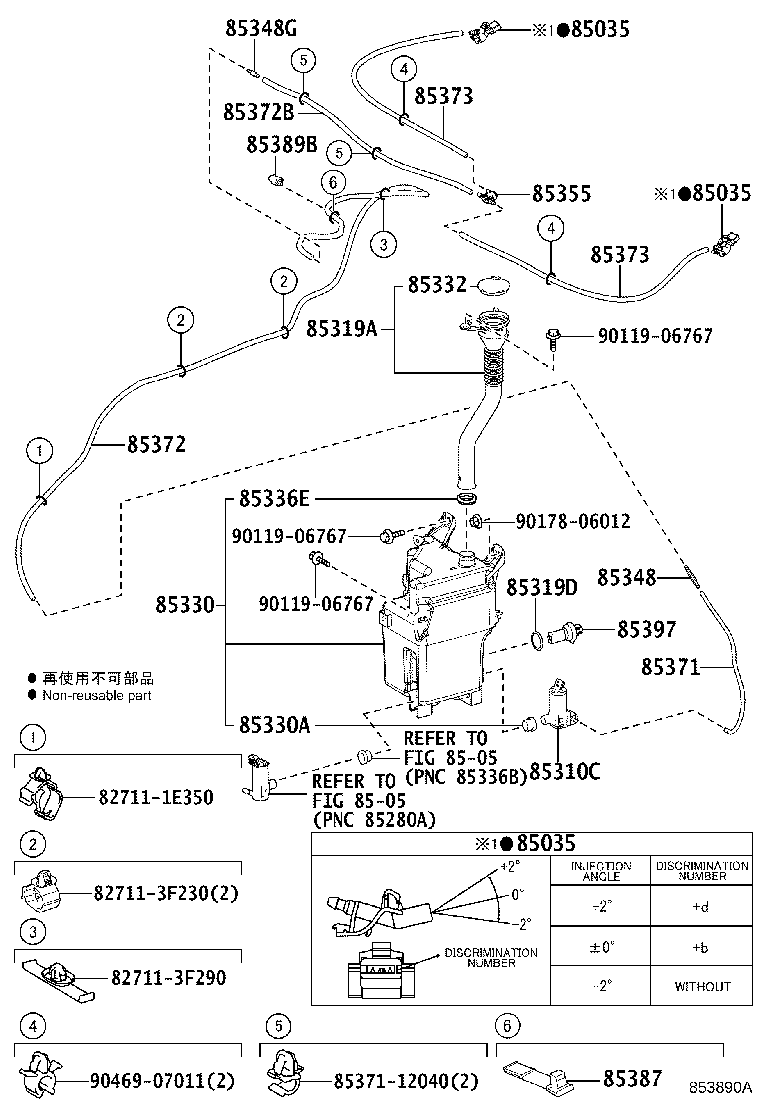

GGL26L-ARZGBA (2017)
Toyota Lexus Rx450hl/350l
(1712-1908)
W/O(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85310C - MOTOR & PUMP ASSY, WASHER | ||||
| 85330-47100 |
GGL2#,GYL26 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85316-48270 |
GGL2#,GYL26 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GGL2#,GYL26 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-48070 |
GGL2#,GYL26 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85355-48070 |
GGL2#,GYL26 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85355-48070 |
GGL2#,GYL26 COLD AREA SPEC |
1 | ||
| 85315-48280 |
GGL2#,GYL26 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GGL2#,GYL26 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48280 |
GGL2#,GYL26 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
GGL2#,GYL26 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85385-48320 |
GGL2#,GYL26 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
GGL2#,GYL26 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GGL2#,GYL26 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,COLD AREA SPEC |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320 |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
GGL2#,GYL26 *H,L=1920 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=330 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=330 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-48470 |
GGL2#,GYL26 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-78020 |
GGL2#,GYL26 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82711-3F290 | ||||
| 85371-12040 | ||||
| 90119-06767 | ||||
| 90178-06012 | ||||
| 90469-07011 | ||||

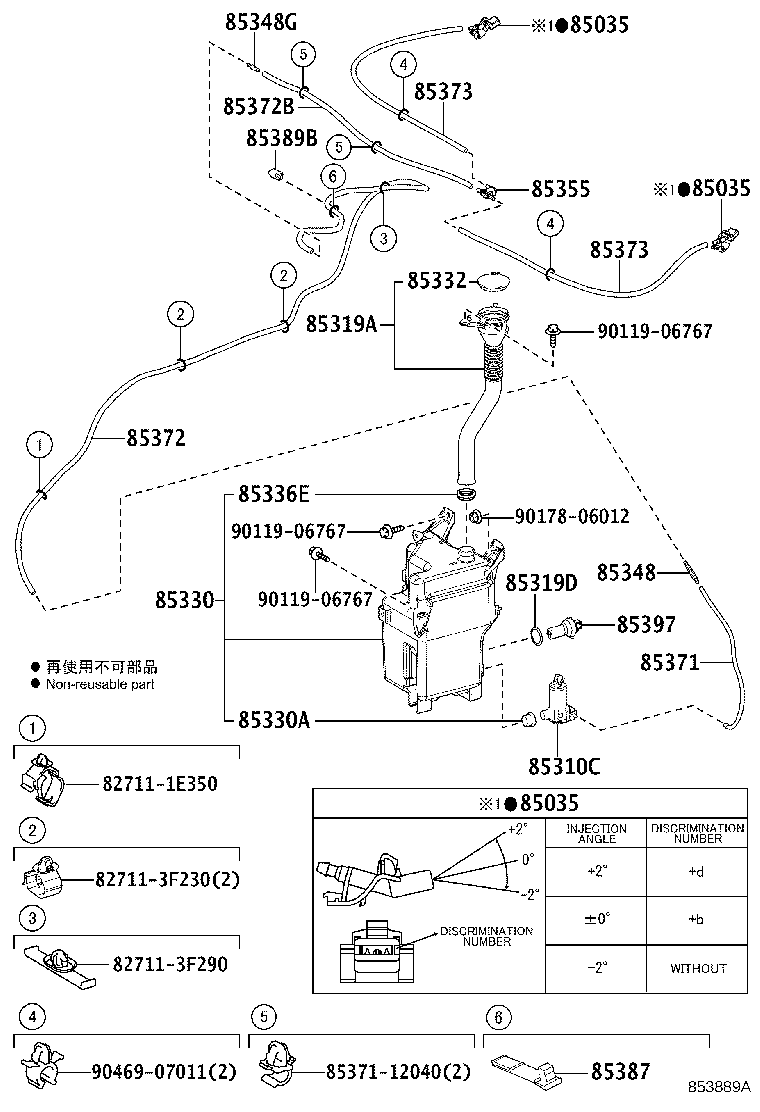

(1712-1908)
W(HEADLAMP CLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30230 |
GGL2#,GYL26 ANGLE -2 |
2 | ||
| 85381-30240 |
GGL2#,GYL26 ANGLE +2 |
2 | ||
| 85381-30220 |
GGL2#,GYL26 ANGLE 0 |
2 | ||
| 85310C - MOTOR & PUMP ASSY, WASHER | ||||
| 85330-47100 |
GGL2#,GYL26 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85316-48270 |
GGL2#,GYL26 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GGL2#,GYL26 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-48070 |
GGL2#,GYL26 COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85355-48070 |
GGL2#,GYL26 HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85355-48070 |
GGL2#,GYL26 COLD AREA SPEC |
1 | ||
| 85315-48280 |
GGL2#,GYL26 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GGL2#,GYL26 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48280 |
GGL2#,GYL26 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-42320 |
GGL2#,GYL26 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85385-48320 |
GGL2#,GYL26 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
GGL2#,GYL26 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GGL2#,GYL26 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,COLD AREA SPEC |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320 |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 90099-33080 |
GGL2#,GYL26 *H,L=320,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB) |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
GGL2#,GYL26 *H,L=1920 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=540 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=330 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GGL2#,GYL26 *H,L=330 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-48470 |
GGL2#,GYL26 |
1 | ||
| 85389B - PROTECTOR, WINDSHIELD WASHER | ||||
| 85389-78020 |
GGL2#,GYL26 |
1 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-52100 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82711-3F290 | ||||
| 85371-12040 | ||||
| 90119-06767 | ||||
| 90178-06012 | ||||
| 90469-07011 | ||||
| Linked diagrams | ||||
| 8505 | ||||
