GGL26L-ARZGBA (2017)
Toyota Lexus Rx450hl/350l
Production
Dec 2017
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(1712- )GGL2#
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48220 |
GGL2# |
1 | ||
| 77114 - PLATE, FUEL TANK SIDE, REAR | ||||
| 77114-48040 |
GGL2# |
1 | ||
| 77142 - BRACKET, FUEL TANK MOUNTING, REAR | ||||
| 77142-48010 |
GGL2# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48020 |
GGL2# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48020 |
GGL2# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48040 |
GGL2# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48170 |
GGL2# |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-48390 |
GGL2# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48080 |
GGL2# |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48080 |
GGL2# |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48080 |
GGL2# |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48140 |
GGL2# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48220 |
GGL2# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
GGL2# |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48030 |
GGL2# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GGL2# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48080 |
GGL2# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53030 |
GGL2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
GGL2#,GYL26 |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-48010 |
GGL2# |
4 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-48010 |
GGL2# |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48190 |
GGL2# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48180 |
GGL2# |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48140 |
GGL2# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
GGL2# NO.1 |
1 | ||
| 77608-48040 |
GGL2# NO.2 |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
GGL2# NO.1 |
1 | ||
| 77608-48040 |
GGL2# NO.2 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
GGL2#,GYL26 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
GGL2#,GYL26 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-48010 |
GGL2# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-48020 |
GGL2# |
1 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-12070 |
GGL2# |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-12070 |
GGL2# |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-48020 |
GGL2# |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
GGL2# |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
GGL2# |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-48020 |
GGL2# |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48020 |
GGL2# |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48020 |
GGL2# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48050 |
GGL2# |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-48050 |
GGL2# |
1 | ||
| Common parts | ||||
| 90119-08C76 | ||||
| 90119-10971 | ||||
| 90179-06168 | ||||
| 90179-08189 | ||||
| 91626-B0614 | ||||
ILLUST NO. 3 OF 4(1712-2101)GGL2#
Click highlighted areas on diagram

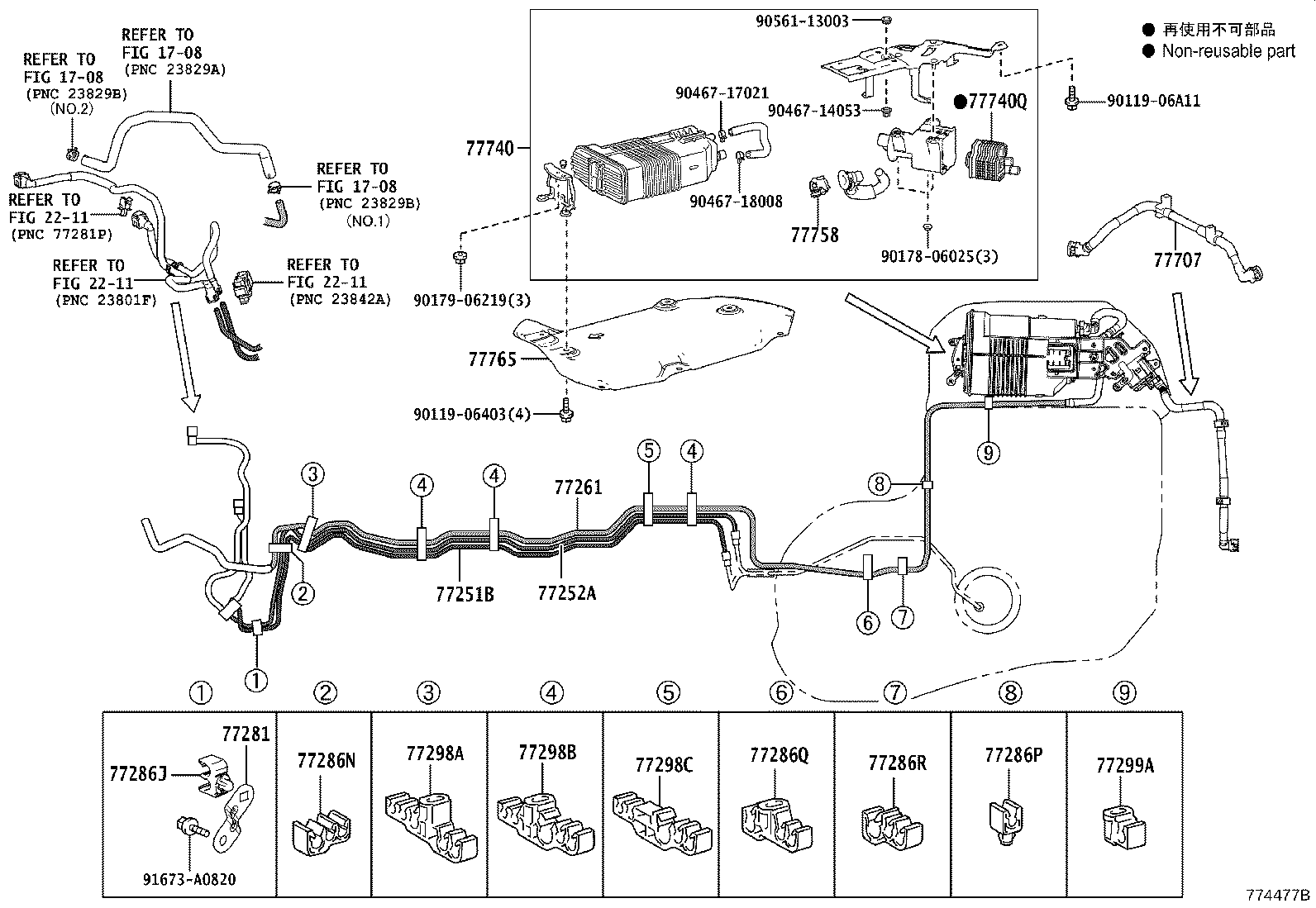

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48300 |
GGL2# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-48060 |
GGL2# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48310 |
GGL2# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48130 |
GGL2# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-33100 |
GGL2#,GYL26 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-48120 |
GGL2# |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77286-48130 |
GGL2# |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77298-48180 |
GGL2# |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77298-48190 |
GGL2# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48150 |
GGL2# |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48160 |
GGL2# |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48170 |
GGL2# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48050 |
GGL2# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-48100 |
GGL2# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48210 |
GGL2# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-14008 |
GGL2# |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-48010 |
GGL2# |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0E030 |
GGL2# |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 90179-06219 | ||||
| 90467-14053 | ||||
| 90467-17021 | ||||
| 90467-18008 | ||||
| 90561-13003 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1712- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48090 |
GGL2# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-48020 |
GGL2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48120 |
GGL2#,GYL26 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
ILLUST NO. 2 OF 4(1712- )GGL2#
Click highlighted areas on diagram
FUEL PUMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
2GR#..GGL2#,GYL26 |
1 | ||
| 23070D - VALVE ASSY, FUEL MAIN, NO.2 | ||||
| 23070-31030 |
2GR#..GGL2#,GYL26 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
2GRFKS..GGL2# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
2GR#..GGL2#,GYL26 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
2GRFKS..GGL2# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GGL2# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GGL2# |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GGL2# |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GGL2# |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GR#..GGL2#,GYL26 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GR#..GGL2#,GYL26 |
2 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-48190 |
GGL2# (J) |
1 | ||
| 77020-0E130 |
GGL2# (L) |
1 | ||
| 77020-48290 |
GGL2# (J) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48110 |
GGL2# |
1 | ||
| 77024-48120 |
GGL2# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-48070 |
GGL2# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48040 |
GGL2# |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GGL2# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-48030 |
GGL2# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48060 |
GGL2# |
1 | ||
| Common parts | ||||
| 90301-08019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
