GGL26L-ARZGBA (2017)
Toyota Lexus Rx450hl/350l
ILLUST NO. 3 OF 3(1712- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
GGL2#,GYL26 GRAY |
1 | ||
| 73219-02010 |
GGL2#,GYL26 BLACK |
1 | ||
| 73219-02030 |
GGL2#,GYL26 BEIGE |
1 | ||
| 73371H - HANGER, REAR NO.2 SEAT SHOULDER BELT | ||||
| 73371-48020E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
2 | ||
| 73371-48020C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
2 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-48130C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73560-48130E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-48150E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73570-48150C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-48050C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73580-48050E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-48060C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73580-48060E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90109-11064 | ||||
| 91553-80612 | ||||

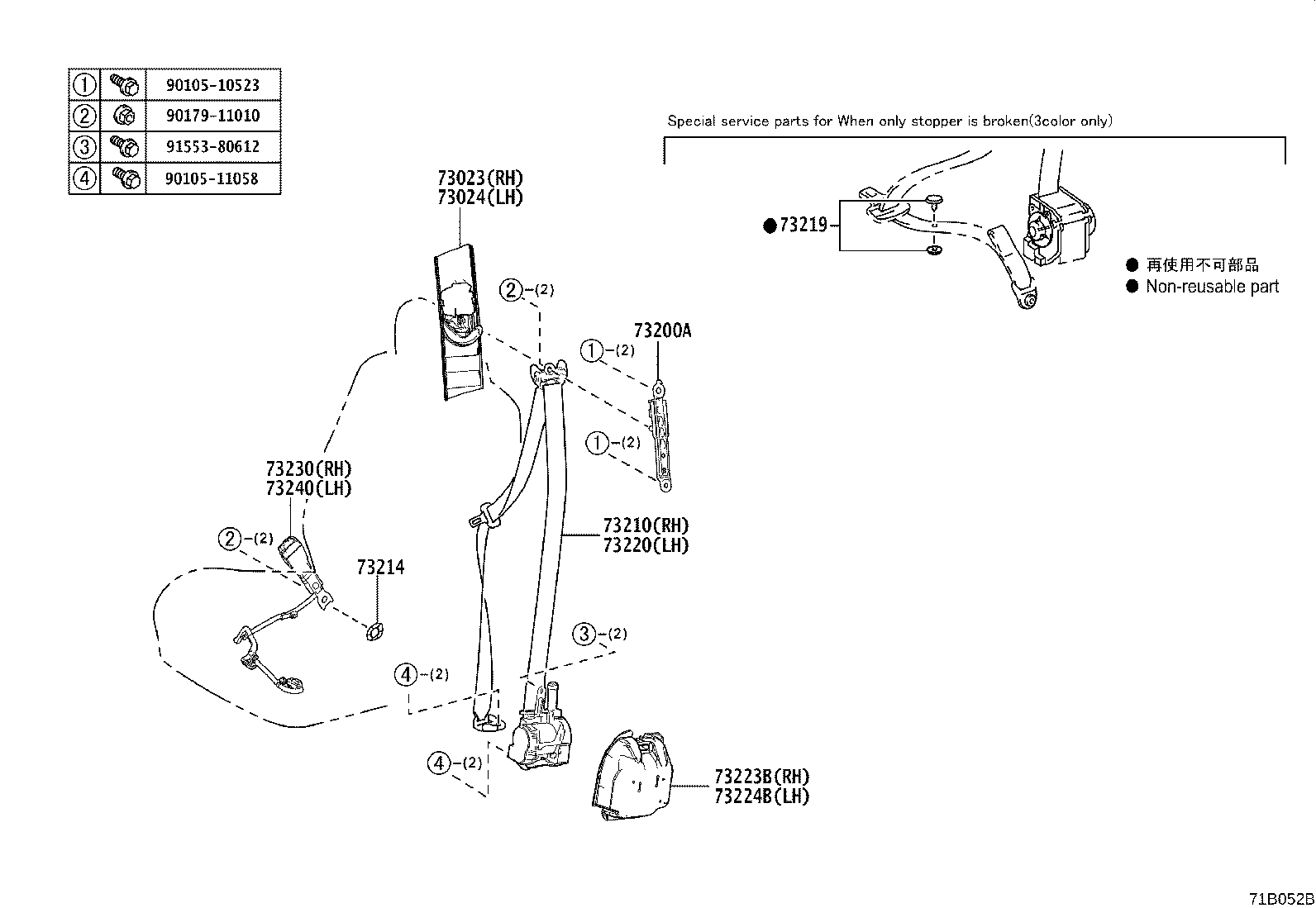

ILLUST NO. 1 OF 3(1712-1908)
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-58010B1 |
GGL2#,GYL26 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 73023-58010A1 |
GGL2#,GYL26 ECRU,TRIM0#,5#,6# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-58010A1 |
GGL2#,GYL26 ECRU,TRIM0#,5#,6# |
1 | ||
| 73024-58010B1 |
GGL2#,GYL26 MOON STONE,TRIM1#,2#,4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
GGL2#,GYL26 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-48590E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73210-48590C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73214 - PLATE, FRONT SEAT BELT ANCHOR | ||||
| 73214-75010 |
GGL2#,GYL26 |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
GGL2#,GYL26 GRAY |
1 | ||
| 73219-02010 |
GGL2#,GYL26 BLACK |
1 | ||
| 73219-02030 |
GGL2#,GYL26 BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-48540E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73220-48540C2 |
GGL2#,GYL26 BLACK/MOON STONE,TRIM1#,2#,4# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-48020 |
GGL2#,GYL26 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73223-48020 |
GGL2#,GYL26 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-48570E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73230-48570C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-48530C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73230-48530E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
ILLUST NO. 2 OF 3(1712- )
REAR NO.1 SEAT-BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-48020 |
GGL2#,GYL26 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-48020 |
GGL2#,GYL26 |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-48010C1 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73178-48010E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
GGL2#,GYL26 GRAY |
1 | ||
| 73219-02010 |
GGL2#,GYL26 BLACK |
1 | ||
| 73219-02030 |
GGL2#,GYL26 BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-48230E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73350-48230C0 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-48270C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73360-48270E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-48270E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73370-48270C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-48020C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371-48020E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-48020C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371-48020E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73373 - COVER, REAR SEAT SHOULDER BELT | ||||
| 73373-48080C1 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73373-48080E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-48250E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73380-48260E0 |
GGL2# REAR NO.1 SEAT-CAPTAIN SEAT,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73380-48250C0 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73380-48260C0 |
GGL2# REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM1#,2#,4# |
1 | ||
| 73460A - BELT ASSY, REAR SEAT CENTER, INNER | ||||
| 73460-48040C0 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73460-48040E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73480A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73480-48120C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73480-48120E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 3(1712- )
REAR NO.1 SEAT-CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-48020 |
GGL2#,GYL26 |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-48020 |
GGL2#,GYL26 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-02020 |
GGL2#,GYL26 GRAY |
1 | ||
| 73219-02010 |
GGL2#,GYL26 BLACK |
1 | ||
| 73219-02030 |
GGL2#,GYL26 BEIGE |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-48270C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73360-48270E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-48270E1 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73370-48270C1 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371 - HANGER, REAR SEAT SHOULDER BELT, RH | ||||
| 73371-48020C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371-48020E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73372 - HANGER, REAR SEAT SHOULDER BELT, LH | ||||
| 73371-48020C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73371-48020E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-48250E0 |
GGL2# NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73380-48260E0 |
GGL2# REAR NO.1 SEAT-CAPTAIN SEAT,NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| 73380-48250C0 |
GGL2# BLACK,TRIM1#,2#,4# |
1 | ||
| 73380-48260C0 |
GGL2# REAR NO.1 SEAT-CAPTAIN SEAT,BLACK,TRIM1#,2#,4# |
1 | ||
| 73480A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73480-48120C0 |
GGL2#,GYL26 BLACK,TRIM1#,2#,4# |
1 | ||
| 73480-48120E0 |
GGL2#,GYL26 NOBLE BROWN,TRIM0#,5#,6# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
