GGL21L-ARZGBA (2019)
Toyota Lexus Rx450hl/350l
Production
Aug 2019
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

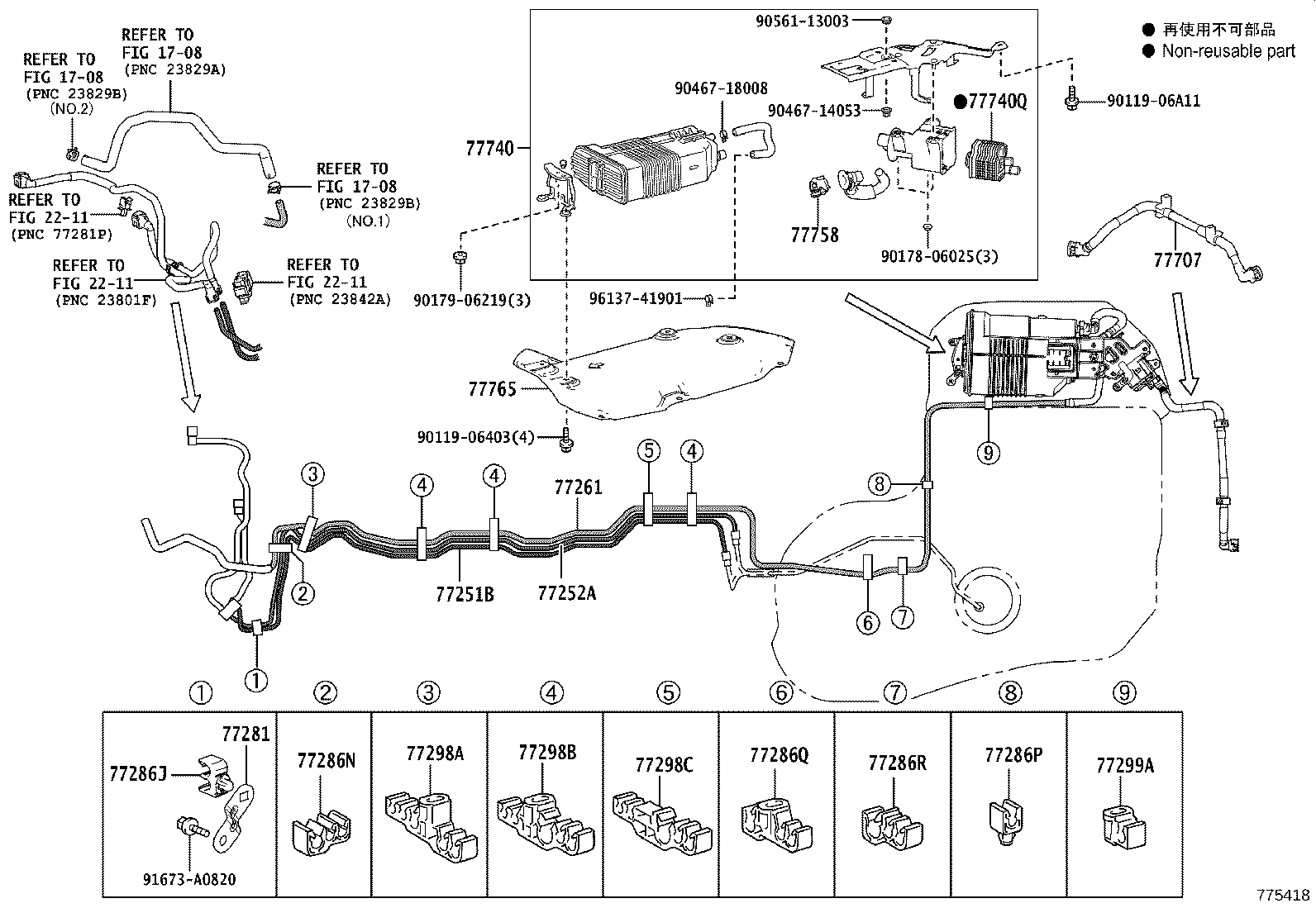

ILLUST NO. 3 OF 4(1712-2101)GGL2#
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48300 |
GGL2# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-48060 |
GGL2# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48310 |
GGL2# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48130 |
GGL2# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-33100 |
GGL2#,GYL26 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-48120 |
GGL2# |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77286-48130 |
GGL2# |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77298-48180 |
GGL2# |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77298-48190 |
GGL2# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48150 |
GGL2# |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48160 |
GGL2# |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48170 |
GGL2# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48050 |
GGL2# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-48100 |
GGL2# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48210 |
GGL2# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-14008 |
GGL2# |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-48010 |
GGL2# |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0E030 |
GGL2# |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 90179-06219 | ||||
| 90467-14053 | ||||
| 90467-17021 | ||||
| 90467-18008 | ||||
| 90561-13003 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 4(2101- )GGL2#
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48300 |
GGL2# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-48060 |
GGL2# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48310 |
GGL2# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-48130 |
GGL2# |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-33100 |
GGL2#,GYL26 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-48120 |
GGL2# |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77286-48130 |
GGL2# |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77298-48180 |
GGL2# |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77298-48190 |
GGL2# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48150 |
GGL2# |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48160 |
GGL2# |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48170 |
GGL2# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48050 |
GGL2# |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-48100 |
GGL2# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48210 |
GGL2# |
1 | ||
| 77740Q - LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER | ||||
| 90910-14008 |
GGL2# |
1 | ||
| 77758 - CAP, CHARCOAL CANISTER | ||||
| 77758-48010 |
GGL2# |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-0E030 |
GGL2# |
1 | ||
| Common parts | ||||
| 90119-06403 | ||||
| 90119-06A11 | ||||
| 90178-06025 | ||||
| 90179-06219 | ||||
| 90467-14053 | ||||
| 90467-18008 | ||||
| 90561-13003 | ||||
| 91673-A0820 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
