GGL21L-ARZGBA (2017)
Toyota Lexus Rx450hl/350l
Production
Dec 2017
-
Aug 2019
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(1712-1908)GGL2#
Click highlighted areas on diagram

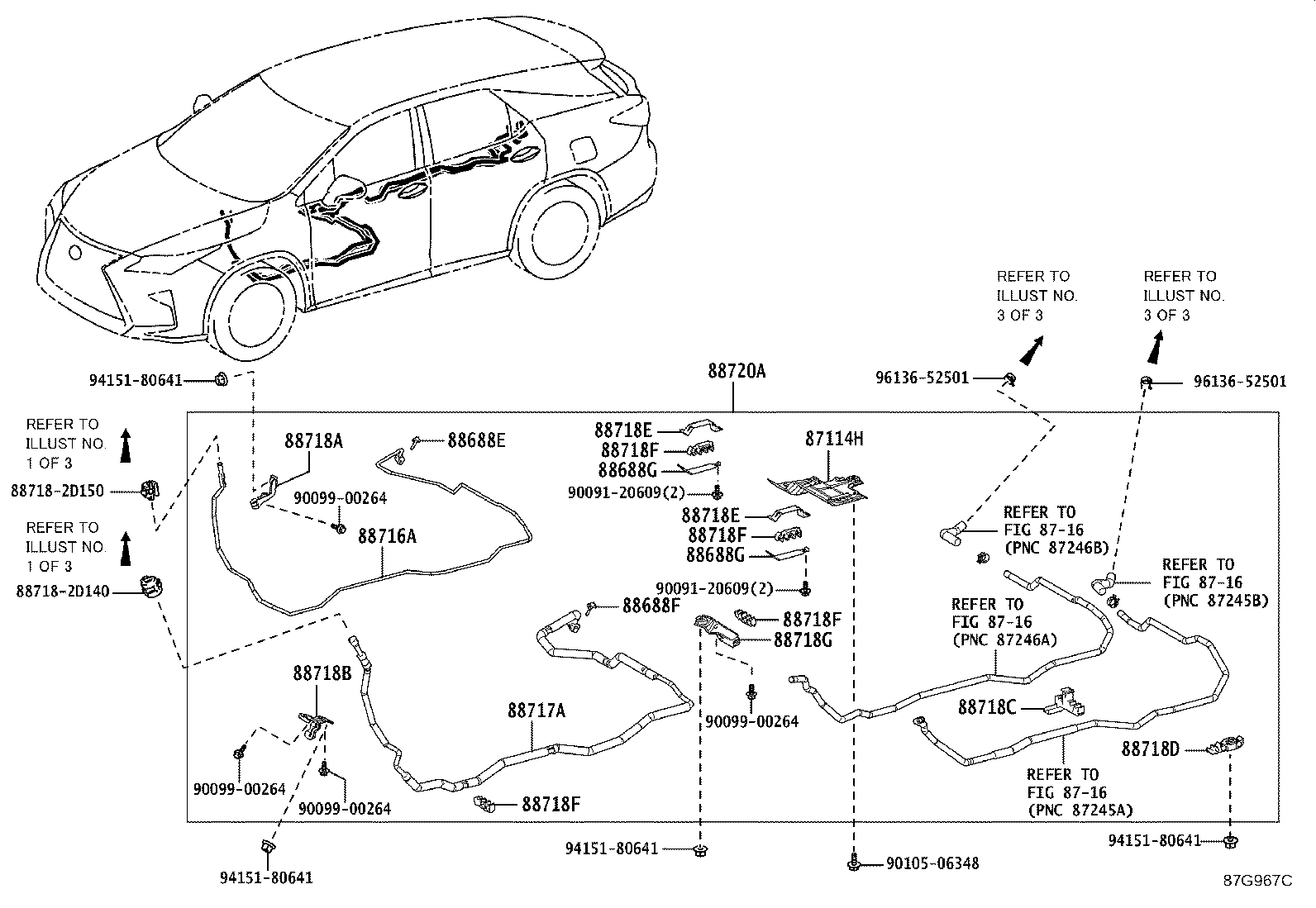

REAR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87114H - COVER, HEATER | ||||
| 87114-48130 |
GGL2# |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-2F600 |
GGL2#,GYL26 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-33240 |
GGL2#,GYL26 |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-48370 |
GGL2# |
2 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-48370 |
GGL2# |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-48650 |
GGL2# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-48290 |
GGL2# |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48730 |
GGL2# |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48640 |
GGL2#,GYL26 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48670 |
GGL2#,GYL26 |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48680 |
GGL2# |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48650 |
GGL2# |
2 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-48650 |
GGL2# |
2 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48660 |
GGL2# |
4 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48660 |
GGL2# |
4 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48660 |
GGL2# |
4 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48660 |
GGL2# |
4 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48720 |
GGL2#,GYL26 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-48040 |
GGL2# |
1 | ||
| Common parts | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90091-20609 | ||||
| 90099-00264 | ||||
| 90105-06348 | ||||
| 94151-80641 | ||||
| 96136-52501 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 1 OF 3(1712-1908)GGL2#
Click highlighted areas on diagram

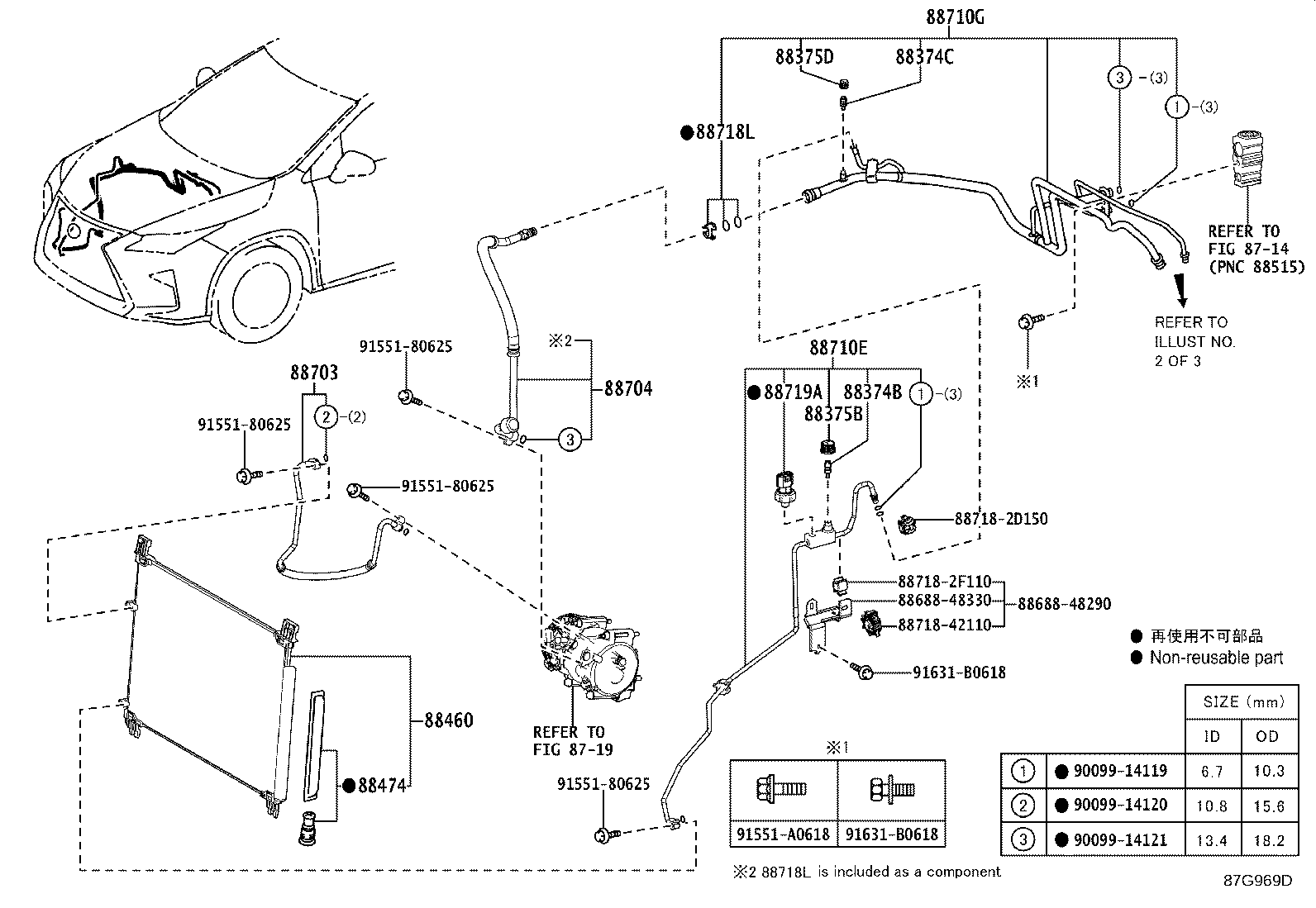

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GGL2#,GYL26 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GGL2#,GYL26 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GGL2#,GYL26 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GGL2#,GYL26 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-48210 |
GGL2# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
GGL2# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-48310 |
GGL2# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-48300 |
GGL2# |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-48580 |
GGL2# |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-48770 |
GGL2# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
GGL2#,GYL26 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 88688-48290 | ||||
| 88688-48330 | ||||
| 88718-2D150 | ||||
| 88718-2F110 | ||||
| 88718-42110 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91631-B0618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 3(1712-1908)GGL2#
Click highlighted areas on diagram

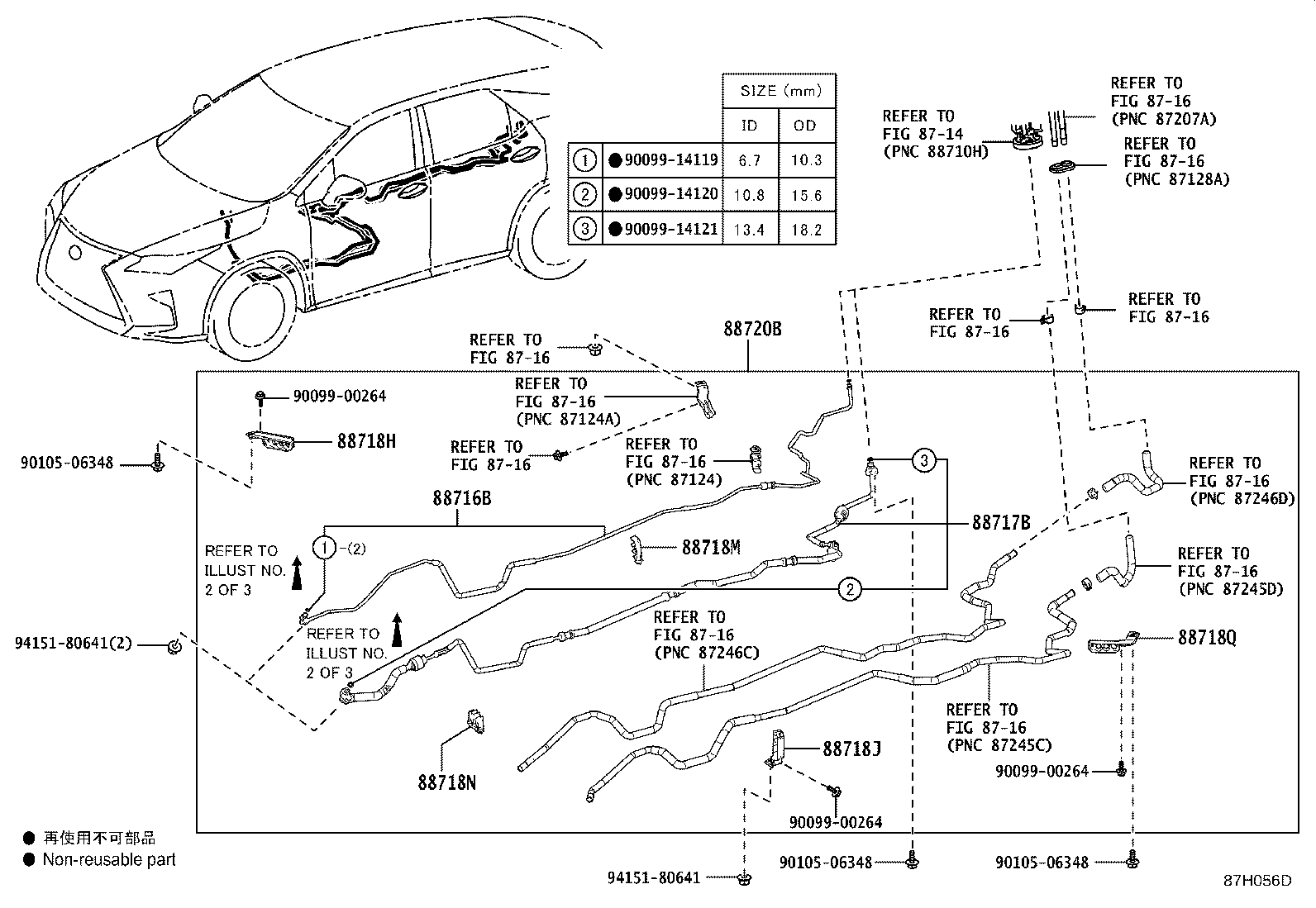

REAR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-48670 |
GGL2#,GYL26 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-48310 |
GGL2#,GYL26 |
1 | ||
| 88718H - CLAMP, NO.3(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48710 |
GGL2#,GYL26 |
1 | ||
| 88718J - CLAMP, NO.4(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-48750 |
GGL2#,GYL26 |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-48660 |
GGL2#,GYL26 |
4 | ||
| 88718N - CLAMP, PIPING | ||||
| 87124-28620 |
GGL2#,GYL26 |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-48700 |
GGL2#,GYL26 |
1 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-48060 |
GGL2#,GYL26 |
1 | ||
| Common parts | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06348 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8716 | ||||
