GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510-1909)GYL2#

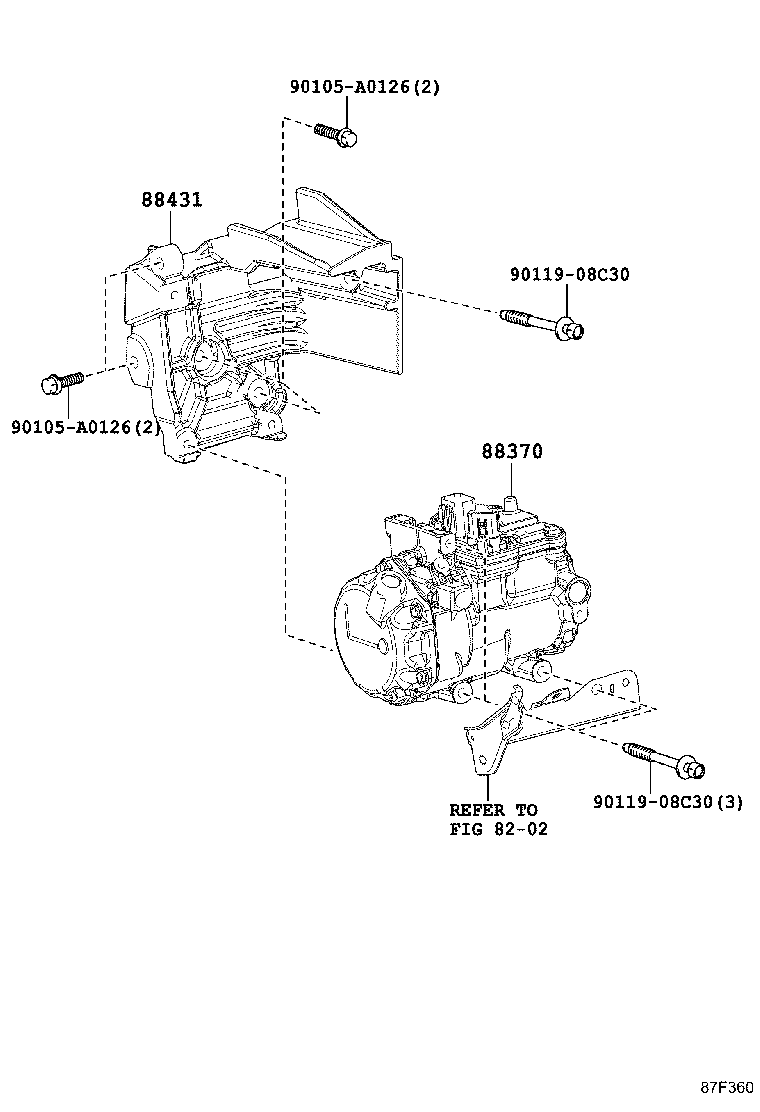

Click highlighted areas on diagram

diagram 8202 88370 88431 90105A0126 90105A0126 9011908C30 9011908C30
Part # Description Qty Price
88370 - COMPRESSOR ASSY, W/MOTOR
88370-48110

GYL25

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-48070

GYL2#

 1
Common parts
90105-A0126
90119-08C30
Linked diagrams
8202
