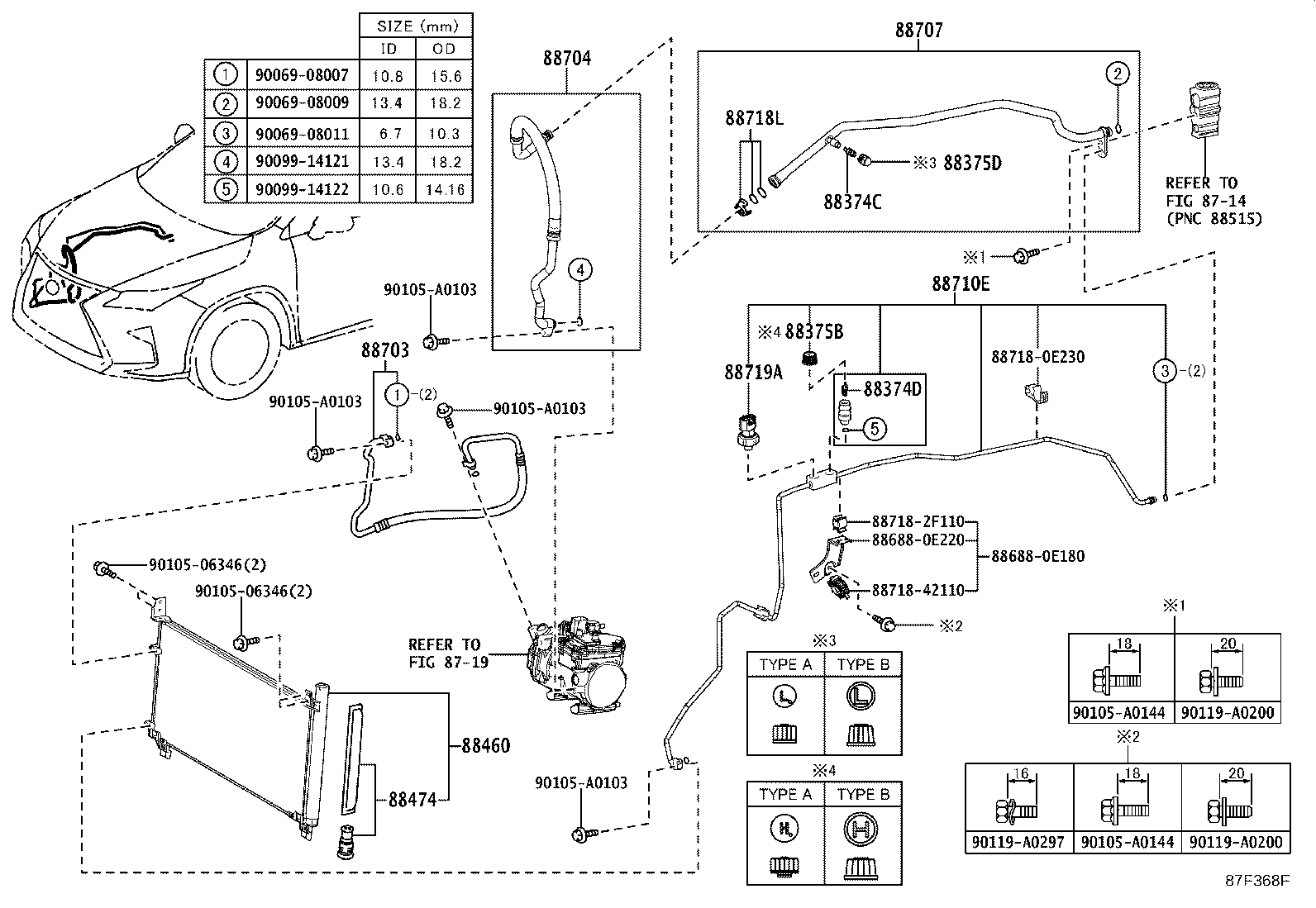

Toyota Lexus rx450h/350(nap GYL25 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374C - VALVE, SERVICE, NO.2
88374-30010	GGL2#,GYL25	10/2015 - 09/2019	1
88374D - VALVE, SERVICE NO.3
88374-30010	GYL25	10/2015 - 09/2019	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	GGL2#,GYL25 TYPE B:REFER ILLUST.	02/2016 - 09/2019	1
88375-02060	GGL2#,GYL2#	10/2015 - 02/2016	1
88375-0E020	GGL2#,GYL25 TYPE A:REFER ILLUST.	02/2016 - 09/2019	1
88375D - CAP, SERVICE VALVE, NO.2
88375-0E030	GYL25 TYPE A:REFER ILLUST.	10/2015 - 09/2019	1
88375-30290	GYL25 TYPE B:REFER ILLUST.	10/2015 - 09/2019	1
88460 - CONDENSER ASSY, COOLER
88460-48220	GYL25	10/2015 - 09/2019	1
88474 - DRYER, COOLER
88474-47020	GYL25	10/2015 - 09/2019	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-0E160	GYL25	10/2015 - 09/2019	1
88704 - HOSE SUB-ASSY, SUCTION
88704-0E270	GYL25	10/2015 - 09/2019	1
88707 - PIPE SUB-ASSY, SUCTION
88707-0E041	GYL25	10/2015 - 09/2019	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0E290	GYL25	10/2015 - 09/2019	1
88718L - CLAMP, PIPING
88718-52280	GYL25	10/2015 - 09/2019	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	GGL2#,GYL25	10/2015 - 09/2019	1
Common parts
88688-0E180
88688-0E220
88718-0E230
88718-2F110
88718-42110
90069-08007
90069-08009
90069-08011
90099-14121
90099-14122
90105-06346
90105-A0103
90105-A0144
90119-A0200
90119-A0297
Linked diagrams
8714
8719

GYL25L-CWXGBA (2015)
