GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )GYL2#

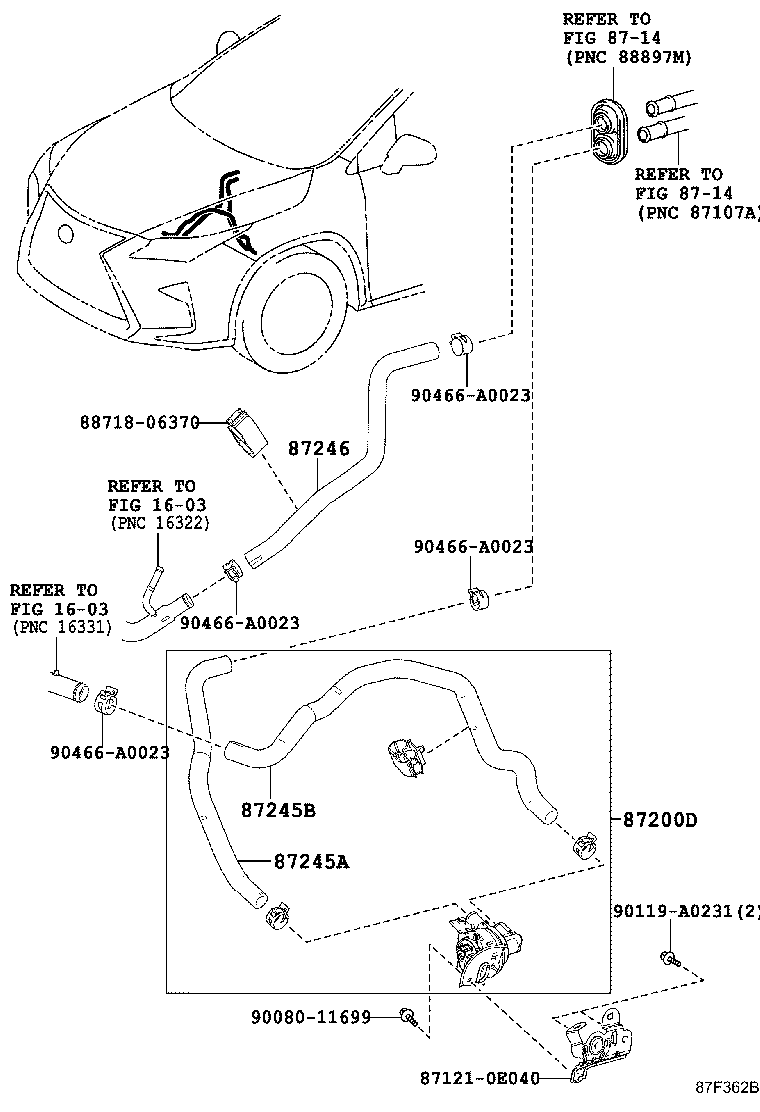

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87200D - ACCESSORY ASSY, HEATER | ||||
| 87200-0E020 |
GYL25 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-0E430 |
GYL25 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-0E420 |
GYL25 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-0E360 |
GYL25 |
1 | ||
| Common parts | ||||
| 87121-0E040 | ||||
| 88718-06370 | ||||
| 90080-11699 | ||||
| 90119-A0231 | ||||
| 90466-A0023 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
