GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510- )
Click highlighted areas on diagram

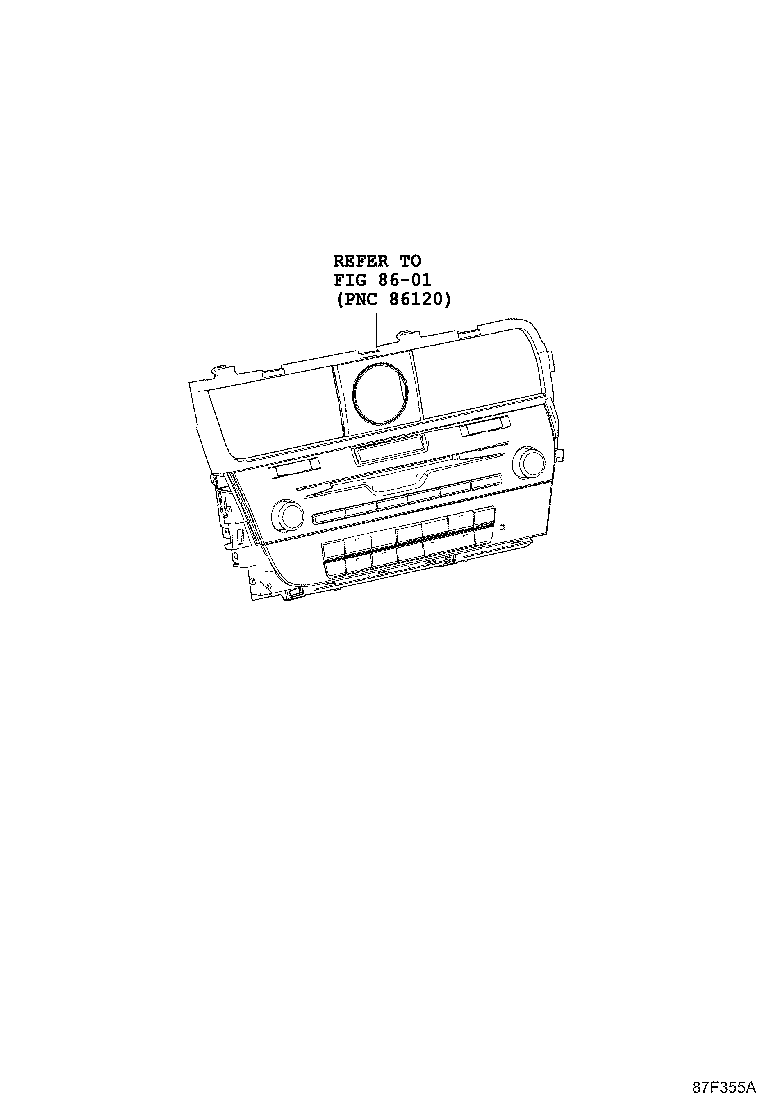

CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8601 | ||||
(1510-1909)
Click highlighted areas on diagram

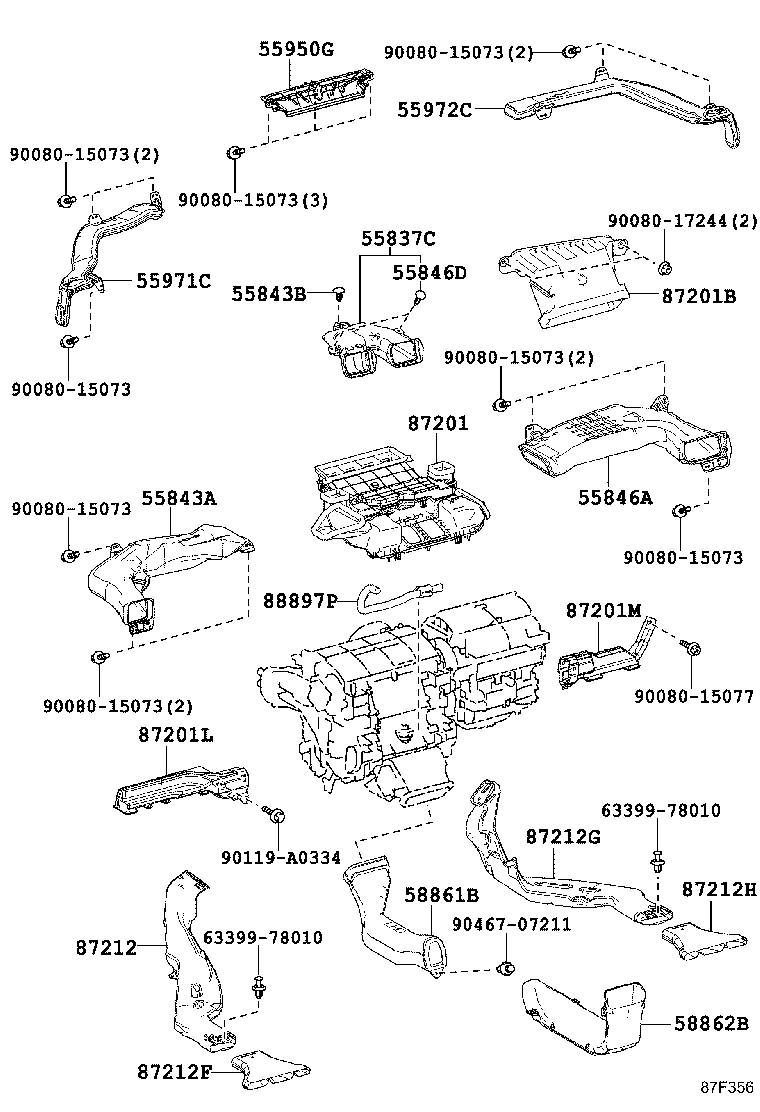

AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-0E080 |
GGL2#,GYL25 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-0E090 |
GGL2#,GYL25 |
1 | ||
| 55843B - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-A0001C1 |
GGL2#,GYL25 BLACK |
1 | ||
| 90467-A0001C0 |
GGL2#,GYL25 BLACK |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-0E080 |
GGL2#,GYL25 |
1 | ||
| 55846D - CLIP, HEATER TO REGISTER DUCT | ||||
| 90467-0504522 |
GGL2#,GYL25 BLACK |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0E070 |
GGL2#,GYL25 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-0E080 |
GGL2#,GYL25 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-0E080 |
GGL2#,GYL25 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-0E050 |
GGL2#,GYL25 |
1 | ||
| 58862B - DUCT, CONSOLE BOX, NO.2 | ||||
| 58862-0E060 |
GGL2#,GYL25 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-0E260 |
GGL2#,GYL25 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-0E270 |
GGL2#,GYL25 |
1 | ||
| 87201L - DUCT SUB-ASSY, AIR, NO.4 | ||||
| 87211-0E100 |
GGL2#,GYL25 |
1 | ||
| 87201M - DUCT SUB-ASSY, AIR, NO.5 | ||||
| 87211-0E110 |
GGL2#,GYL25 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87213-0E080 |
GGL2#,GYL25 |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87218-0E010 |
GGL2#,GYL25 |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-0E080 |
GGL2#,GYL25 |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87217-0E010 |
GGL2#,GYL25 |
1 | ||
| 88897P - ASPIRATOR | ||||
| 87201-0E280 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 63399-78010 | ||||
| 90080-15073 | ||||
| 90080-15077 | ||||
| 90080-17244 | ||||
| 90119-A0334 | ||||
| 90467-07211 | ||||
(1510-1909)
Click highlighted areas on diagram

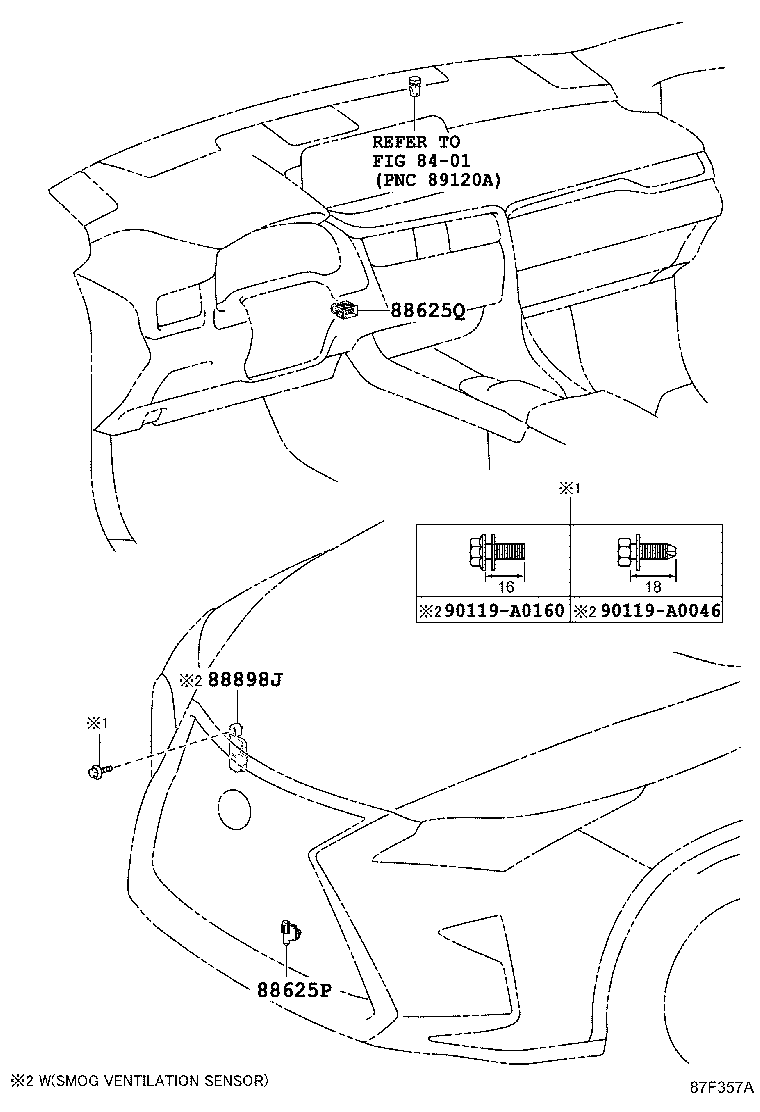

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-06020 |
GGL2#,GYL25 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-06040 |
GGL2#,GYL25 |
1 | ||
| 88898J - SENSOR, SMOG VENTILATION | ||||
| 88898-50031 |
GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM |
1 | ||
| 88898-50031 |
GYL25 |
1 | ||
| Common parts | ||||
| 90119-A0046 | ||||
| 90119-A0160 | ||||
| Linked diagrams | ||||
| 8401 | ||||
