GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap
Production
Oct 2015
-
Sep 2019
Engine
2GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1510-1909)GYL2#

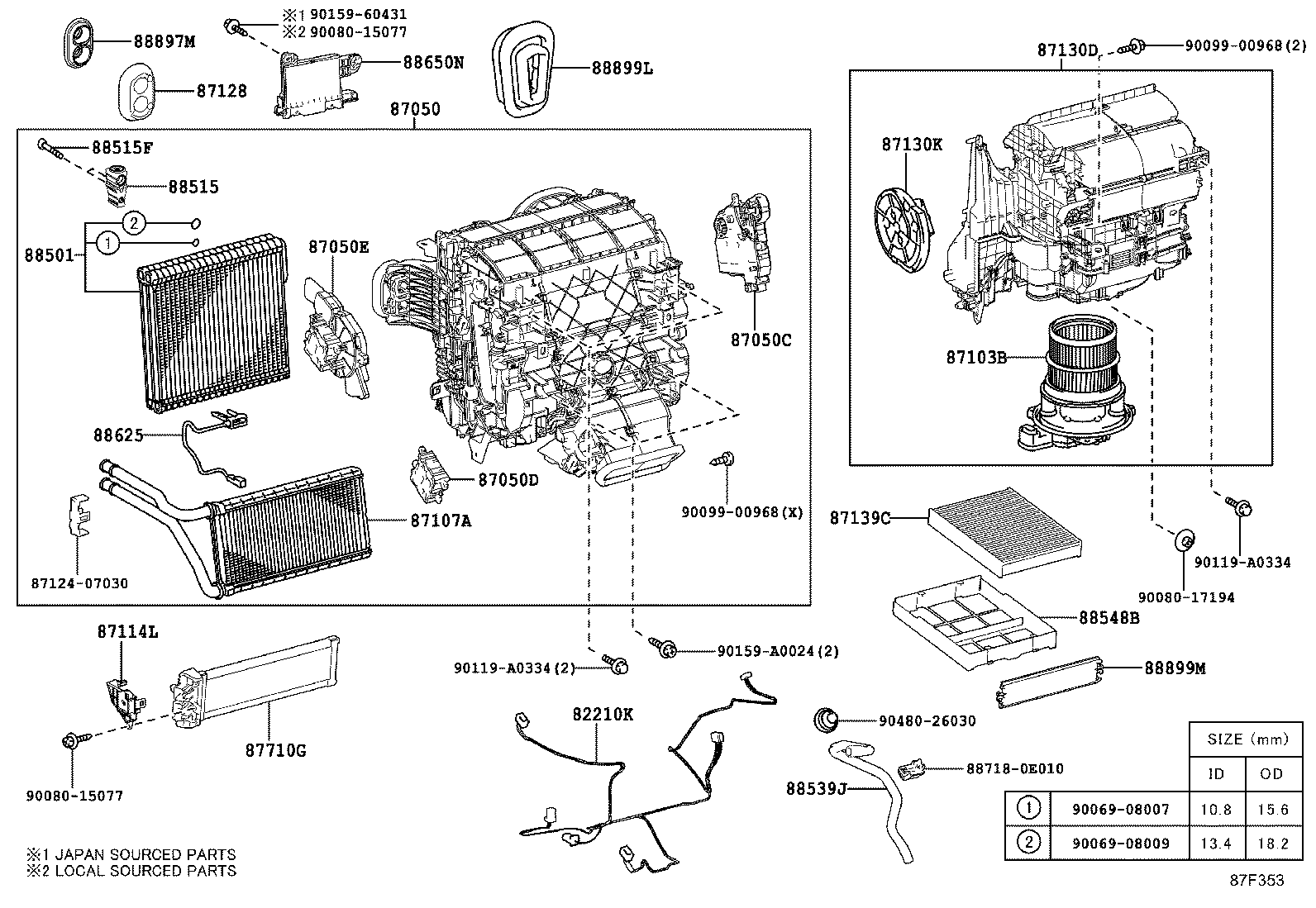

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-0E050 |
GGL2#,GYL25 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0E180 |
GYL25 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-0E100 |
GGL2#,GYL25 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-0E120 |
GGL2#,GYL25 |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-0E110 |
GGL2#,GYL25 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0E090 |
GGL2#,GYL25 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0E040 |
GGL2#,GYL25 |
1 | ||
| 87114L - COVER, HEATER, NO.2 | ||||
| 87114-0E070 |
GGL2#,GYL25 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0E080 |
GGL2#,GYL25 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0E130 |
GGL2#,GYL25 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0E130 |
GGL2#,GYL25 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0E040 |
GGL2#,GYL25 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-58010 |
GYL25 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0E130 |
GYL25 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0E130 |
GYL25 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GGL2#,GYL25 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0E080 |
GGL2#,GYL25 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-0E030 |
GGL2#,GYL25 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0E050 |
GGL2#,GYL25 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0E460 |
GYL25 |
1 | ||
| 88650-0E450 |
GYL25 COLD AREA SPEC |
1 | ||
| 88650-0E451 |
GYL25 COLD AREA SPEC |
1 | ||
| 88650-0E461 |
GYL25 |
1 | ||
| 88650-0E540 |
GYL25 COLD AREA SPEC |
1 | ||
| 88650-0E550 |
GYL25 |
1 | ||
| 88650-0E551 |
GYL25 |
1 | ||
| 88650-0E541 |
GYL25 COLD AREA SPEC |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 90480-A0004 |
GGL2#,GYL25 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-0E040 |
GGL2#,GYL25 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-0E010 |
GGL2#,GYL25 |
1 | ||
| 88899-06310 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 87124-07030 | ||||
| 88718-0E010 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90080-15077 | ||||
| 90080-17194 | ||||
| 90099-00968 | ||||
| 90119-A0334 | ||||
| 90159-60431 | ||||
| 90159-A0024 | ||||
| 90480-26030 | ||||
