GYL25L-CWXGBA (2015)

Toyota Lexus Rx450h/350(Nap

Production Oct 2015 - Sep 2019
Engine 2GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )

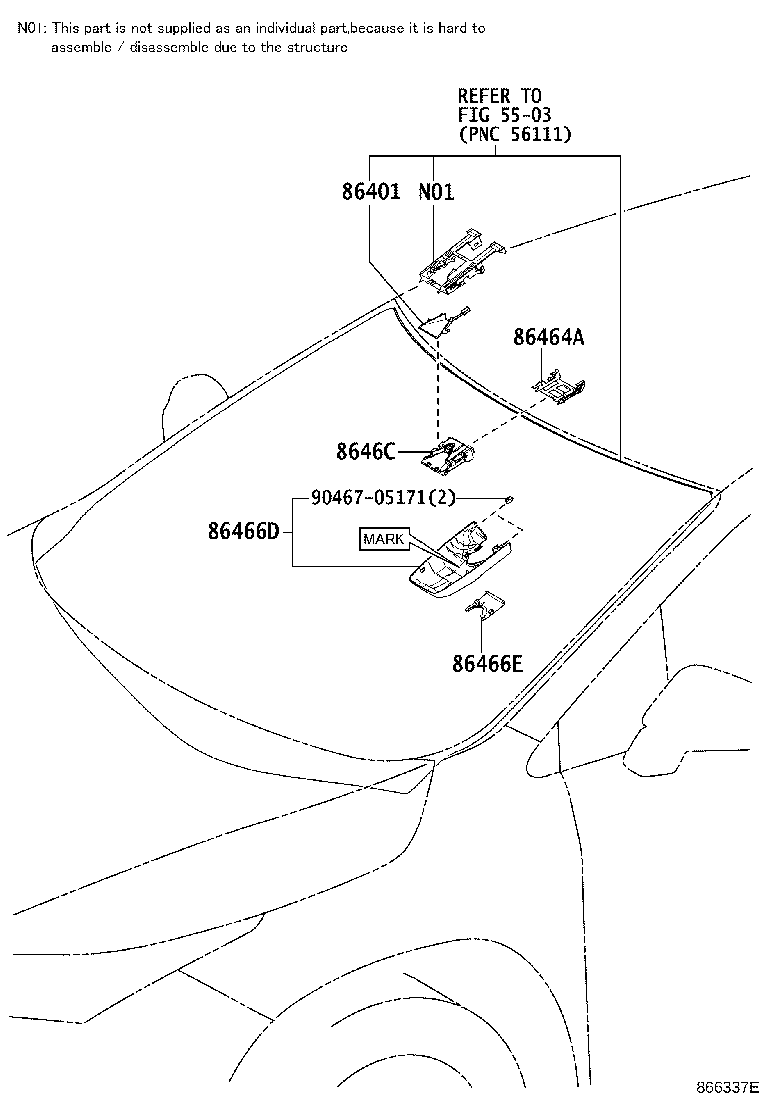

Click highlighted areas on diagram

diagram 5503 86401 86464A 86466D 86466E 8646C 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-48011

GGL2#,GYL25

 1
86401-48010

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
86464A - LATCH, FORWARD RECOGNITION
86464-48011

GGL2#,GYL25

 1
86464-48011

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-48041

GGL2#,GYL2#

PRE-COLLISION SYSTEM-WITH(*PBA & *PB),MARK C

 1
86466-48042

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB),MARK C2

 1
86466-48042

GGL2#,GYL25

MARK C2

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-48050

GGL2#,GYL25

 1
86466-48050

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-0E030

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
8646C-0E010

GGL2#,GYL2#

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
8646C-0E031

GGL2#,GYL25

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

 1
8646C-0E032

GGL2#,GYL25

 1
Common parts
90467-05171
Linked diagrams
5503
