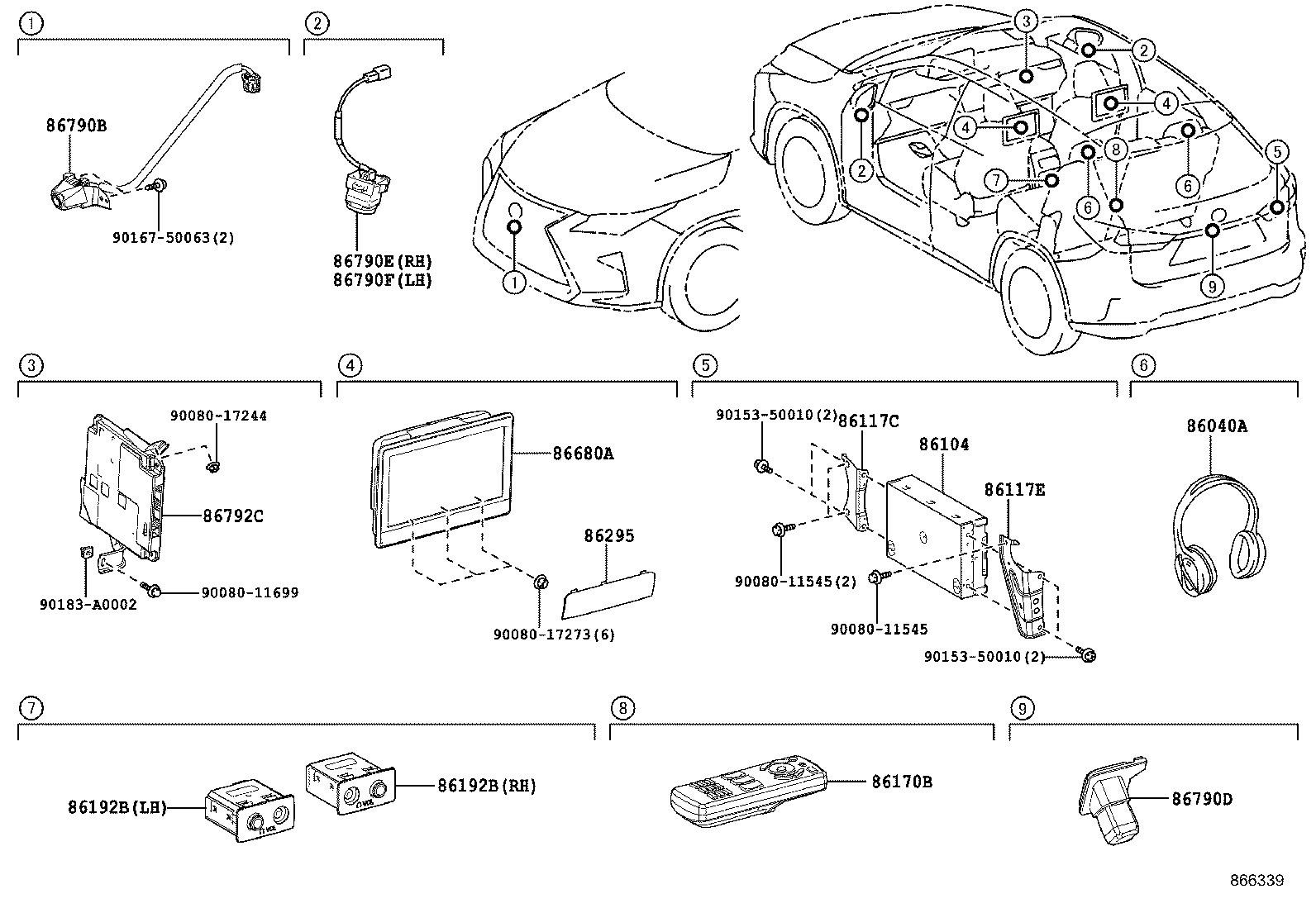

Toyota Lexus rx450h/350(nap GYL25 CAMERA & REAR MONITOR DISPLAY

Part #	Description	Period	Qty
86040A - HEADPHONE ASSY, STEREO
86040-YY010	GGL2#,GYL2# HEADPHONE-WITH(WIRELESS HEADPHONE)	10/2015 - 08/2016	2
86040-YY040	GGL2#,GYL25 HEADPHONE-WITH(WIRELESS HEADPHONE)	08/2016 - 09/2019	2
86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY
862B1-48010	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86117-48160	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3
86118-48130	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-60090	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE)	10/2015 - 12/2017	1
86192B - TERMINAL, HEADPHONE
86192-50030	GYL25 TELEVISION & DVD PLAYER-WITH(*RSE),RH	10/2015 - 12/2017	1
86192-50040	GYL25 TELEVISION & DVD PLAYER-WITH(*RSE),LH	10/2015 - 12/2017	1
86192B - TERMINAL, HEADPHONE
86192-50030	GYL25 TELEVISION & DVD PLAYER-WITH(*RSE),RH	10/2015 - 12/2017	1
86192-50040	GYL25 TELEVISION & DVD PLAYER-WITH(*RSE),LH	10/2015 - 12/2017	1
86295 - BASE, TELEVISION
86295-48110C0	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE),BLACK,TRIM1#,2#,4#	10/2015 - 12/2017	2
86295-48110E1	GYL25 "VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE),NOBLE BROWN,TRIM0#,5#	10/2015 - 12/2017	2
86680A - DISPLAY ASSY, TELEVISION
86680-48190C0	GYL25 PANASONIC,"VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE),BLACK,TRIM1#,2#,4#	10/2015 - 06/2017	2
86680-48191	GYL25 PANASONIC,"VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE)	06/2017 - 12/2017	2
86680-48190E1	GYL25 PANASONIC,"VERSION L"(L)&TELEVISION & DVD PLAYER-WITH(RSE),NOBLE BROWN,TRIM0#,5#	10/2015 - 06/2017	2
86790B - CAMERA ASSY, TELEVISION, FR
867B0-0E030	GGL20,GYL2# BACK MONITOR-WITH(*PVM)	10/2015 - 04/2016	1
867B0-0E080	GGL25,GYL25 "F SPORT"(F)&BACK MONITOR-WITH(PVM)	10/2015 - 04/2016	1
867B0-0E031	GYL25 BACK MONITOR-WITH(*PVM)	04/2016 - 12/2017	1
867B0-0E081	GGL25,GYL25 "F SPORT"(F)&BACK MONITOR-WITH(PVM)	04/2016 - 12/2017	1
867B0-0E032	GGL2#,GYL25 "VERSION L"(L)&BACK MONITOR-WITH(PVM)	12/2017 - 09/2019	1
867B0-0E082	GGL2#,GYL25 "F SPORT"(F)&BACK MONITOR-WITH(PVM)	12/2017 - 09/2019	1
867B0-0E032	GGL2#,GYL25 PREMIUM PACKAGE&BACK MONITOR-WITH(*PVM)	12/2017 - 09/2019	1
86790D - CAMERA ASSY, TELEVISION, RR
867B0-0E071	GGL2#,GYL2# BACK MONITOR-WITH(*PVM)	10/2015 - 04/2016	1
867B0-0E072	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	04/2016 - 12/2017	1
867B0-0E073	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	12/2017 - 09/2019	1
867B0-0E061	GGL2#,GYL25	10/2015 - 09/2019	1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
867B0-0E050	GGL2#,GYL2# BACK MONITOR-WITH(*PVM)	10/2015 - 05/2016	1
867B0-0E051	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	05/2016 - 12/2017	1
867B0-0E052	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	12/2017 - 09/2019	1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
867B0-0E040	GGL2#,GYL2# BACK MONITOR-WITH(*PVM)	10/2015 - 05/2016	1
867B0-0E041	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	05/2016 - 12/2017	1
867B0-0E042	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	12/2017 - 09/2019	1
86792C - COMPUTER, PARKING ASSIST
86792-48401	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	12/2017 - 09/2019	1
86792-48400	GGL2#,GYL25 BACK MONITOR-WITH(*PVM)	10/2015 - 12/2017	1
Common parts
90080-11545
90080-11699
90080-17244
90080-17273
90153-50010
90167-50063
90183-A0002

GYL25L-CWXGBA (2015)

(1510-1909)
