GYL25L-CWXGBA (2015)
Toyota Lexus Rx450h/350(Nap

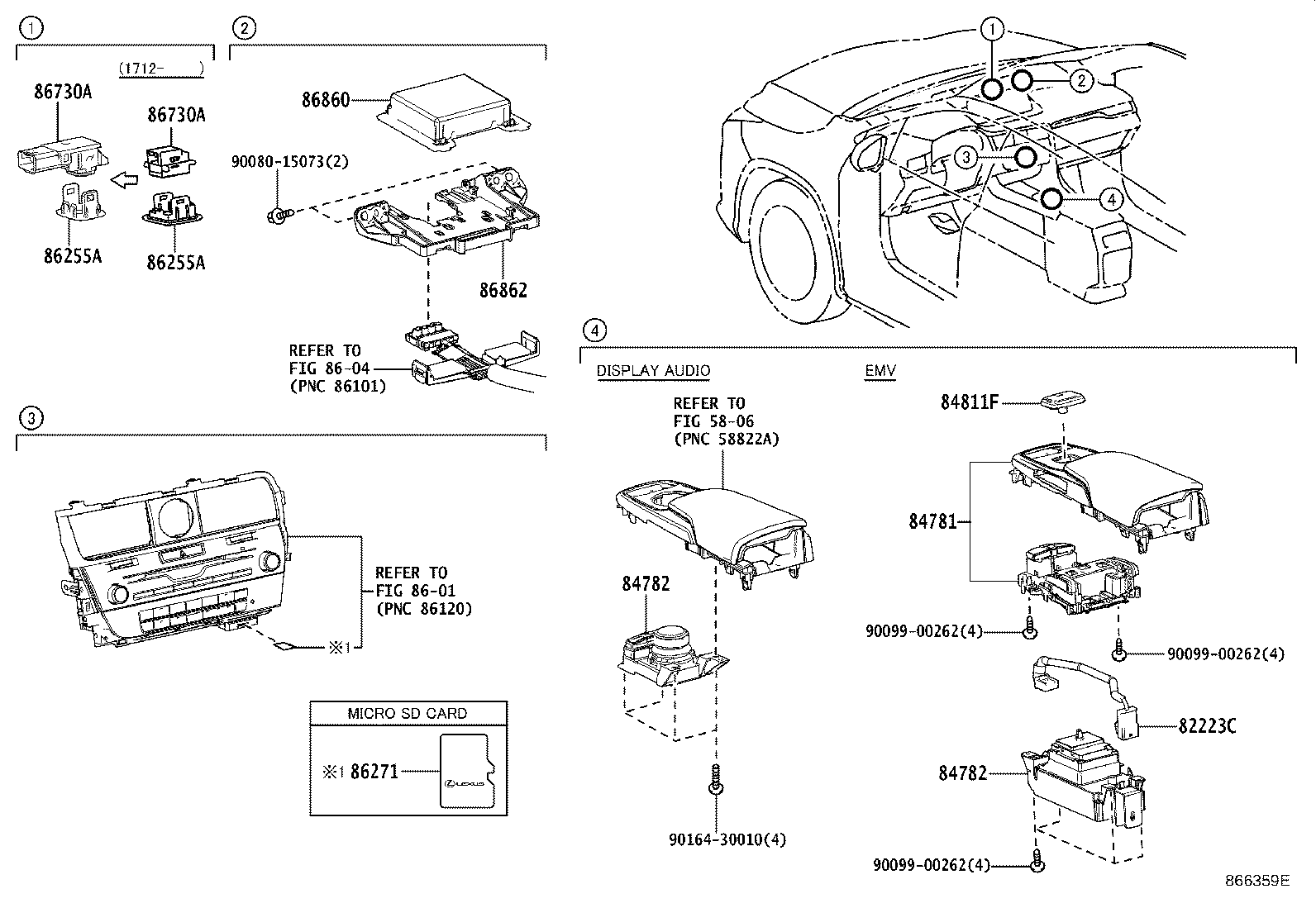

ILLUST NO. 1 OF 2(1510-1909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223C - WIRE, SWITCH | ||||
| 82223-48040 |
GYL25 |
1 | ||
| 82223-48040 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 82223-48040 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 84781 - SWITCH, REMOTE OPERATION | ||||
| 84781-48050B0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM10,12,14 |
1 | ||
| 84781-48040C2 |
GYL25 BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48040B0 |
GYL25 MOON STONE,TRIM10,12,14 |
1 | ||
| 84781-48050F0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48040D0 |
GYL25 DK.ROSE,TRIM3# |
1 | ||
| 84781-48040C0 |
GYL25 BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48040F0 |
GYL25 TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48050A2 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0# |
1 | ||
| 84781-48040A2 |
GYL25 IVORY,TRIM0# |
1 | ||
| 84781-48040E0 |
GYL25 NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48050D0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),DK.ROSE,TRIM3# |
1 | ||
| 84781-48050E0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48050B0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48050C0 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48050C2 |
GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48040B0 |
GYL25 MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48040B0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48040C0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48040F0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48040A2 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),IVORY,TRIM0# |
1 | ||
| 84781-48040C2 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48050B0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48040E0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48040D0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),DK.ROSE,TRIM3# |
1 | ||
| 84781-48050F0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48041D0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),DK.ROSE,TRIM3# |
1 | ||
| 84781-48050C0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48041E0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48041F0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),TOPAZ BROWN,TRIM5# |
1 | ||
| 84781-48041C0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48050C2 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48050D0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),DK.ROSE,TRIM3# |
1 | ||
| 84781-48041C2 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48041A2 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),IVORY,TRIM0# |
1 | ||
| 84781-48051B0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48050A2 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0# |
1 | ||
| 84781-48051C0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2# |
1 | ||
| 84781-48050E0 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48041B0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MOON STONE,TRIM10,12,13,14 |
1 | ||
| 84781-48051C2 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/MD.GRAY,TRIM15 |
1 | ||
| 84781-48051D0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),DK.ROSE,TRIM3# |
1 | ||
| 84781-48051A2 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0# |
1 | ||
| 84781-48051E0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4# |
1 | ||
| 84781-48051F0 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5# |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48061 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 84782-48061 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 84782-48040 |
GYL25 |
1 | ||
| 84782-48061 |
GYL2# |
1 | ||
| 84782-48060 |
GYL2# |
1 | ||
| 84782-48040 |
GYL25 AUDIO-*EMV & DVD |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48061 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 84782-48061 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 84782-48040 |
GYL25 |
1 | ||
| 84782-48061 |
GYL2# |
1 | ||
| 84782-48060 |
GYL2# |
1 | ||
| 84782-48040 |
GYL25 AUDIO-*EMV & DVD |
1 | ||
| 84811F - KNOB, SWITCH | ||||
| 84811-48040 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 84811-48040 |
GYL25 |
1 | ||
| 84811-48040 |
GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY) |
1 | ||
| 86255A - CASE, MICROPHONE, NO.1 | ||||
| 86255-48010A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 86255-78010C1 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 86255-48010B0 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 86255-78010B0 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 86255-48010C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 86255-78010A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 86255A - CASE, MICROPHONE, NO.1 | ||||
| 86255-48010A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 86255-78010C1 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 86255-48010B0 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 86255-78010B0 |
GGL2#,GYL25 MOON STONE,TRIM10,12,13,20,23,24,4# |
1 | ||
| 86255-48010C0 |
GGL2#,GYL25 BLACK,TRIM14,15,25,26,3# |
1 | ||
| 86255-78010A0 |
GGL2#,GYL25 ECRU,TRIM0#,5# |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-0E030 |
GYL2# MICRO SD CARD |
1 | ||
| 86271-0E050 |
GYL25 MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E051 |
GYL25 MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICROSD CARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SDCARD |
1 | ||
| 86271-0E060 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICROSD CARD |
1 | ||
| 86271-0E060 |
GGL25,GYL25 CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SDCARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL25,GYL25 CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-15SPEAKER & *MAR&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86271-0E061 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MICRO SD CARD |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-0E040 |
GGL2#,GYL25 |
1 | ||
| 86730-48100 |
GGL2#,GYL25 |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-0E040 |
GGL2#,GYL25 |
1 | ||
| 86730-48100 |
GGL2#,GYL25 |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-0E070 |
GGL2#,GYL25 USA DEPENDANCY SPEC |
1 | ||
| 86880-06010 |
GGL2#,GYL25 |
1 | ||
| 86860-0E070 |
GGL2#,GYL25 |
1 | ||
| 86860-0E070 |
GGL25,GYL25 CANADA SPEC |
1 | ||
| 86860-0E070 |
GGL2#,GYL25 HAWAII SPEC |
1 | ||
| 86862 - BRACKET, NAVIGATION ANTENNA | ||||
| 86862-58020 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90099-00262 | ||||
| 90164-30010 | ||||
| Linked diagrams | ||||
| 5806 | ||||
| 8601 | ||||
| 8604 | ||||

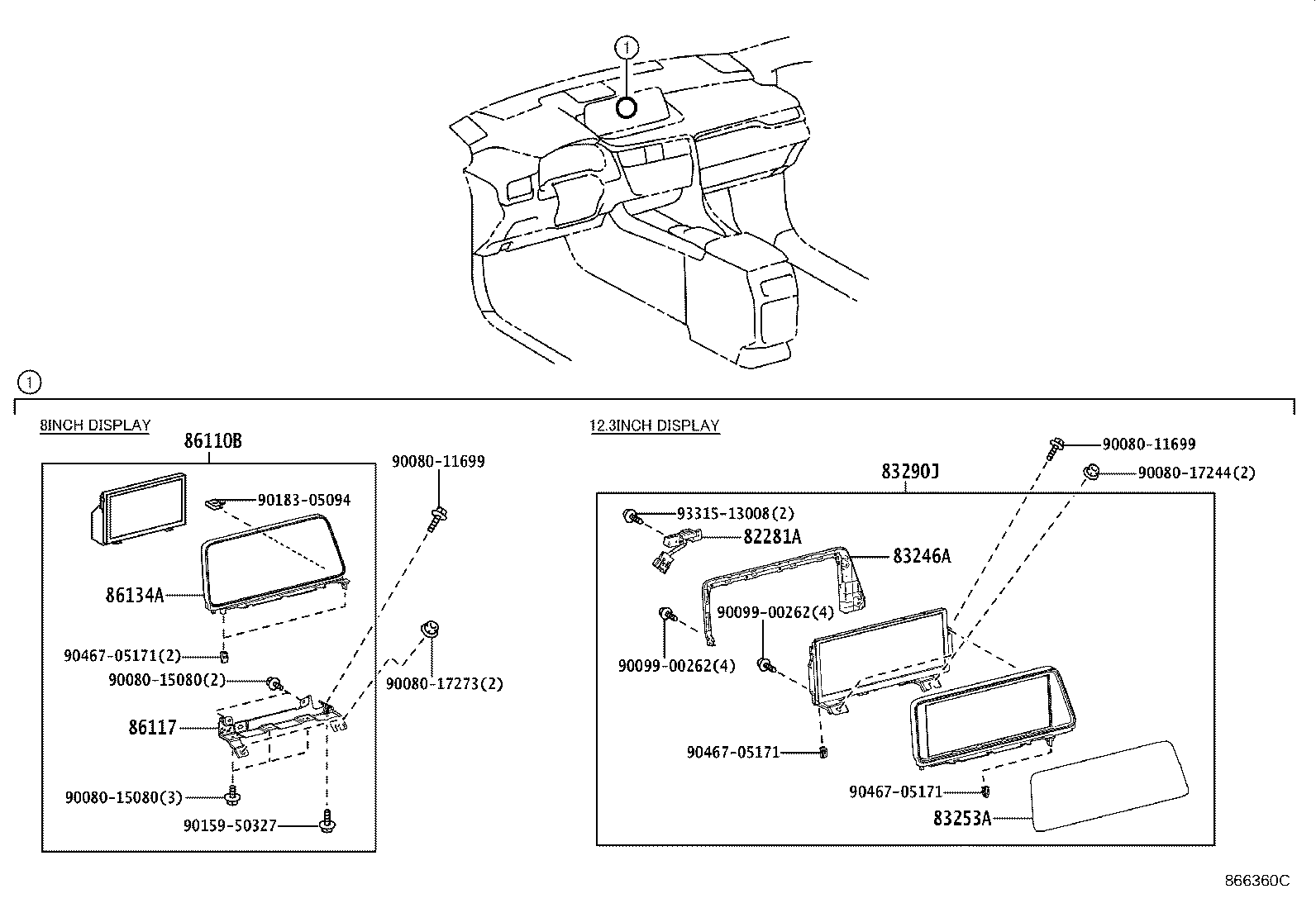

ILLUST NO. 2 OF 2(1510-1909)
DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82281A - WIRE, GAUGE | ||||
| 82281-48010 |
GGL2#,GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83246A - PANEL, MULTI INFORMATION DISPLAY | ||||
| 83268-48110 |
GGL2#,GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83253A - GLASS, ACCESSORY METER | ||||
| 83253-48110 |
GGL2#,GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83290J - METER ASSY, ACCESSORY | ||||
| 83290-48150 |
GGL2#,GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 83290-48151 |
GGL2#,GYL25 EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-0E020 |
GGL2#,GYL25 PIONEER,AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86110-0E020 |
GYL2# PIONEER,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86110-0E020 |
GGL2#,GYL2# PIONEER |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-0E020 |
GYL2# EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86117-0E020 |
GGL2#,GYL2# |
1 | ||
| 86117-0E020 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86134A - PARTS, MULTI-DISPLAY | ||||
| 86134-0E030 |
GGL2#,GYL25 AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY) |
1 | ||
| 86134-0E030 |
GGL2#,GYL25 |
1 | ||
| Common parts | ||||
| 90080-11699 | ||||
| 90080-15080 | ||||
| 90080-17244 | ||||
| 90080-17273 | ||||
| 90099-00262 | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 93315-13008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
